3.8" Super Bullet Marine Tweeter 120 Watts Rms 1" Aluminum 4-Ohm Vc

3.8" Super Bullet Marine Tweeter 120 Watts Rms 1" Aluminum 4-Ohm Vc

Regular price $77.94 USD
Regular price Sale price $77.94 USD
Sale Sold out
 More payment options

Marine Water Resistant 3.8” Super Bullet Tweeter 240W 1” Aluminum VC 4-OHM

DS18’s NXL-T1 is the ultimate solution for those who demand exceptional sound quality even in the harshest conditions. With its 100% waterproof construction, this super bullet tweeter is built to withstand any element, ensuring no damage or corrosion from water or moisture.
Designed for versatility, the NXL-T1 can be used with or without the included enclosure, providing added protection and peace of mind. Its compact size allows for easy mounting in various applications, making it suitable for 4x4 vehicles, marine systems, and motorcycles.
DS18’s NXL-T1 delivers crystal-clear highs with its 1" aluminum voice coil and 240W of MAX power handling. With a sensitivity rating of 103dB and a frequency response of 3KHz-20 KHz, you'll experience enhanced audio performance like never before.
Engineered with marine-grade materials and UV & salt protection, this tweeter is built to last. Its durable construction includes an ASA body material, Kapton voice coil former, and an aluminum diaphragm.
Upgrade your sound system with DS18’s NXL-T1 and enjoy worry-free sound even in the most demanding environments.

  • 3.8" Marine Super Bullet Tweeter
  • RMS Power: 120 Watts(240 Watts Peak)
  • Impedance: 4 Ohm ~ 103dB
  • Ferrite Magnet
  • Water Resistant IP36
  • Pair

KEY FEATURES

Super Bullet Marine Tweeter

Super Bullet Marine Tweeter

3.8

3.8" DIAMETER

4 OHM

4 OHM

aluminum DIAPHRAGM

aluminum DIAPHRAGM

1

1" VOICE COIL DIAMETER

FERRITE MAGNET

FERRITE MAGNET


SPECS

SKU
NXL-T1
Nominal Diameter
3.75" / 95.2mm
Nominal Impedance
4 OHMS
RMS Power Handing
60W
Maximum Power Handing
240W
Sensitivity (1w/1m)
103dB
Frequency Response
3Khz-20KHz
Recommended Hi Pass Crossover
2 KHz


SPECS

Voice Coil Diameter
1" /25.4 mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Basket Material

Magnet Weight
8 Oz


THIELE & SMALL PARAMETERS

Vas

Xmax

Fs

Qms

Qes

Qts

Re

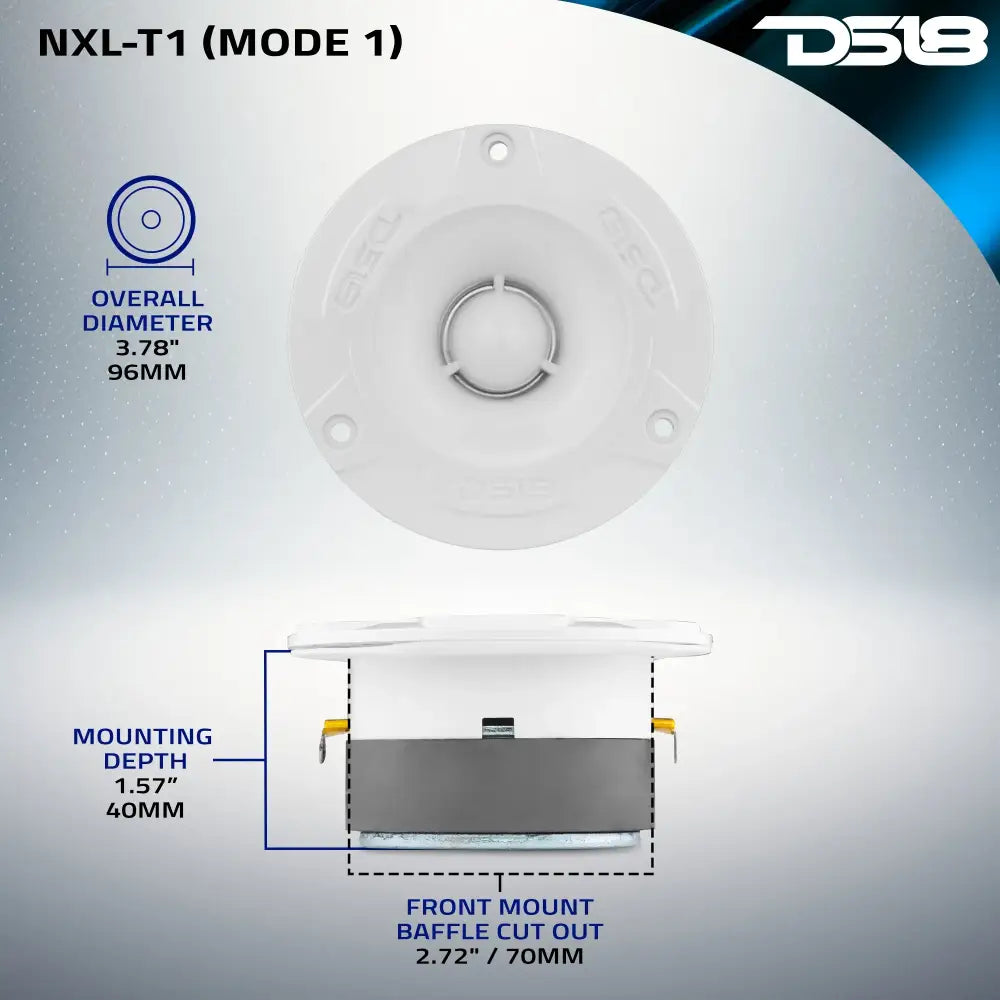

MEASUREMENTS

Overall Diameter
3.78" / 96 mm
Front Mount Baffle Cutout

Mounting Depth
1.57" / 40 mm
Overall Depth
2.26" / 57.4mm
