APEXX Adjustable Tie Rod - Can-Am Defender

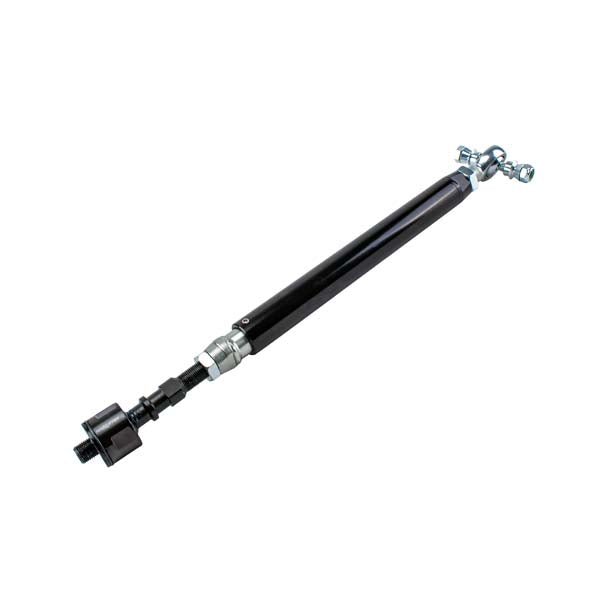

The High Lifter APEXX Adjustable Tie Rod assembly offers a highly adaptable solution that can accommodate a wide range of tie rod lengths. The main body of the tie rod has been engineered so it can be adjusted to fit factory length rods and then telescopes with an additional 7-1/2” of adjustability to fit most aftermarket accessories. Forward arms, big lift kits, long travel kits, or factory arms are no problem for this new adjustable tie rod. It also comes with heavy duty inner tie rods at the rack & pinon and heavy duty heim joints and hardware are located at the hub end of the tie rod.

Patented Technology

High Lifter’s HD Tie Rod versatile range of adjustment makes it a flexible stock addition. The tie rod assemblies are highly adjustable to fit most of the straight tie rod lengths and styles in the market.

The unique adjustable design uses a heavy duty threaded inner rod inside of a 1-1/4”- 7mm wall outer rod. The inner rod a has a locking channel so that the when the desired length is achieved you can lock the rod in place with out ¼”-28 set screws.

Increased Versatility

With a versatile/adjustable tie rod solution, it eliminates the overhead cost or need for dealers and repair shops to keep multiple lengths and styles on hand. The additional 7-1/2” of adjustability in the rod and the fine adjustment at the heim joints make this the best solution for HD Tie Rod needs.

Increased Strength

1-1/4” Diameter outer bar, heavy-duty inner tie rod, and HD Heim Joints help to make this one of the strongest tie rods on the market. With increased strength and adjustability, you now have the confidence to take on extreme conditions.

Features:

The inner tie rod is made up of 24.5mm (15/16”) diameter 7.5mm wall DOM-tubing
The inner also uses 5/8”-11 high-strength threaded rod for fast adjustment
The outer tie rod is 32mm (1-1/4”) diameter 7mm wall DOM
Uses 2ea ¼”-28 set-screws to lock the rods in place once they have been set to the desired length
Powder coated and zinc plated for superior scratch and corrosion resistance

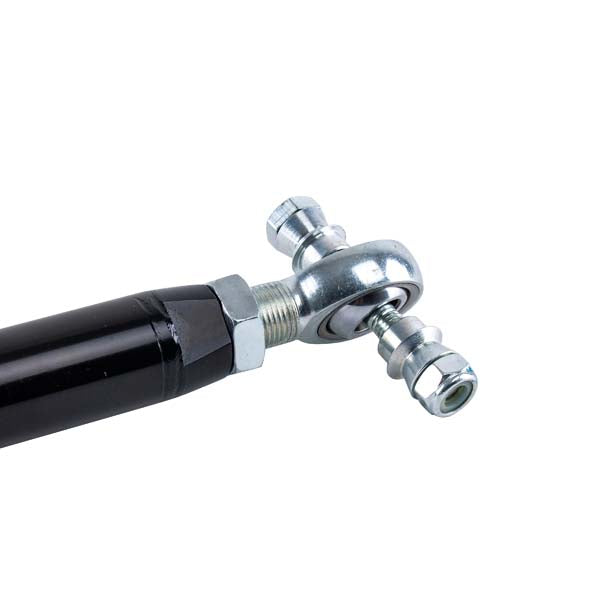

Comes with upgraded heim-end to replace the outer factory tie rod ends

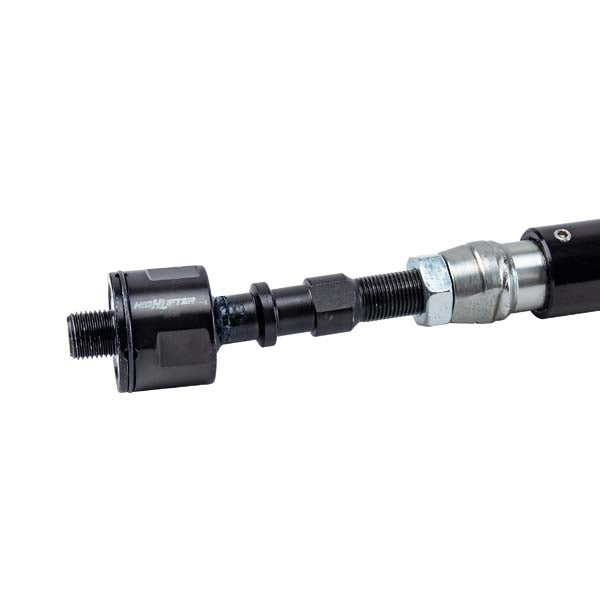

Also includes two heavy duty inner tie rod end that connect to the rack and pinion
Adjustability of 7-1/2” minimum length to maximum length
Patented design (US Patent Number 11,364,759) 2016 Can-Am Defender HD10 CAB
2022 Can-Am Defender HD9
2022 Can-Am Defender HD9 DPS
2022 Can-Am Defender HD9 XT
2022 Can-Am Defender HD9 CAB DPS
2022 Can-Am Defender HD10 XMR
2022 Can-Am Defender MAX HD9
2022 Can-Am Defender MAX HD9 DPS
2022 Can-Am Defender MAX HD9 XT
2022 Can-Am Defender MAX HD10 Lone Star
2022 Can-Am Defender MAX HD10 XMR
2022 Can-Am Defender PRO HD10 Lone Star
2021 Can-Am Defender PRO HD10 Lone Star
2023 Can-Am Defender HD10 6x6 DPS
2023 Can-Am Defender HD10 6x6 XT
2023 Can-Am Defender HD10 CAB DPS Limited
2023 Can-Am Defender HD10 CAB XT Limited 6x6
2023 Can-Am Defender HD10 XMR
2023 Can-Am Defender HD10 XMR w/Doors
2023 Can-Am Defender HD10 XT
2023 Can-Am Defender HD9
2023 Can-Am Defender HD9 CAB DPS
2023 Can-Am Defender HD9 DPS
2023 Can-Am Defender MAX HD10 CAB XT Limited
2023 Can-Am Defender MAX HD10 Lone Star
2023 Can-Am Defender MAX HD10 Lone Star CAB
2023 Can-Am Defender MAX HD10 XMR
2023 Can-Am Defender MAX HD10 XMR w/Doors
2023 Can-Am Defender MAX HD10 XT
2023 Can-Am Defender MAX HD9
2023 Can-Am Defender MAX HD9 DPS
2023 Can-Am Defender PRO HD10 DPS
2023 Can-Am Defender PRO HD10 Limited
2023 Can-Am Defender PRO HD10 XT
2023 Can-Am Defender HD10 Cab XT
2023 Can-Am Defender HD10 DPS
2023 Can-Am Defender HD10 Limited
2023 Can-Am Defender HD9 XT
2023 Can-Am Defender Max HD10 DPS
2023 Can-Am Defender Max HD10 Limited
2023 Can-Am Defender MAX HD9 XT
2023 Can-Am Defender HD10 6x6 Limited
2017 Can-Am Defender HD10 CAB
2018 Can-Am Defender HD10 CAB XT
2018 Can-Am Defender HD10 XMR
2018 Can-Am Defender Lone Star MAX
2019 Can-Am Defender HD10 XMR
2019 Can-Am Defender HD10 CAB
2019 Can-Am Defender MAX HD10 Lone Star
2019 Can-Am Defender HD10 MAX XMR
2020 Can-Am Defender HD10 XMR
2020 Can-Am Defender HD10 CAB XT
2020 Can-Am Defender MAX HD10 Lone Star
2020 Can-Am Defender MAX HD10 XMR
2020 Can-Am Defender HD10 LTD CAB
2021 Can-Am Defender HD10 LTD CAB
2021 Can-Am Defender HD10 XMR
2021 Can-Am Defender MAX HD10 Lone Star
2021 Can-Am Defender MAX HD10 XMR Warning WARNING: This product can expose you to chemicals including Chromium, which is known in the State of California to cause cancer and birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov
