Marine and Powersports Headunit 3" Color TFT screen , 2 Zones, 4 volts Output, BT, RDS 4 X 50 Watts
Marine and Powersports Headunit 3" Color TFT screen , 2 Zones, 4 volts Output, BT, RDS 4 X 50 Watts

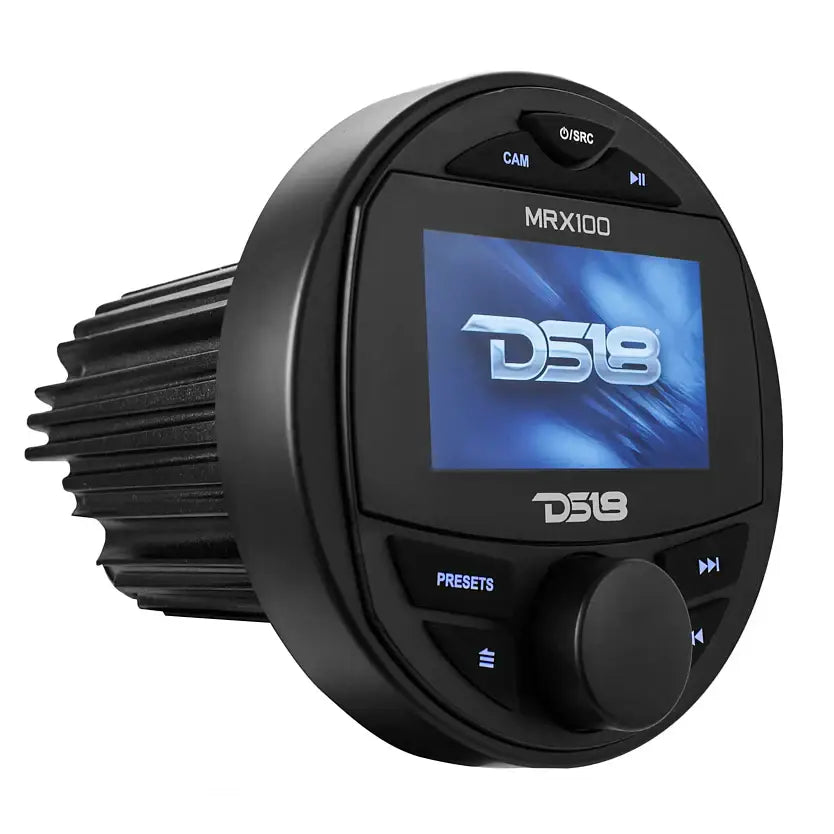

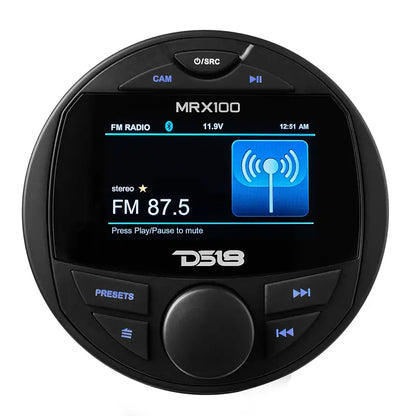

DS18’s HYDRO MRX100 is the all-in-one marine head unit, designed to take on any challenge and exceed expectations.
Connectivity is key, and the MRX100 delivers. Featuring enhanced Bluetooth connectivity with an extended range, you can easily play music from your phone or any Bluetooth source. Additionally, USB and AUX inputs allow you to connect any device of your choice. With over 37 preset radio stations available, you can enjoy your favorite tunes without the need for an external device.
Not only does the MRX100 offer exceptional audio quality, but it also provides full control over your sound experience. Take advantage of precise sound settings to adjust bass, treble, balance, fade, EQ, loudness, and Subwoofer crossover effortlessly. The vibrant LCD display with RGB keys ensures easy readability while adding a touch of personalization to match your mood or color scheme.
Built with durability in mind, the MRX100 is engineered to withstand the harshest conditions that marine, golf-cart, and off-road environments can throw at it. The MRX100 allows you to view your vehicle's rear camera directly through the receiver.

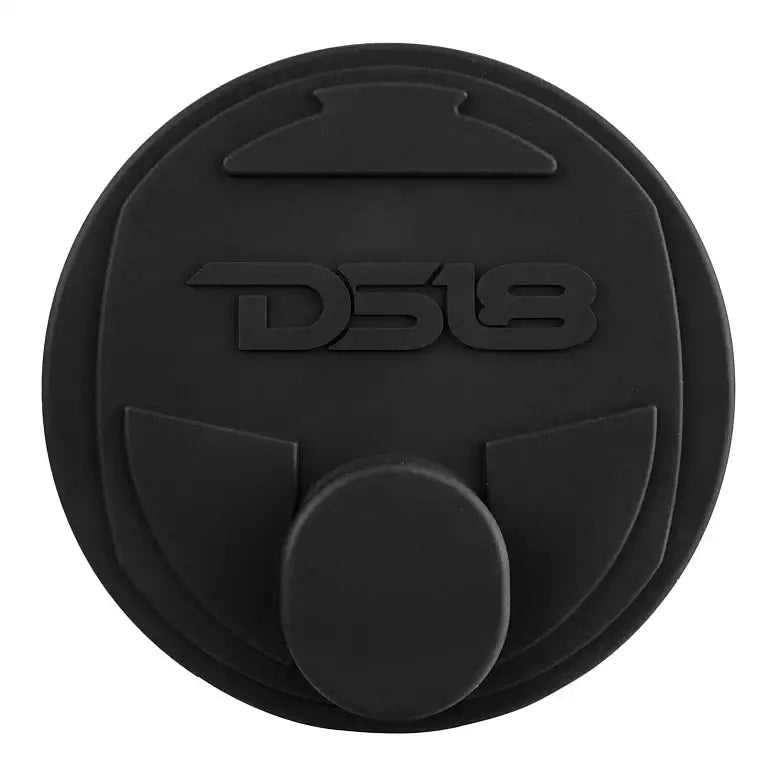

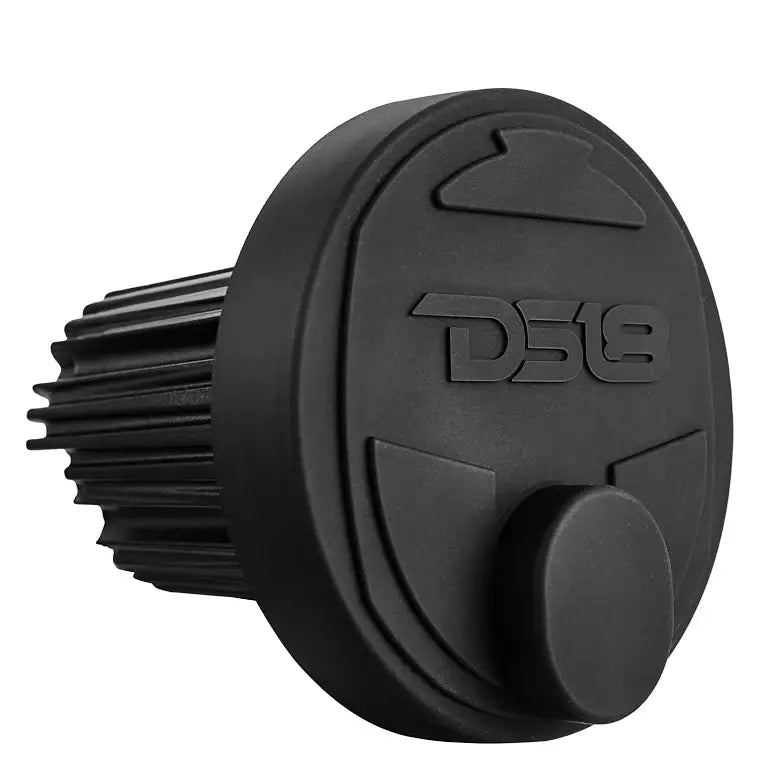

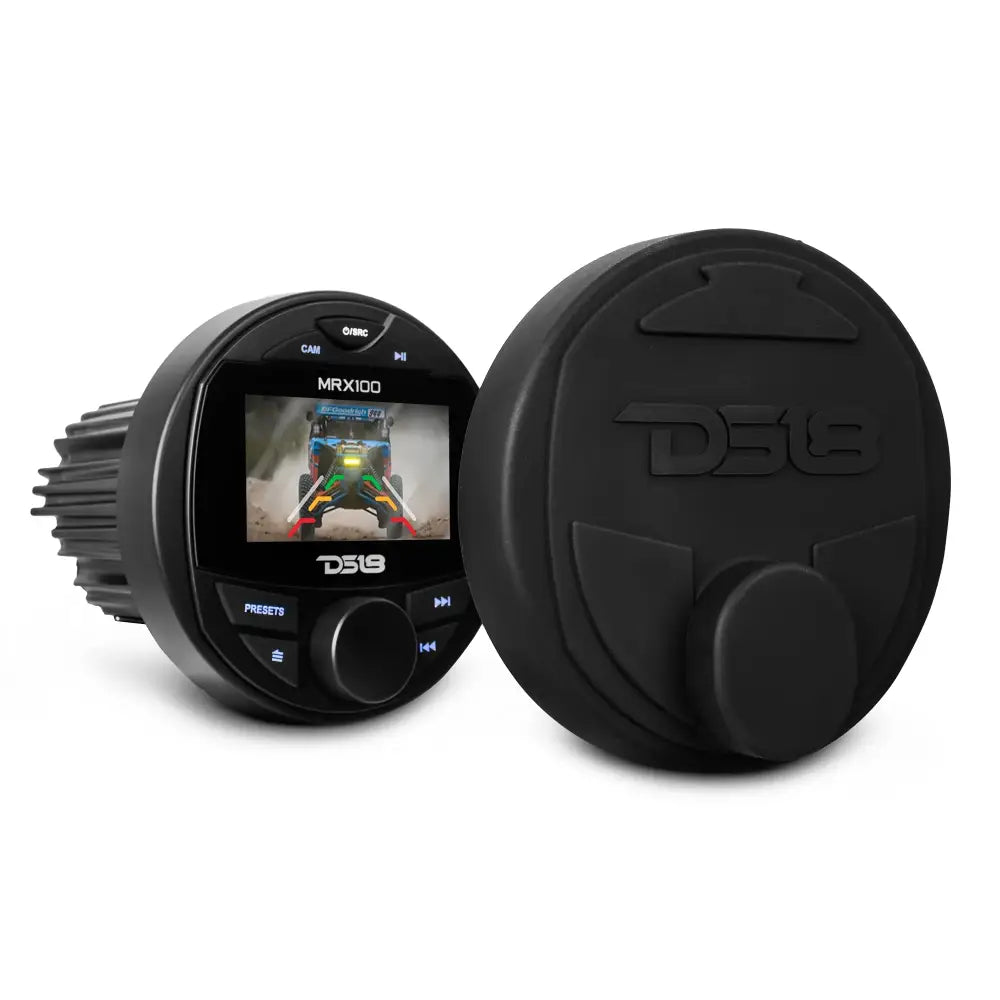

Equipped with a Gorilla Glass screen and an IP65 waterproof rating, this marine head unit was built to go against the elements. To top it off, it comes with a silicone cover designed to provide extra protection when the unit is not in use. Additional features include a voltmeter and low voltage alert to optimize all connected equipment.
It's time to take control of your sound and enjoy the ultimate audio experience on the water, off-road, or wherever adventure takes you.
- Marine and Powersports Head Unit
- 3" TFT RGB LCD Display
- USB ~ Bluetooth ~ AUX ~ Camera

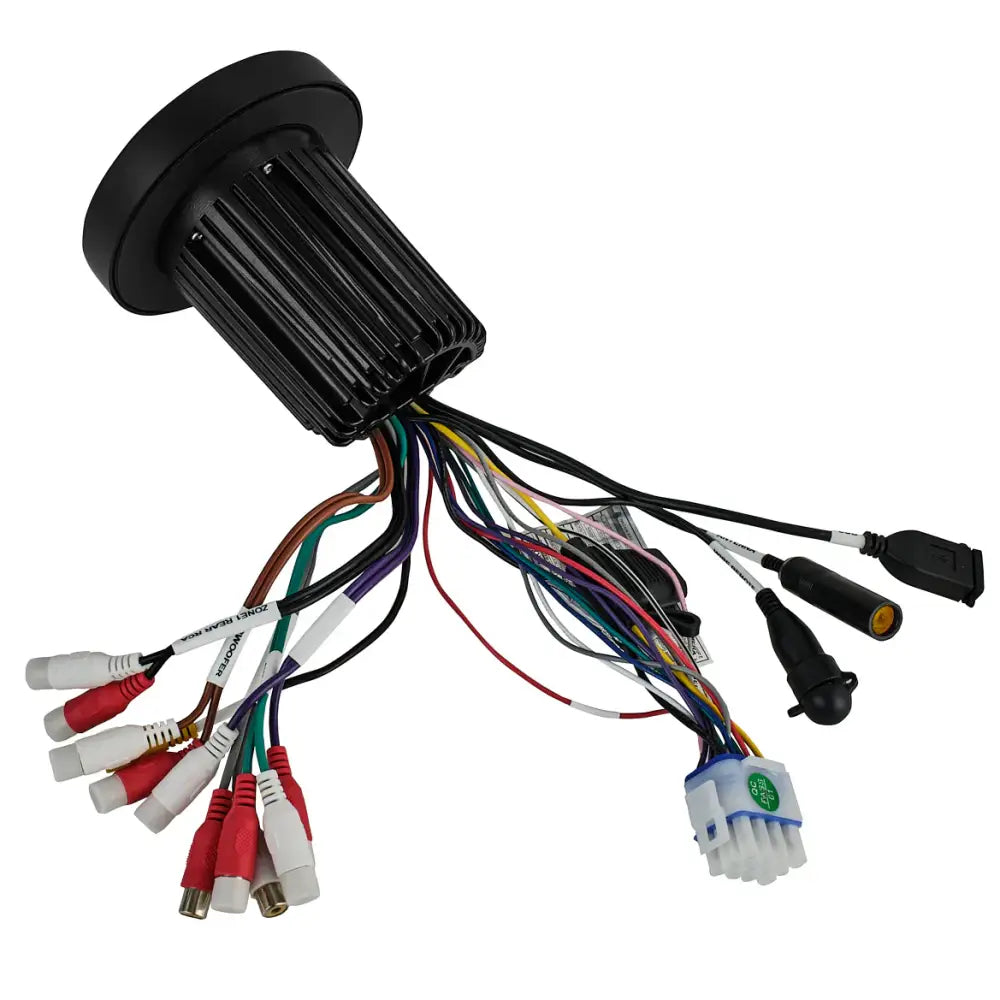

- 2 Zones ~ F/R/SUB RCA
- 4 X 50 Watts
- Water Resistant IP65 / Silicone cover included
KEY FEATURES
2 ZONES
IP65 RATING
3" VIDEO TFT RGB LCD SCREEN
BLUETOOTH RECEIVER
VIEW CAMERA INPUT
WIRED REMOTE CONTROL INPUT
TECHNICAL DATA
DOWNLOAD THE USER MANUAL
GENERAL SPECIFICATIONS
SKU
MRX100
Operating Voltage
10.5 – 16 Volts
Current Drain
15 Ampere / (Max)
Low Voltage Warning Alert
YES
Waterproof Rating
IPX6
UV/Salt Protection
Yes
Buttons
Rubber + RGB Blacklit (Blue Color)
Display
Screen Panel
Gorilla Glass with OCA Full Bonding
Backlight
LED
AUDIO
RMS
4 X 18W @ 4 ohm (14.4v)
RMS
4 X 25W @ 4 ohm (14.4v)
MAX
4 X 50W @ 2 ohm (14.4v)
Minimum Load
2 ohm Stable per Channel
Frequency Response
20Hz to 20KHz
RCA Pre-Out Voltage
4 Volts
Output Impedance
500 ohm
Equalizer
2 Bands/ Bass 100Hz / ±10dB / Treble 10Khz / ±10dB
Presets
YES (S-Bass / Vocal / Powerful / Clarity)
Subwoofer Control
Level (-10 to +10)
Audio Zones
2 Zones (Zone 1: Front R+L / Zone 2: R+L)
Independent Zone Control
Yes (Level/Tone)
Audio Input
L+R RCA (Aux Input)
TUNER

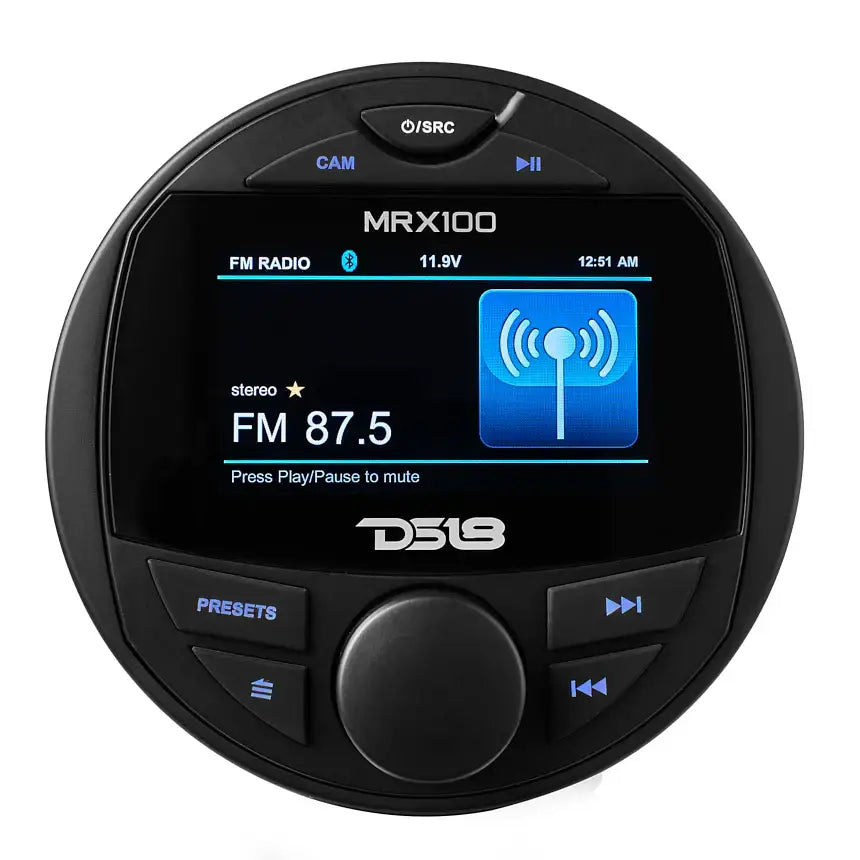

FM Frequency Range
87.5 - 107.9 MHz
AM Frequency Range
530 - 1710 KHz

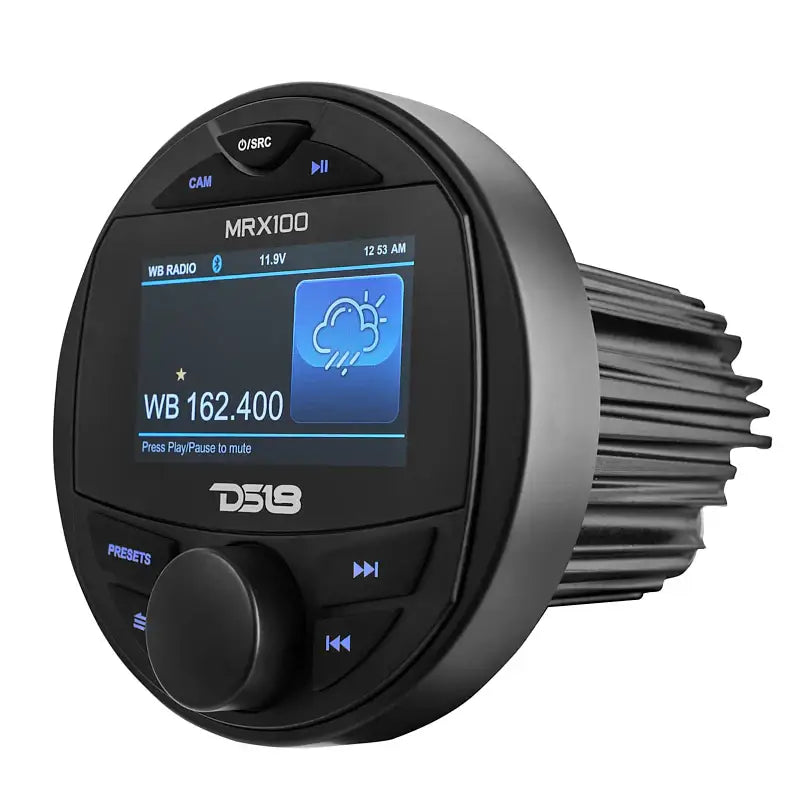

Weather Band
162.40 - 162.55 MHz
NOAA Weather Band
YES
Tuner Presets
18 FM / 12 AM / 6 WB
Radio Data System
YES (AF/TA/NEWS)
IF
10.7MHz (FM), 450KHz (AM)
Sensitivity
4µV (FM), 36dBuV. (AM)
Signal To Noise Ratio
30dB FM
Stereo Separation
25 dB
CONNECTIVITY
BT Version
5.0 + EDR
Audio Streaming
A2DP
USB Compatibility
v2.0
USB Capacity
64 Gb Max
USB Charge Capacity
2.1 Amp
Audio Files Compatibility
MP3, WMA
Remote Control
Wired 3.5mm Jack Input (Compatible with MXRC)
MEASUREMENTS
Product Weight
2 lbs
Product Dimensions
6 x 6 x 7.75
M/C Weight
28 lbs
M/C Dimensions
18.5 x 12.75 x 16.5
