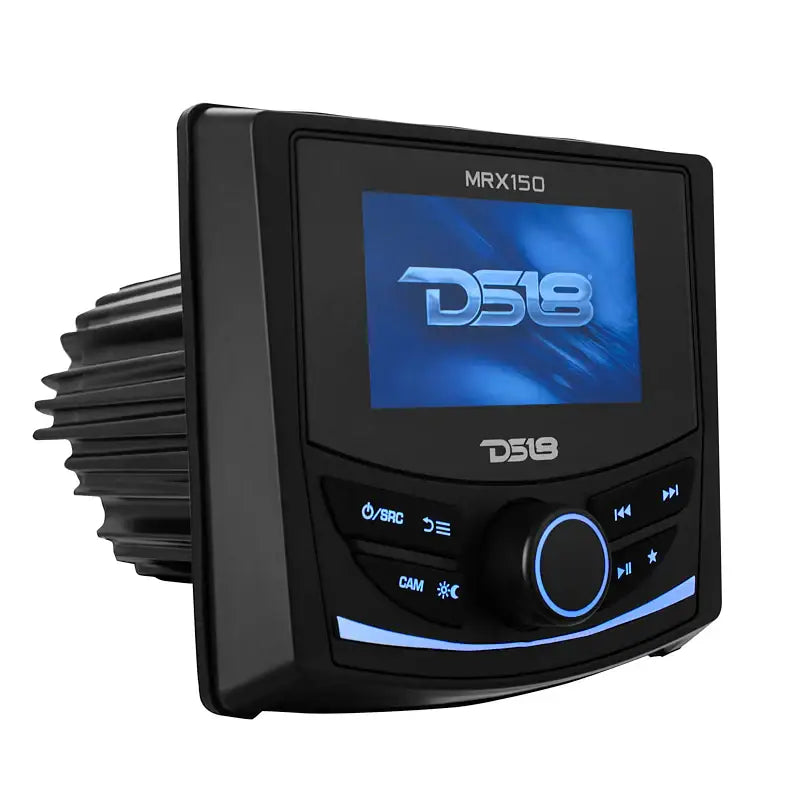

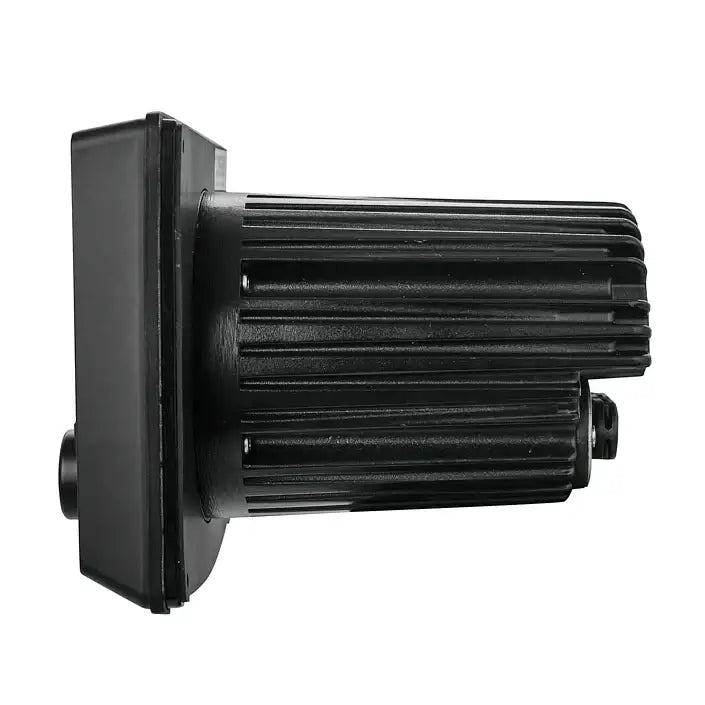

Marine and Powersports Headunit 3" Color TFT screen , 2 Zones, 4 volts Output, BT, RDS 4 X 50 Watts

Transform your Marine and Powersports vehicle into an audio paradise with the DS18 HYDRO MRX150!
Equipped with a plethora of invaluable features, the MRX150 ensures that you can enjoy all your favorite tunes whenever and wherever you desire. With its AM/FM/WB Tuner boasting 37 presets (18FM / 12AM / 7WB), Bluetooth v5.0 for superior audio streaming, USB Port, and AUX input, this receiver provides unparalleled connective versatility.

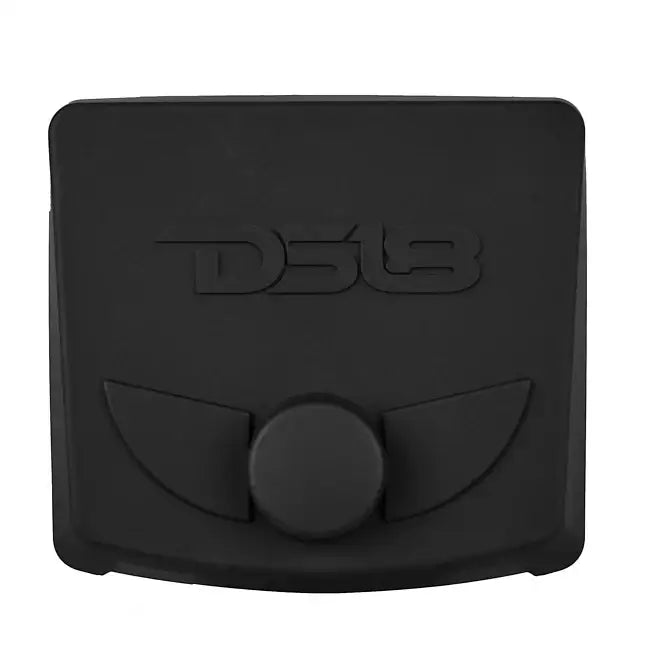

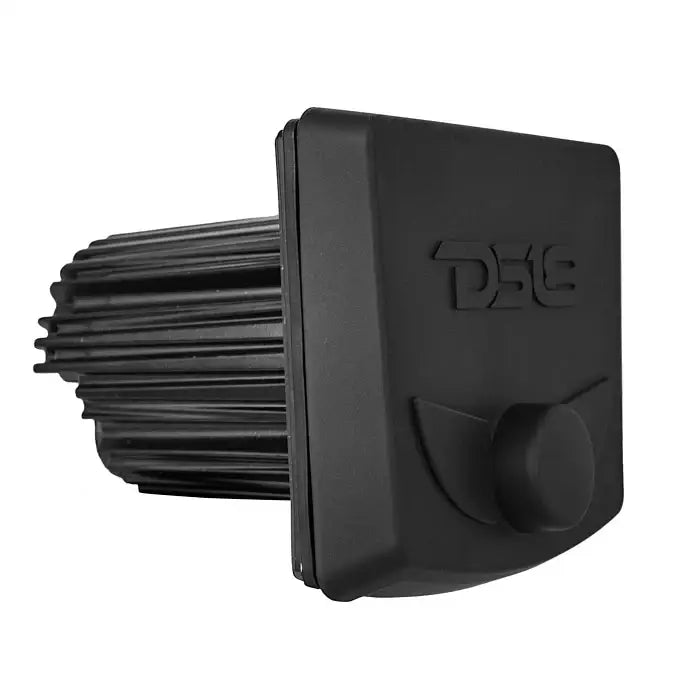

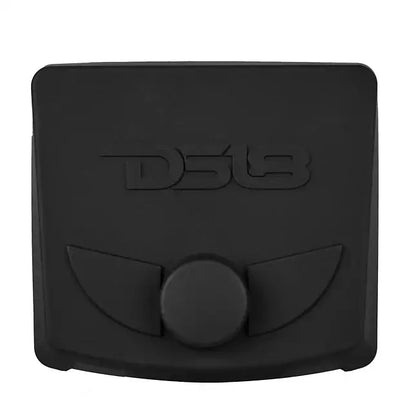

Designed to withstand the harshest elements, the MRX150 features a Gorilla Glass screen with OCA Full Bonding for exceptional durability. With an impressive waterproof rating of IP65 safeguarding it against powerful water streams from any angle, it’s also fortified against UV rays and corrosion from salt exposure, ensuring longevity even in harsh marine environments. To further protect your investment, the MRX150 comes with a silicone cover for added durability when not in use. Plus, the built-in voltmeter lets you monitor your vehicle's battery level accurately.

Take full control of your audio system with the MRX150's 2-Band equalizer, allowing you to fine-tune the bass and treble frequencies to perfection. Enhance your listening experience further by dividing your audio into two zones with independent level and tone control, granting you ultimate customization.

Delivering powerful sound output, the MRX150 offers 4CH x 25W Continuous Power Output at 2 ohms, perfect for driving entry-level speakers. The PRE-AMP outputs deliver a maximum of 4 volts across all seven channels, guaranteeing crystal-clear sound for your amplifiers.

Take full command of your audio system today with DS18’s MRX150!

• Marine and Powersports Head Unit
• 3" TFT RGB LCD Display
• USB ~ Bluetooth ~ USB ~ Camera

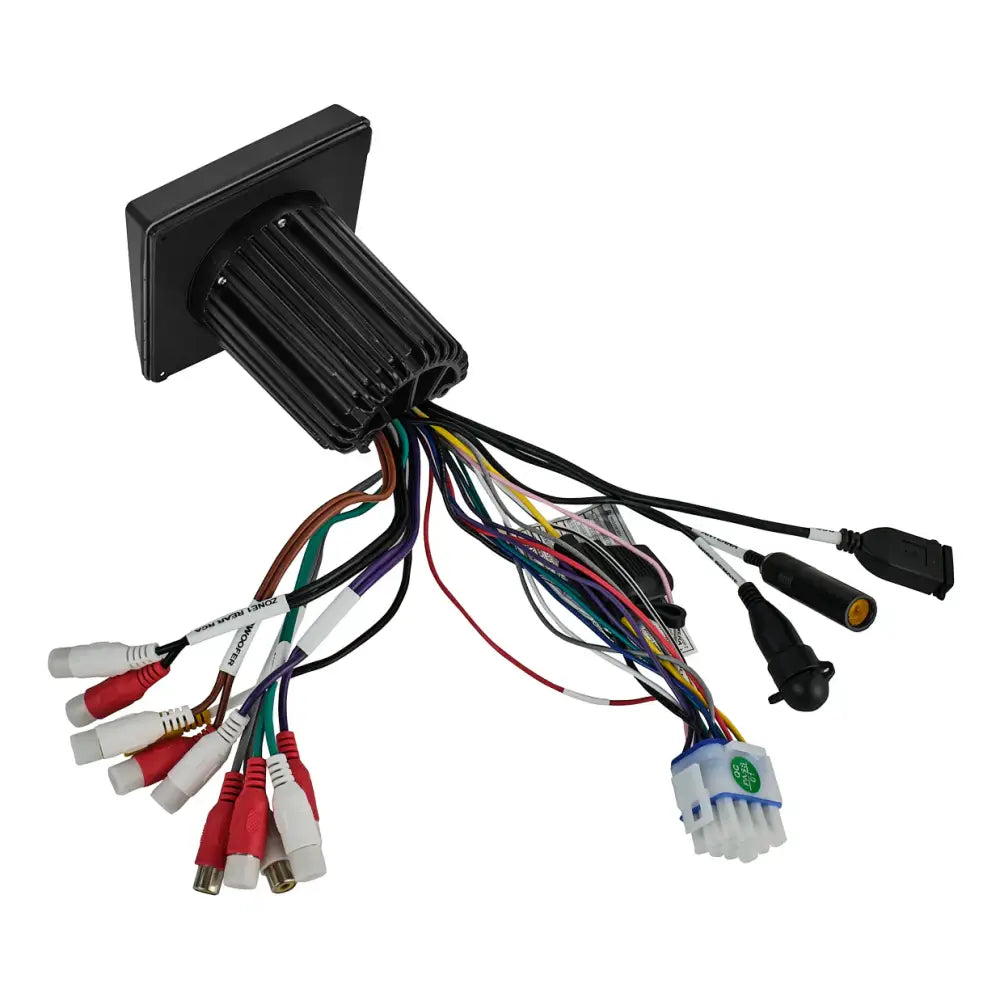

• 2 Zones ~ F/R/SUB RCA
• 4 X 50 Watts

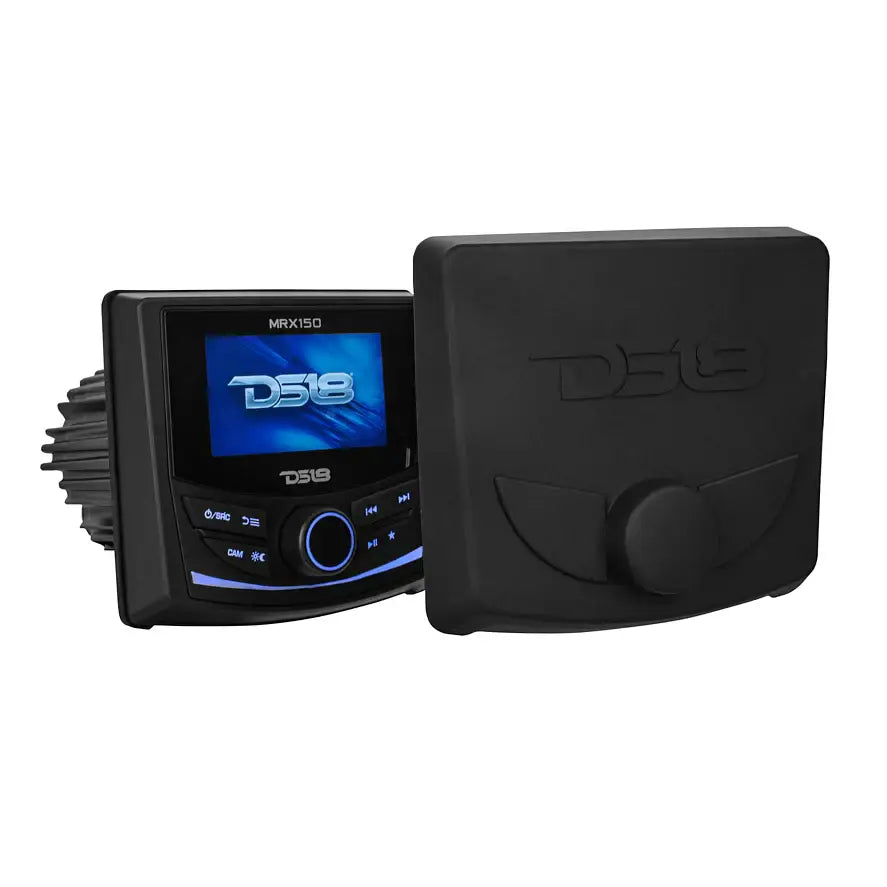

• Water Resistant IP65 / Silicone Cover Included

2 ZONES

IP65 RATING

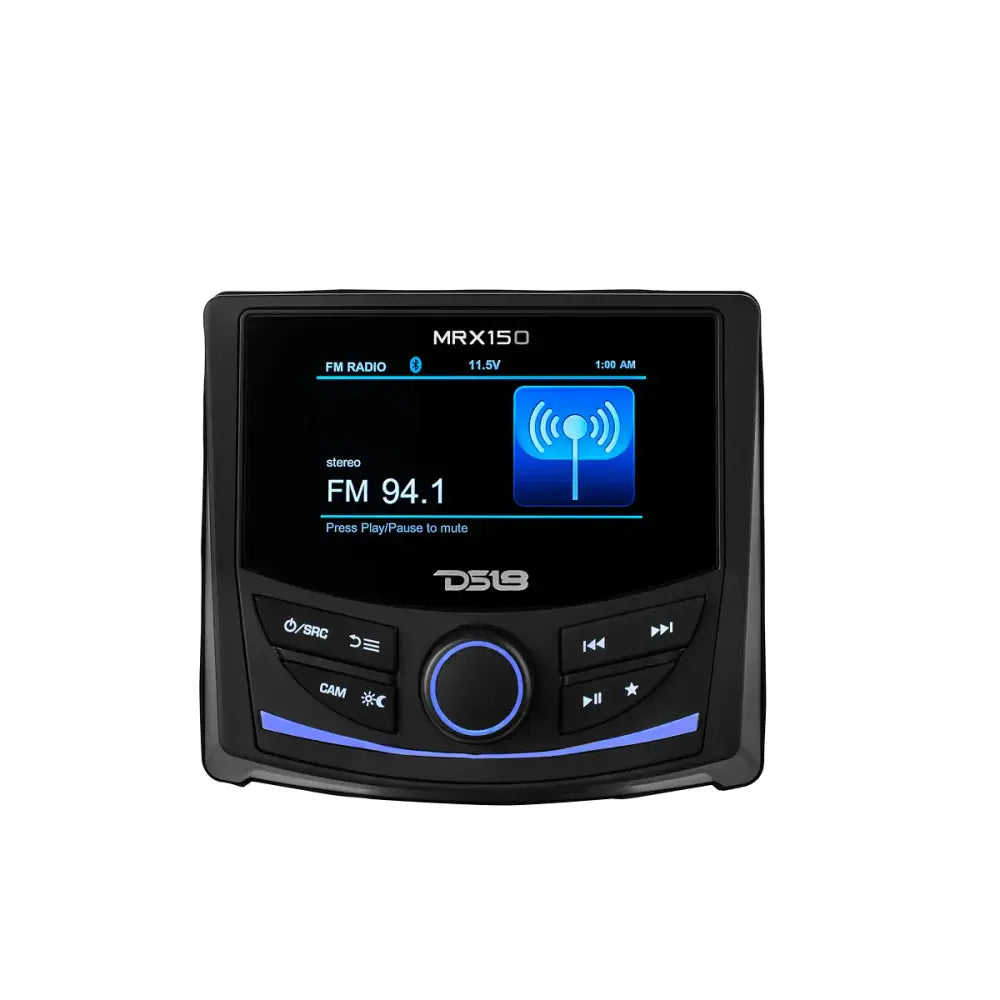

3" VIDEO TFT RGB LCD SCREEN

BLUETOOTH RECEIVER

VIEW CAMERA INPUT

WIRED REMOTE CONTROL INPUT

TECHNICAL DATA

DOWNLOAD THE USER MANUAL

GENERAL SPECIFICATIONS

SKU
MRX150
Operating Voltage
10.5 – 16 Volts
Current Drain
15 Ampere / (Max)
Low Voltage Warning Alert
YES (< 10.8V)
Waterproof Rating
IP65 / Silicone Cover Included
UV/Salt Protection
YES
Buttons
Rubber + RGB Backlit (Blue Color)

DISPLAY

Screen Panel
Gorilla Glass with OCA Full Bonding
Type
TFT LCD With IPS

AUDIO

RMS
4 x 18W @ 4ohm (14.4v)
RMS
4 x 25W @ 2ohm (14.4v)
MAX
4 x 50W @ 2ohm (14.4v)
Minimum Load
2 ohm Stable per Channel
Frequency Response
20Hz to 20KHz
RCA Pre-Out Voltage
4 Volts
Output Impedance
500 ohm
Equalizer
2 Bands / Bass 100Hz ±10dB / Treble 10Khz ±10dB
Presets
YES (S-Bass / Vocal / Powerful / Clarity)
Subwoofer Control
Level / (-10 to +10)
Audio Zones
2 Zones (Zone 1: Front R+L, Rear R+L / Zone 2: R+L)
Independent Zone Control
YES (Level/Tone)
Audio Input
L+R RCA (Aux Input)

TUNER

FM Frequency Range
87.5 – 107.9 MHz
AM Frequency Range
162.40 – 162.55 MHz
NOAA Weather Band
YES
Tuner Presets
18 FM / 12 AM / 6 WB
Radio Data System
YES (AF/TA/NEWS)
IF
10.7MHz (FM), 450KHz (AM)
Sensitivity
4µV (FM), 36dBuV (AM)
Signal to Noise Ratio
>30dB (FM)
Stereo Separation
>25dB

CONNECTIVITY

BT Version
5.0 + EDR
Audio Streaming
A2DP
USB Compatibility
v2.0
USB Capacity
64 Gb Max
USB Charge Capacity
2.1 Amp
Audio Files Compatibility
MP3, WMA
Remote Control
Wired 3.5mm Jack Input (Compatible with MXRC)

MEASUREMENTS

Product Weight
2.3 lbs
Product Dimensions
6.25 x 6 x 8
M/C Weight
19.5 lbs
M/C Dimensions
13 x 13 x 17
