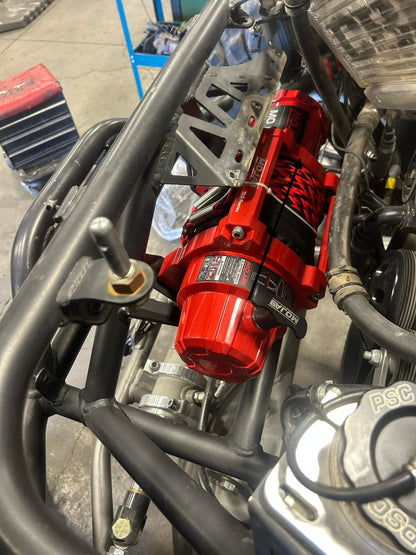

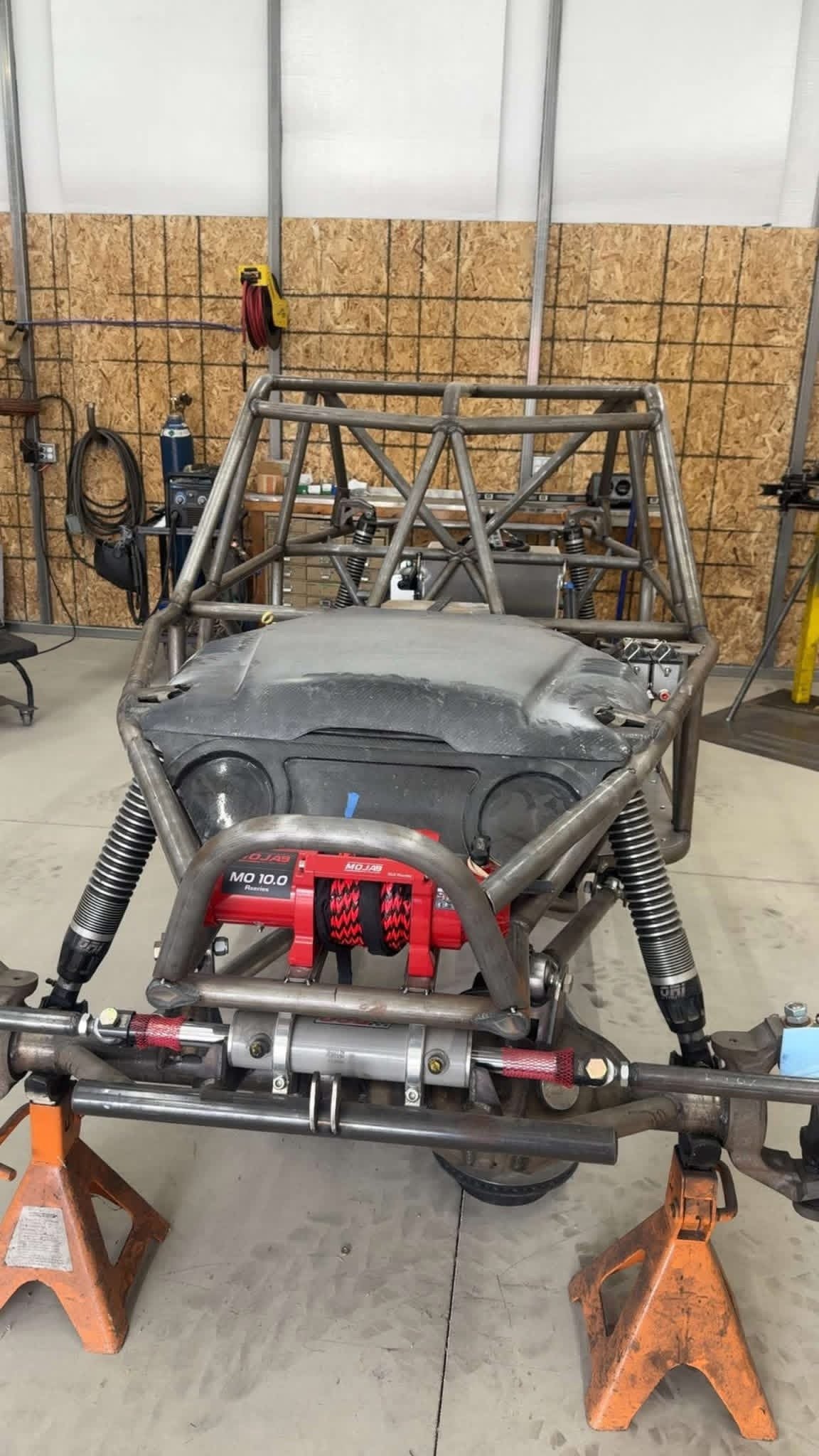

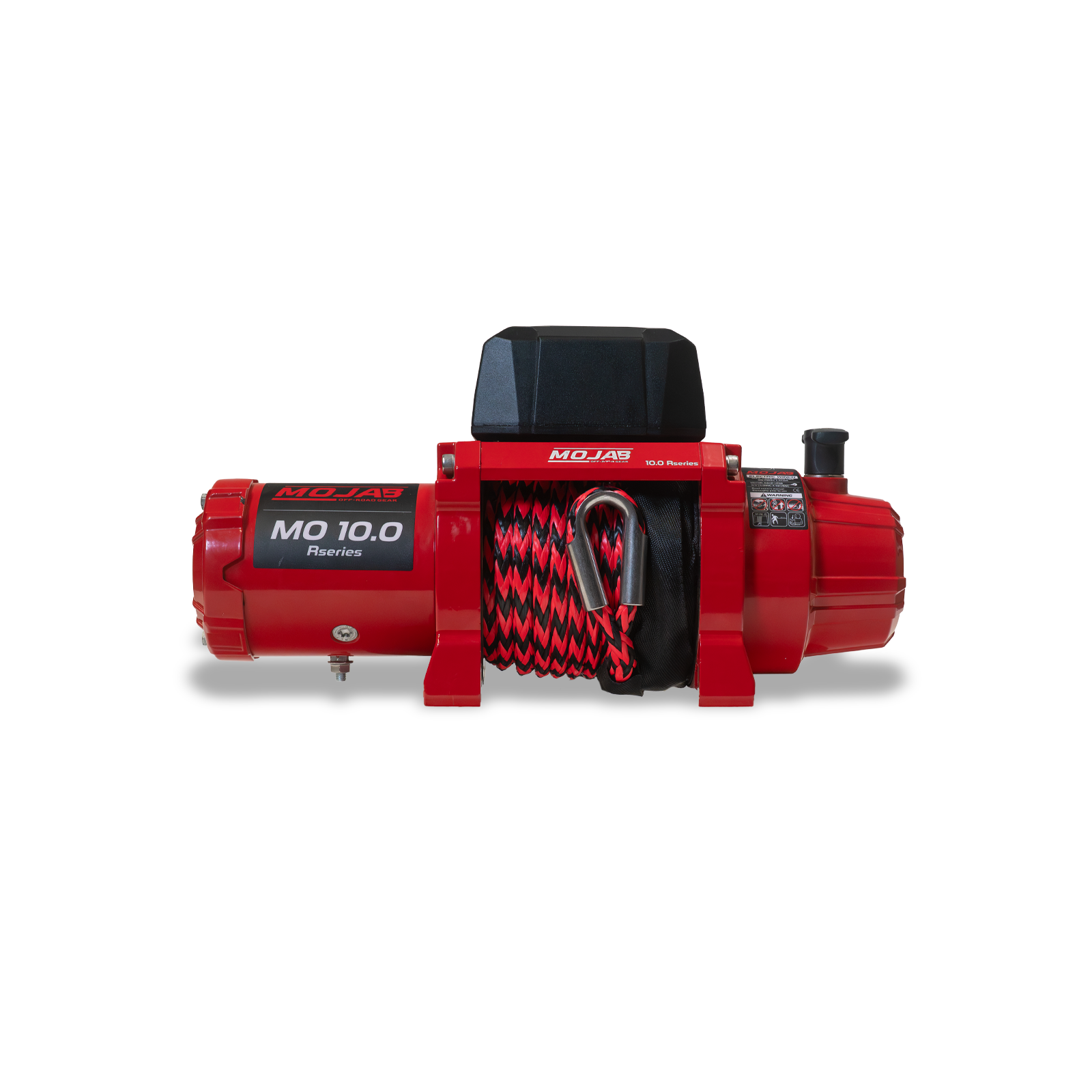

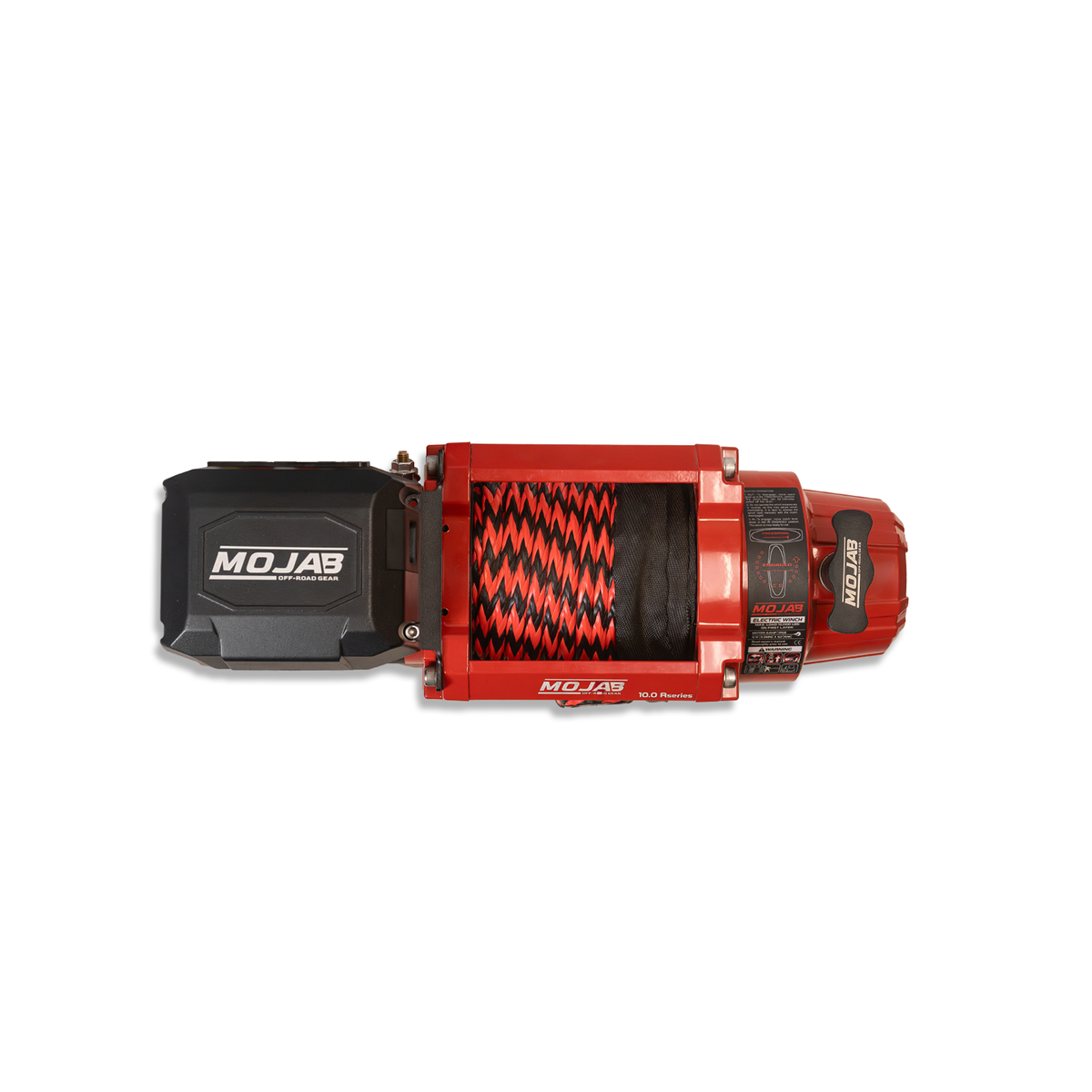

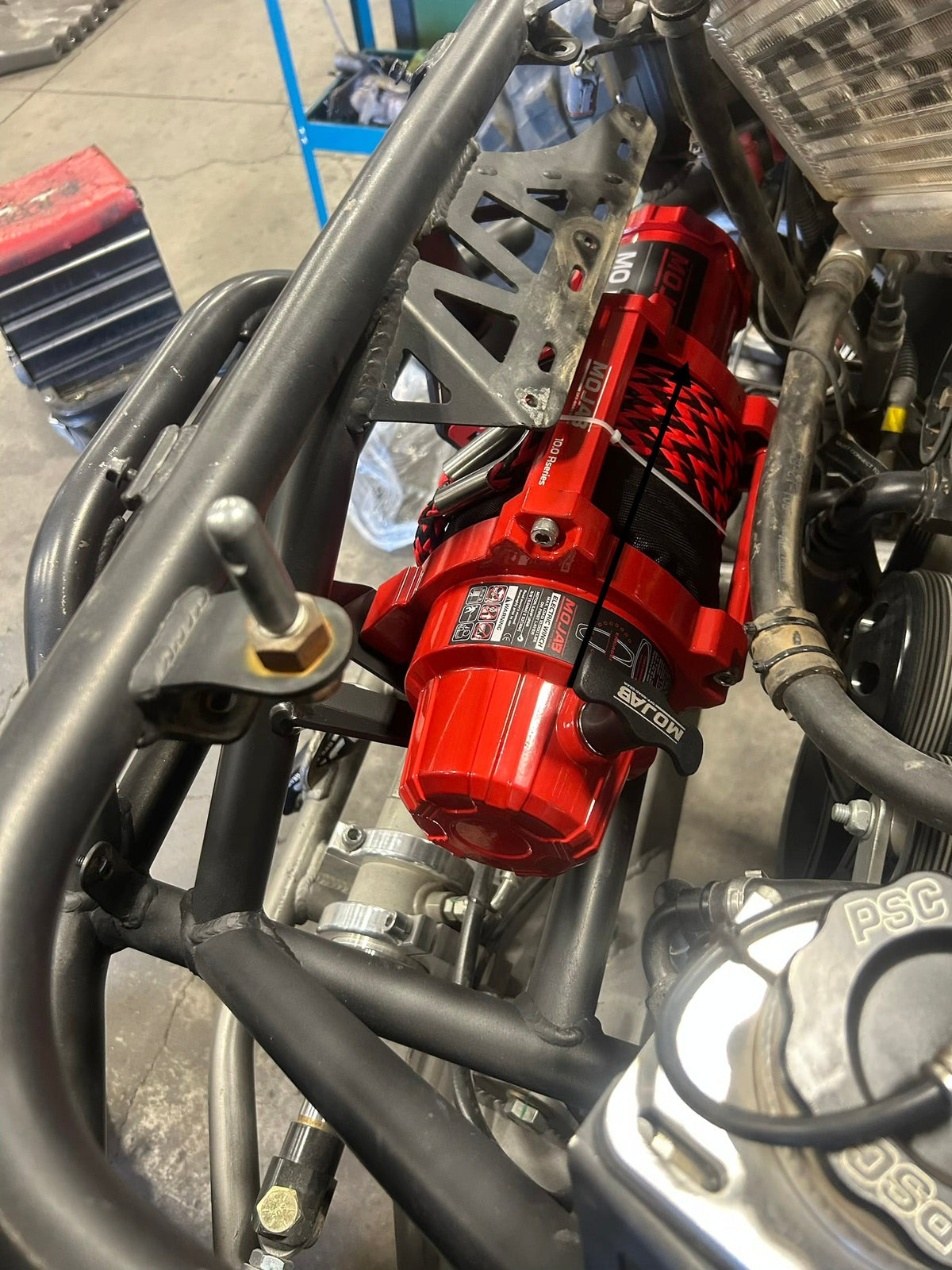

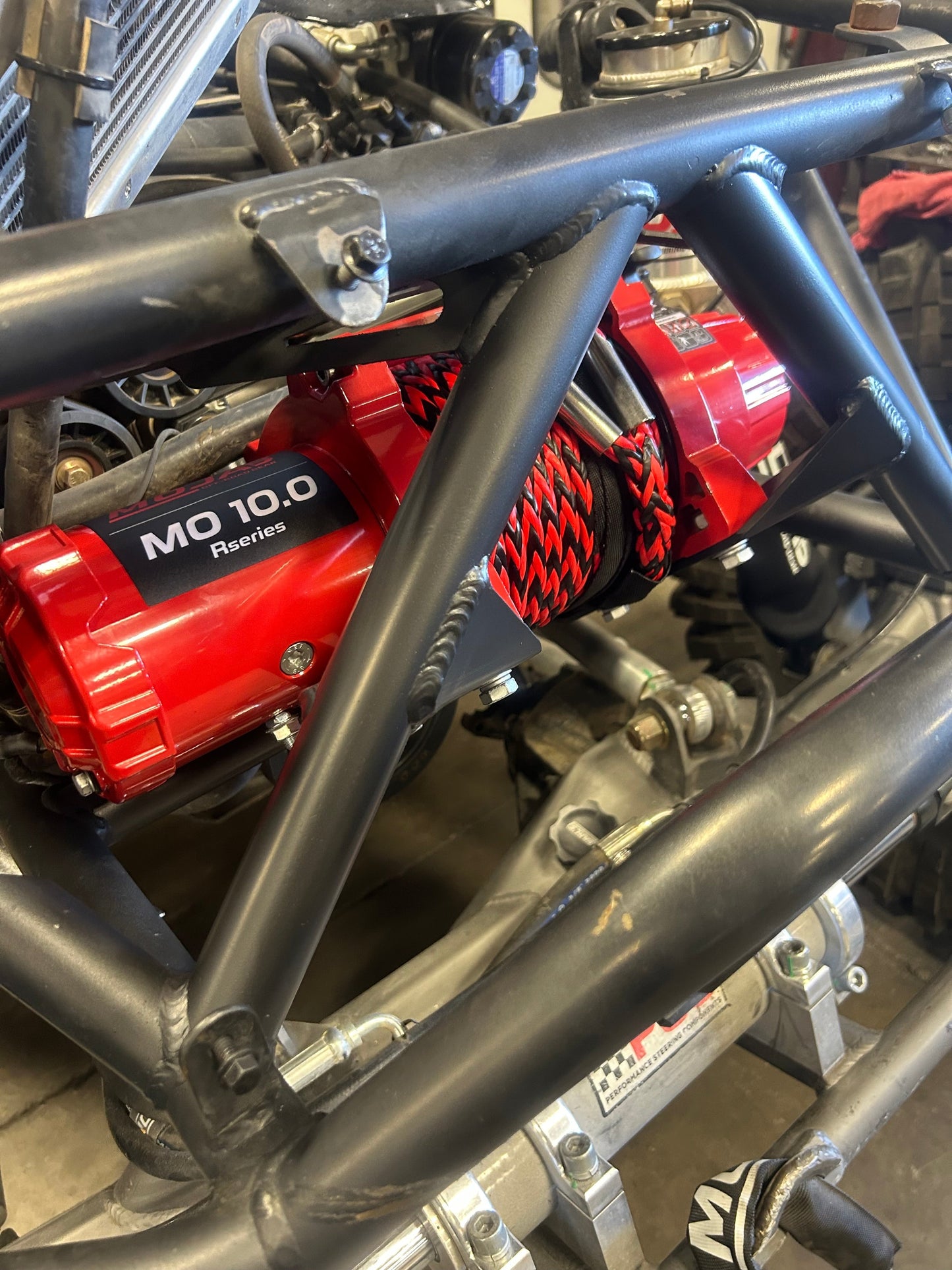

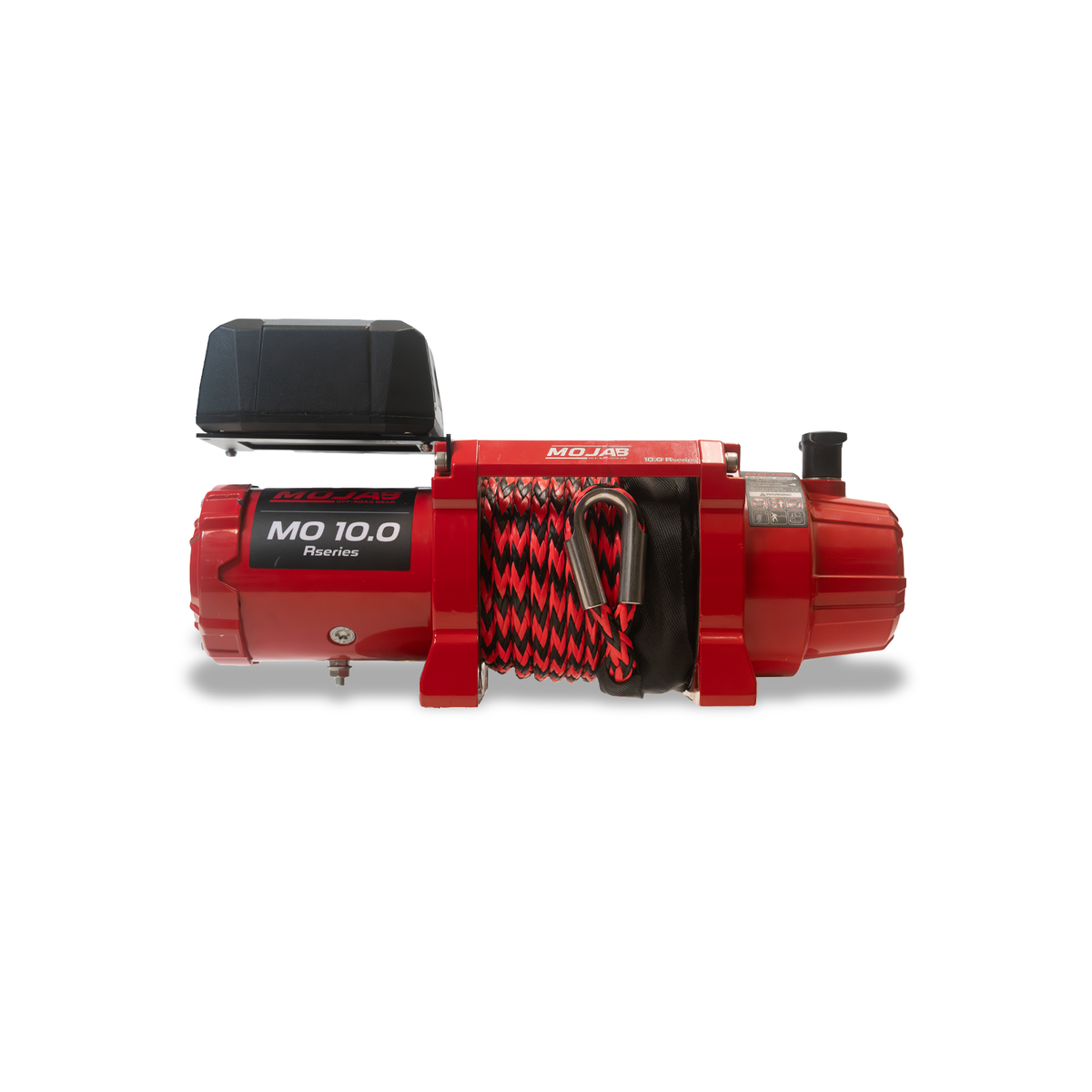

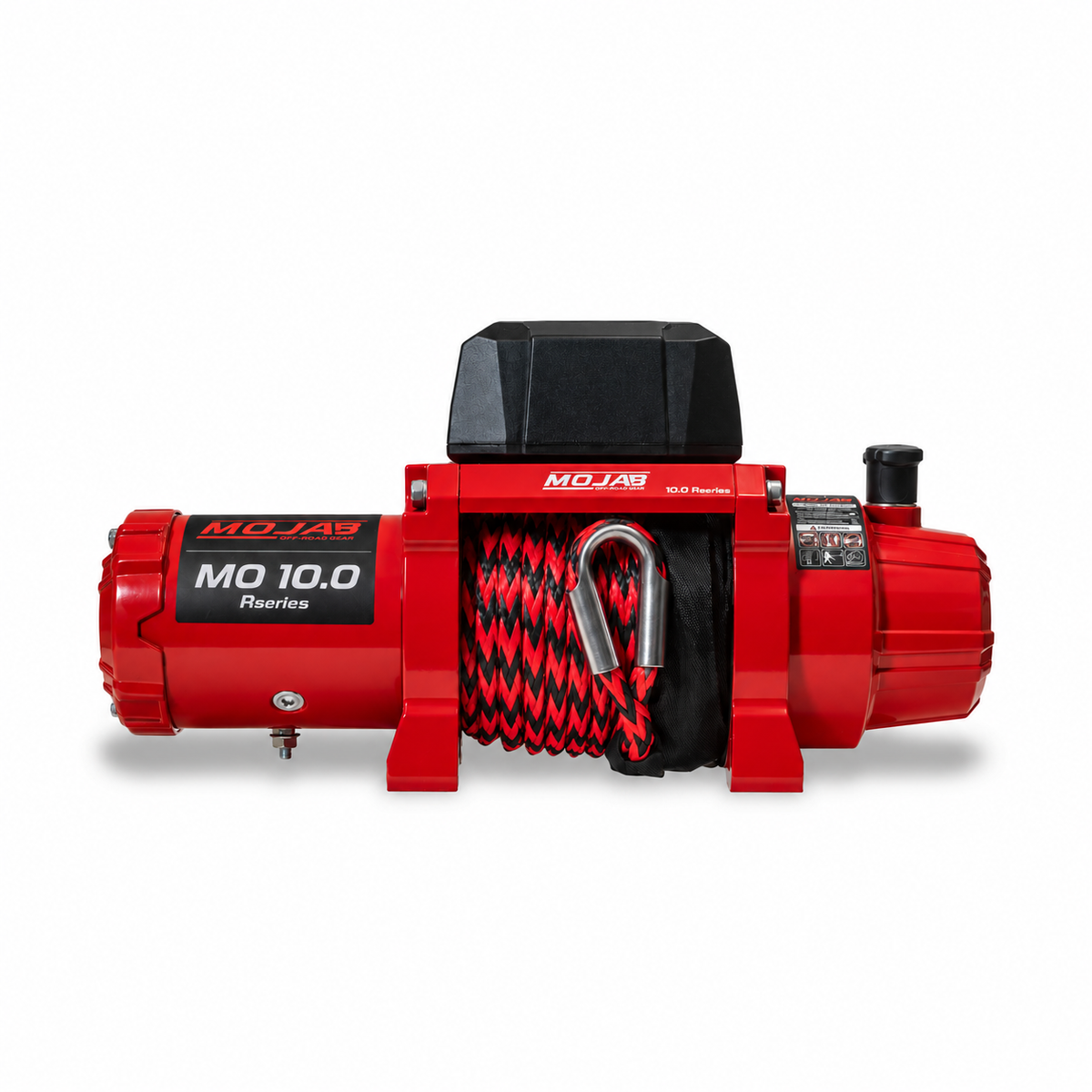

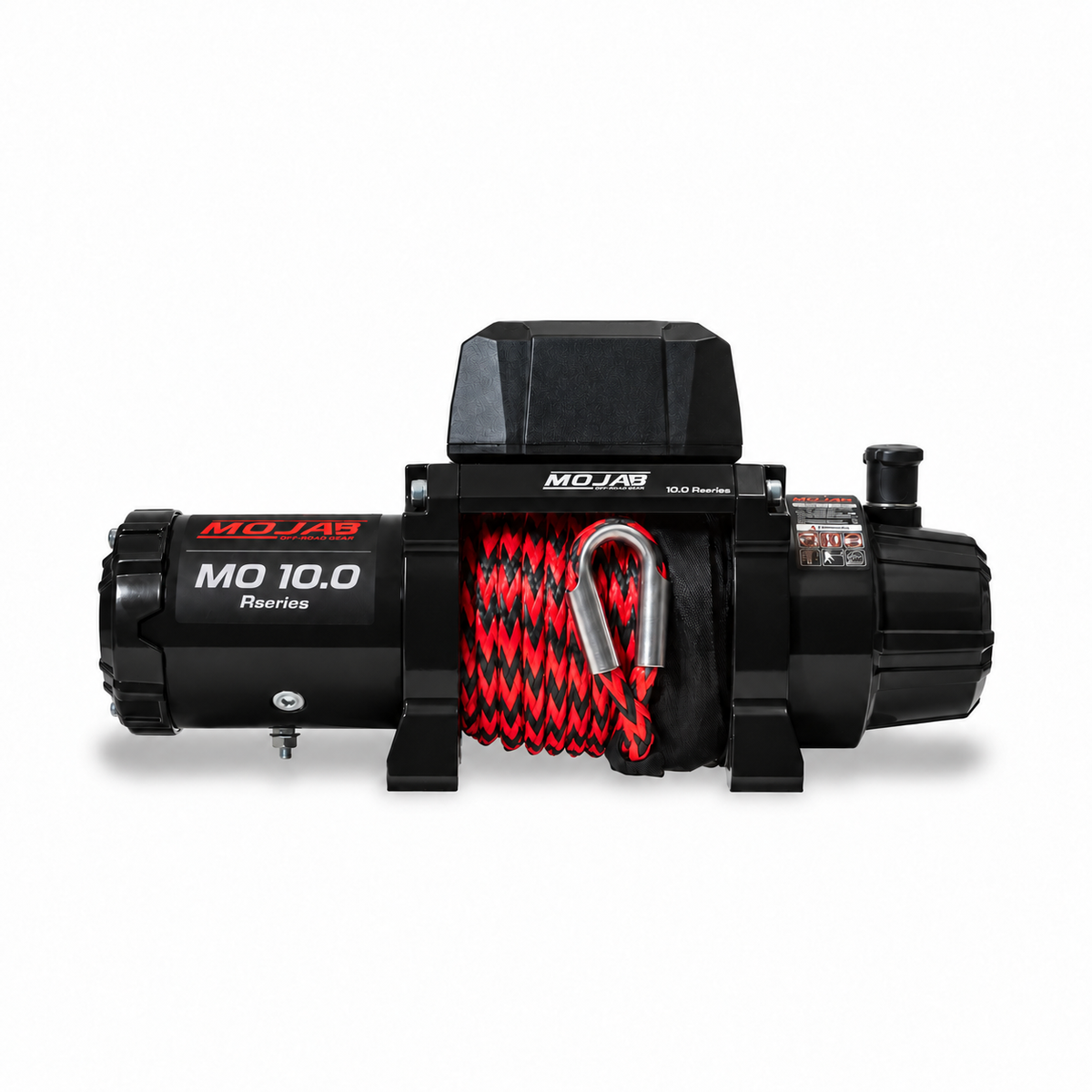

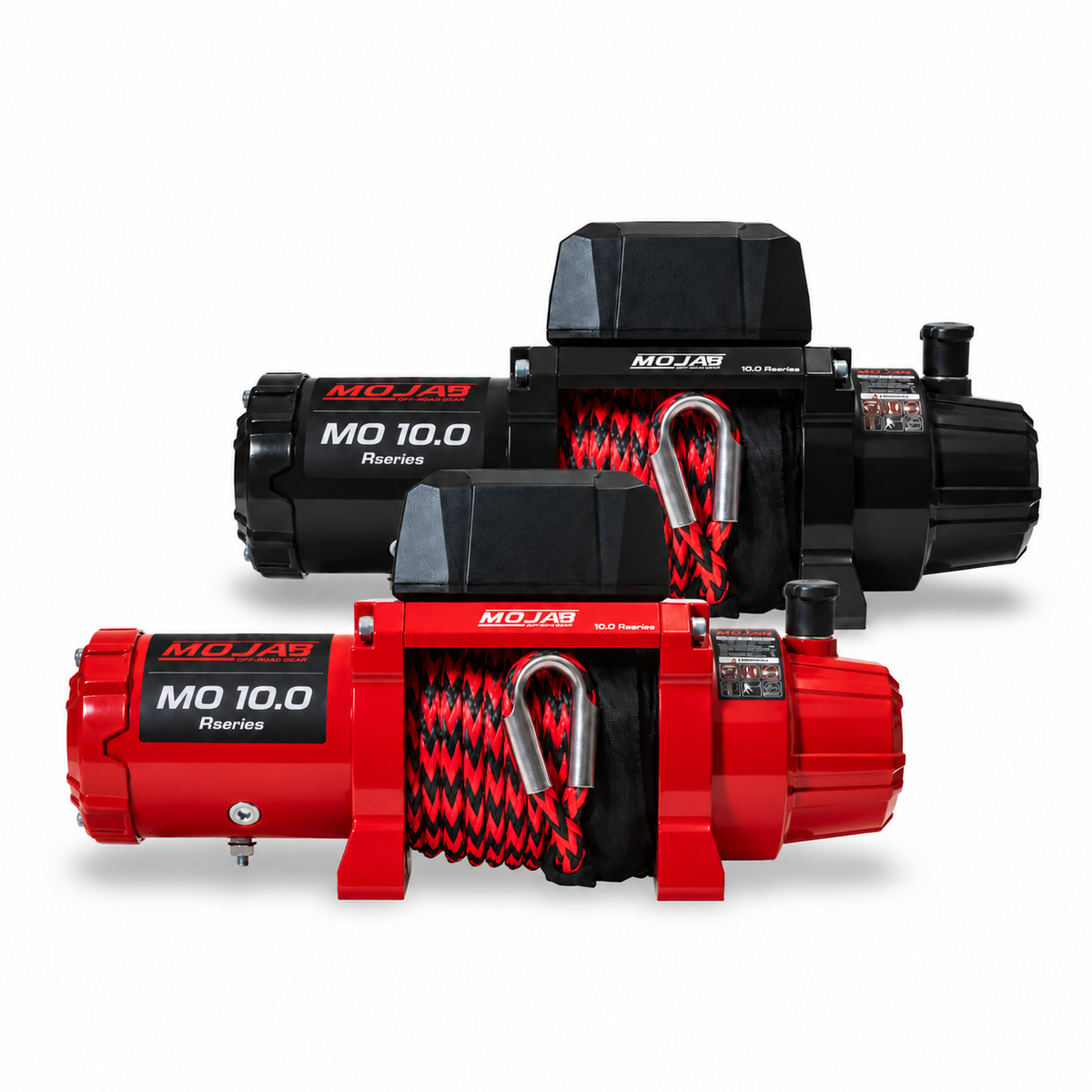

The MOJAB MO10.0 R-Series is a compact 10,000 lb off-road winch built for racers, buggies, Ultra4 cars, Jeeps, Broncos, trucks, and serious recovery setups. Designed around a compact short-drum layout, it delivers strong pulling power, fast line speed, and flexible mounting options without the bulk of a traditional full-size winch.
Powered by a high-output 6.6 HP series-wound motor and a heavy-duty 216:1 three-stage planetary gearbox, the MO10.0 is built for reliable recovery in mud, water, dust, sand, and harsh trail conditions. The winch is sealed to IP68 standards and comes with a premium 3/8" x 62' dual red and black synthetic winch line.
The removable control box gives you more flexibility during installation, while the included wired remote and two wireless remotes make operation simple from inside or outside the vehicle.
Key Features
• 10,000 lb rated line pull

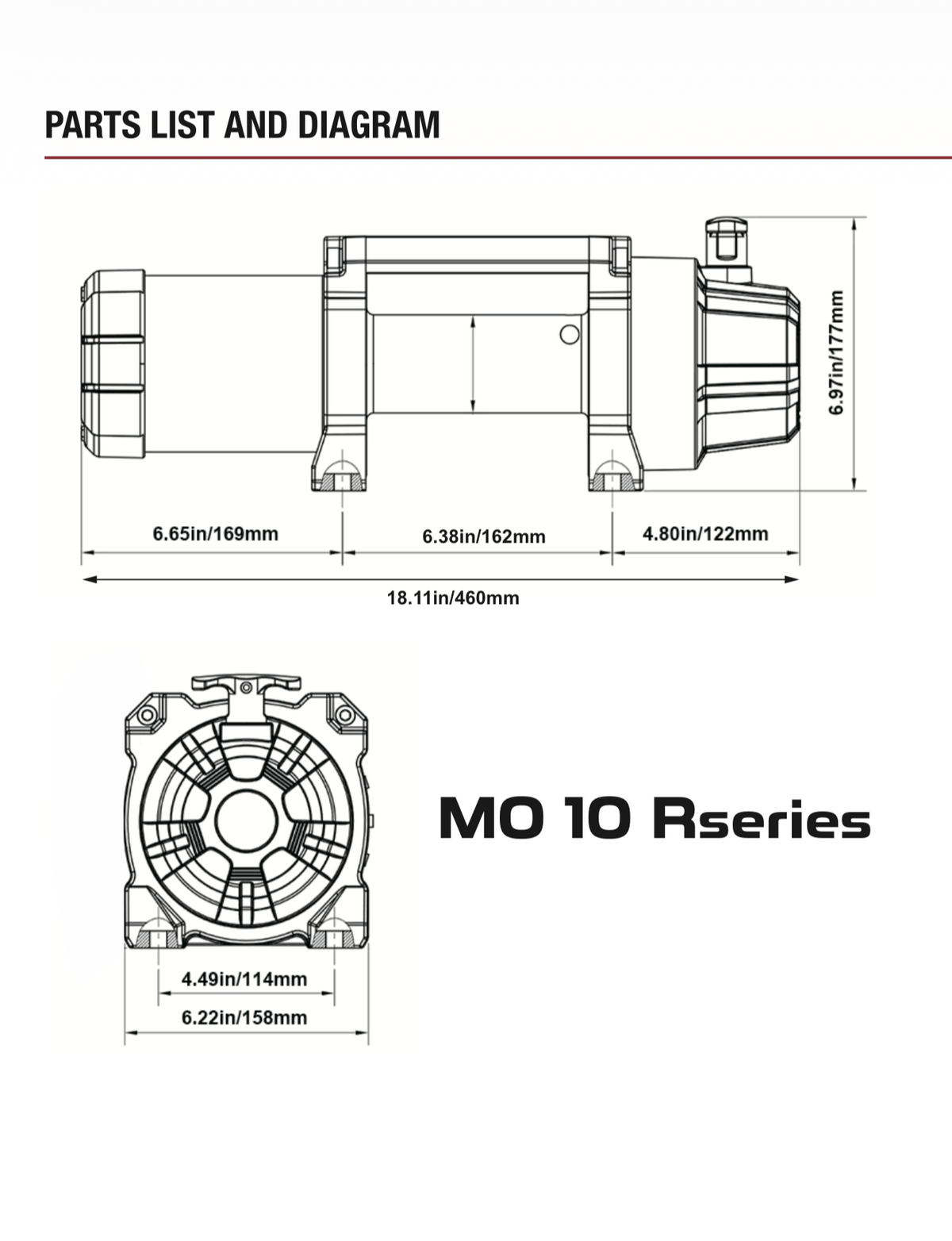

• Compact short-drum design
• High-output 6.6 HP series-wound motor
• 216:1 three-stage planetary gearbox
• IP68-rated sealing
• Premium 3/8" x 62' synthetic winch line
• Dual red and black rope design
• Removable control box
• Wired remote control included
• Two wireless remote controls included
• Forged recovery hook included
• Complete mounting hardware kit included
• Approx. 53 lb total weight
What’s Included
• MOJAB MO10.0 R-Series 10,000 lb winch
• 3/8" x 62' synthetic winch line
• Forged recovery hook
• Two wireless remote controls
• Wired remote control
• Mounting hardware
• Control box mounting options/brackets
• Installation and operating instructions
Please note: Fairlead is not included and is sold separately.
Looking to complete your setup? Pair the MO10.0 with a MOJAB billet fairlead, synthetic winch line extension, soft shackles, and snatch rings for a complete off-road recovery system.
Â
SKU: MO10
