Full-Range Class D Marine 4-Channel Amplifier 120 x 4 @4 Ohm Watts Waterproof IP67
DS18’s NVY-IPX7.4 is a powerhouse designed to enhance your audio experience whether you're cruising on the open water or exploring off-road terrains.
With an impressive IP67 waterproof rating, the NVY-IPX7.4 can withstand submersion in water up to 1 meter deep for 30 minutes, making it the ultimate companion for marine adventures. Its rugged construction ensures durability and protection against UV rays, salt, and fog, so you can enjoy your music worry-free in any conditions.

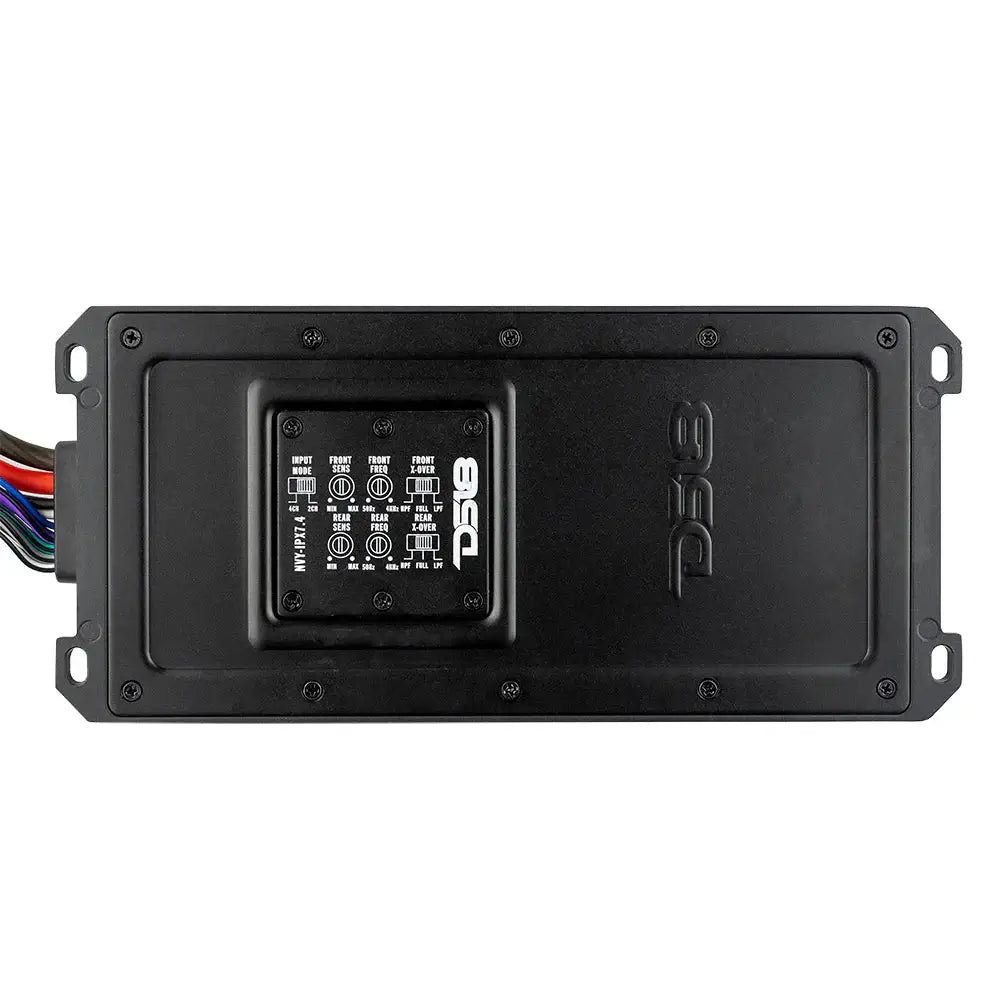

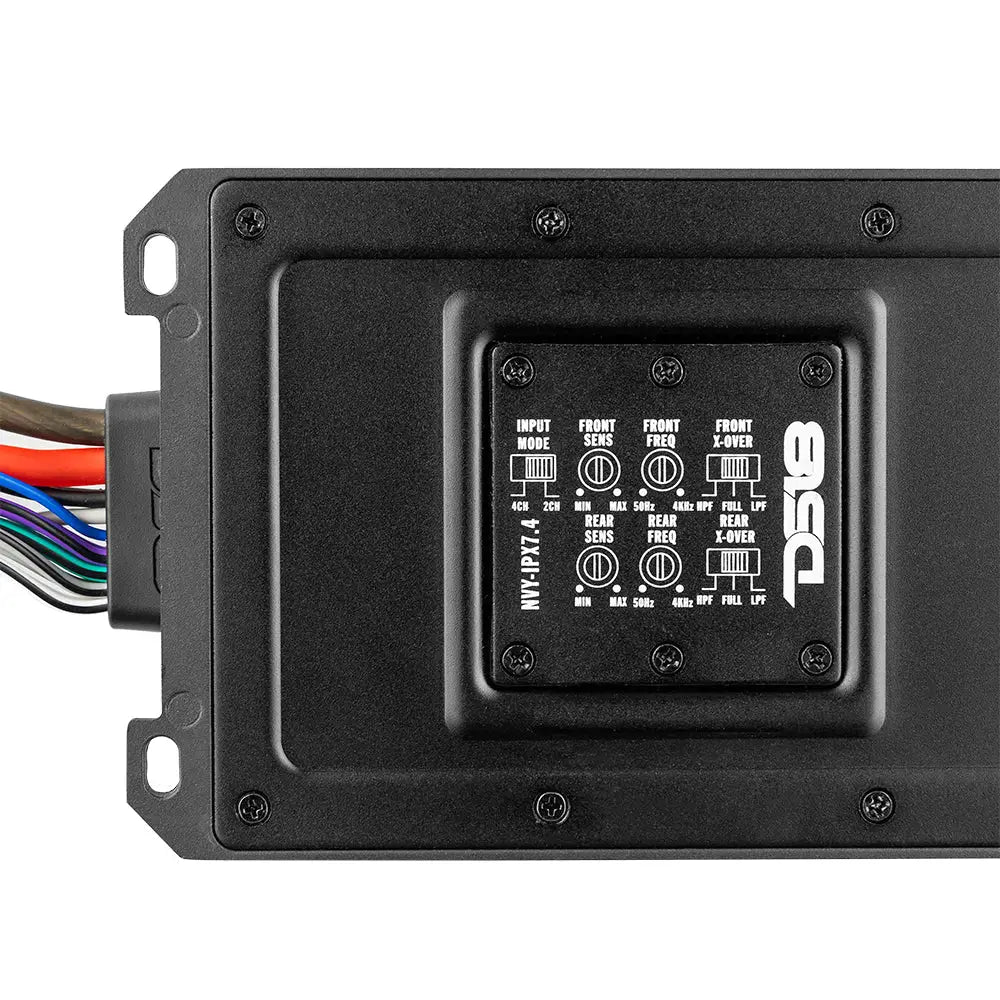

Experience complete control over your sound with the 2 CH/4 CH input selector. This feature allows you to allocate power precisely to each of your speakers, delivering a customized and balanced audio performance.
DS18’s HYDRO NVY-IPX7.4 has a maximum output of 350W x 2 CH bridged at 4-Ohms, 200W x 4 CH at 2-Ohms, and 120W x 4 CH at 4-Ohms, providing robust and clear sound reproduction.

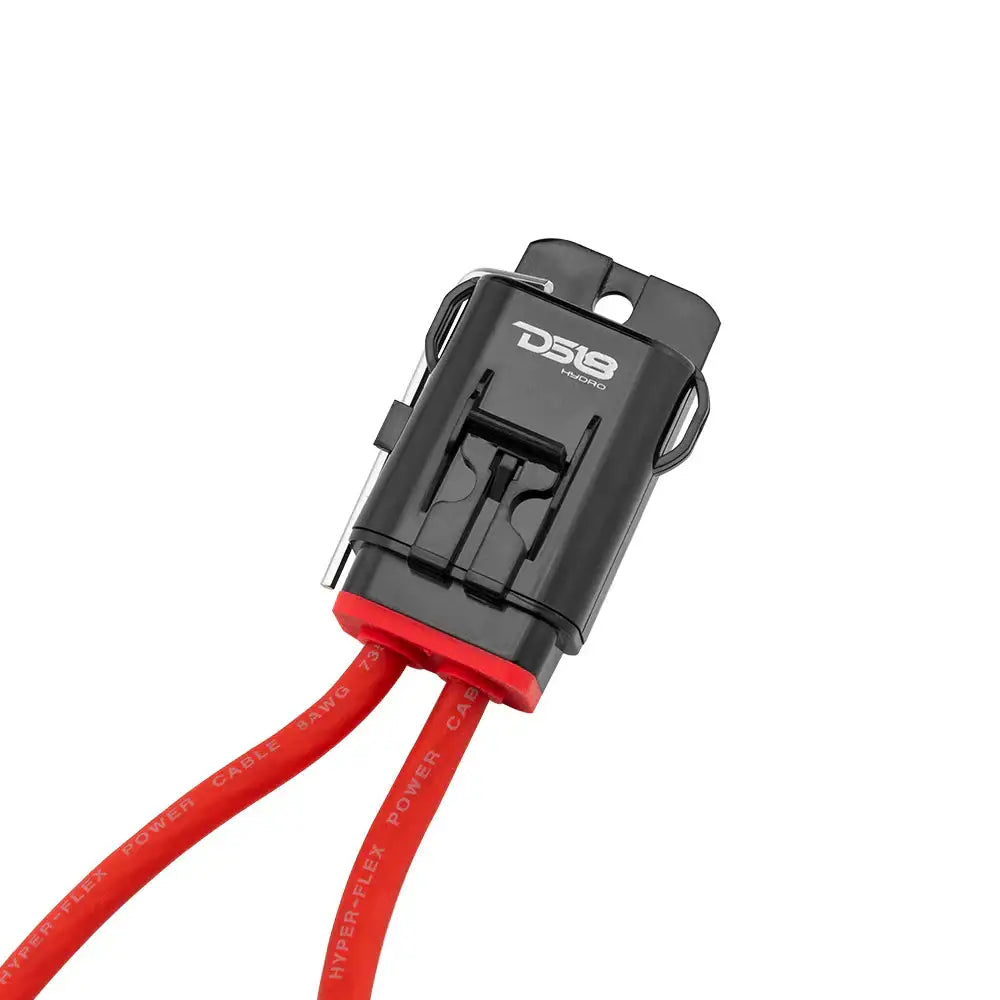

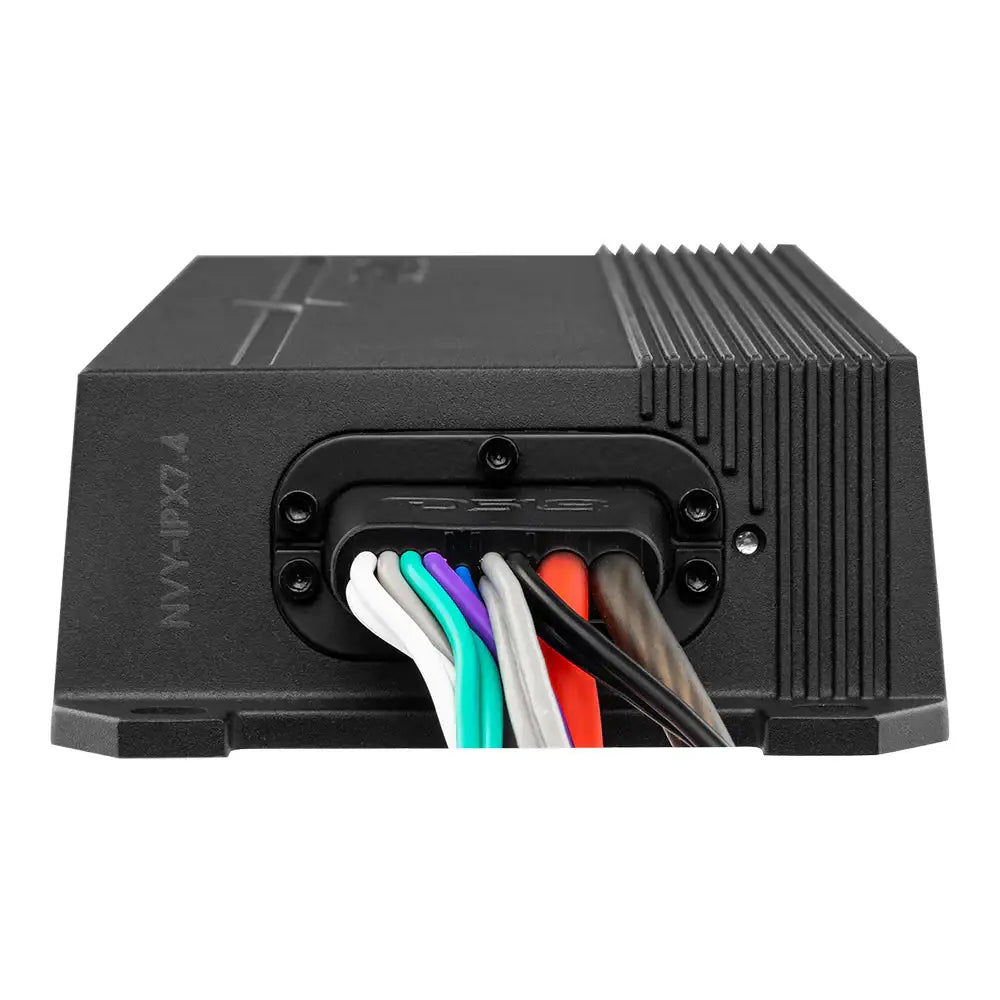

Installation is a breeze thanks to the Direct Power harness design. This innovative feature lets you place the NVY-IPX7.4 wherever you desire on your marine vehicle, ensuring optimal sound distribution. Your safety is our priority. The included marine-grade fuse and fuse holder offers ultimate protection against electrical faults and ensure reliable performance.
Don't miss out on the combined power and versatility of DS18’s NVY-IPX7. Order yours now and take your sound system to the next level!
- Marine Full Range
- 4 Channel
- 4 x 120 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
KEY FEATURES
4 CHANNELS
FULL-RANGE
CLASS D
IP67 RATING
2CH / 4CH
HPF/FULL/LPF
TECHNICAL DATA
DOWNLOAD THE USER MANUAL
GENERAL SPECIFICATIONS
SKU
NVY-IPX7.4
Total Watts (Peak)
1440 Watts
RMS Power @ 4 ohm
4 x 120 Watts
RMS Power @ 2 ohm
4 x 200 Watts
RMS Power @ 4 ohm Bridge
2 x 350 Watts
AUDIO
Frequency Response
20Hz-20KHz
Signal to Noise Ratio 1W @ 4Ω
>90dB
Efficiency @ 4 ohm
94%
Input Impedance
20KΩ ohms
Channel Separation
>-70 dB
Total Harmonic Distortion (THD)
<0.1 %
Low Level Input Range
270mV - 5.6V
Selectable X-Over
HPF/FULL/LPF
X-Over Filter Range
50Hz-4KHz
FEATURES 1
Amplifier Class
Digital
Amplifier Type
Full Range Digital Marine Amplifier
Number of Channels
4
Minimum Impedance
2 OHM / Ch (4 OHM Bridge)
Led Indicator
Protection (Red) | Power (Blue)
Power Input Size
8 Ga
Fuse
2 x 40A
FEATURES 2
Thermal Protection
Yes
Over-Load Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes / (9.5-16V)
Body Color | Finish
Black Anodize
2CH | 4CH Input Selector
Yes
Waterproof Rating
IP67
UV / Salt Fog Protection
Yes
Marine Grade Fuse Holder
Yes
EXTRA FEATURES
2Ch / 4Ch Input Selector
Yes
Waterproof Rating
IP67
UV / Salt Fog Protection
Yes
Power Direct Harness Design
Yes
Surface Mount Component Technology
Yes
MEASUREMENT
Overall Length
10" / 253mm
Overall Wide
.4.5" / 116mm
Overall Height
1.9" / 48.5mm
Heatsink Length
8.5" / 216mm
