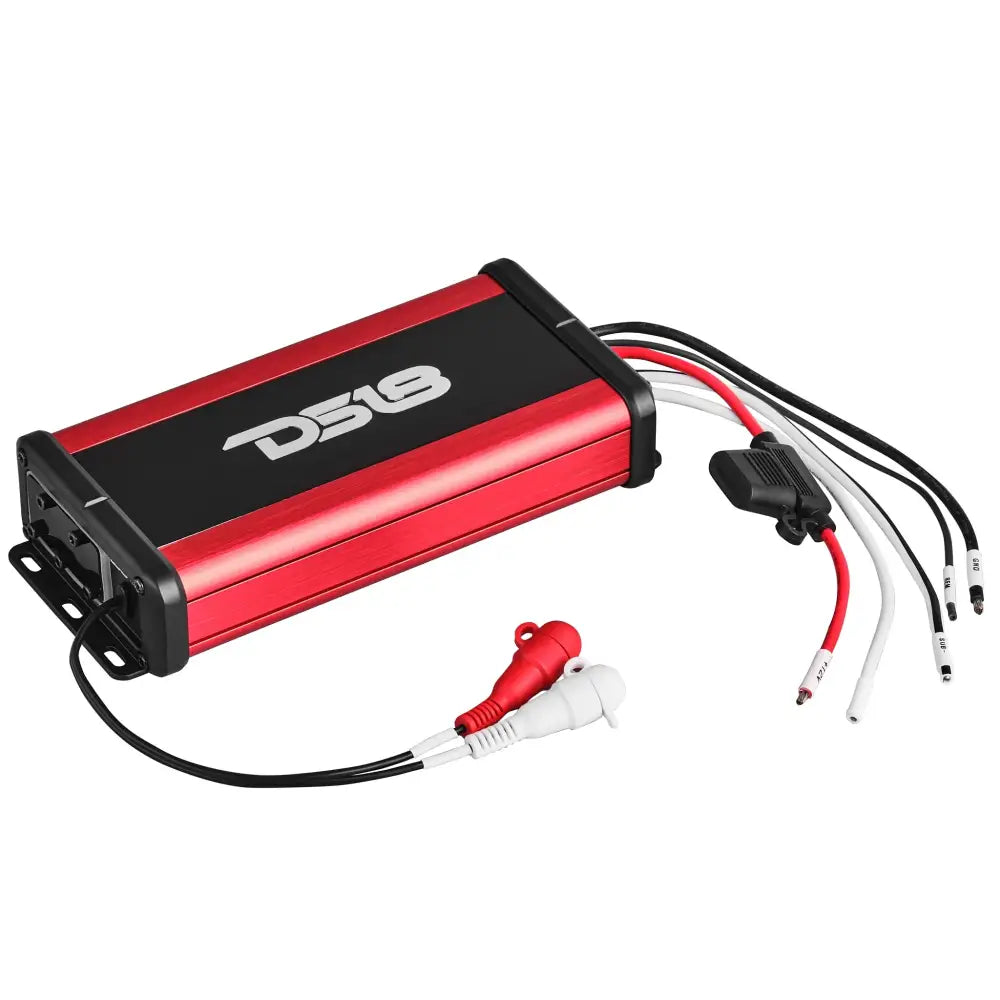

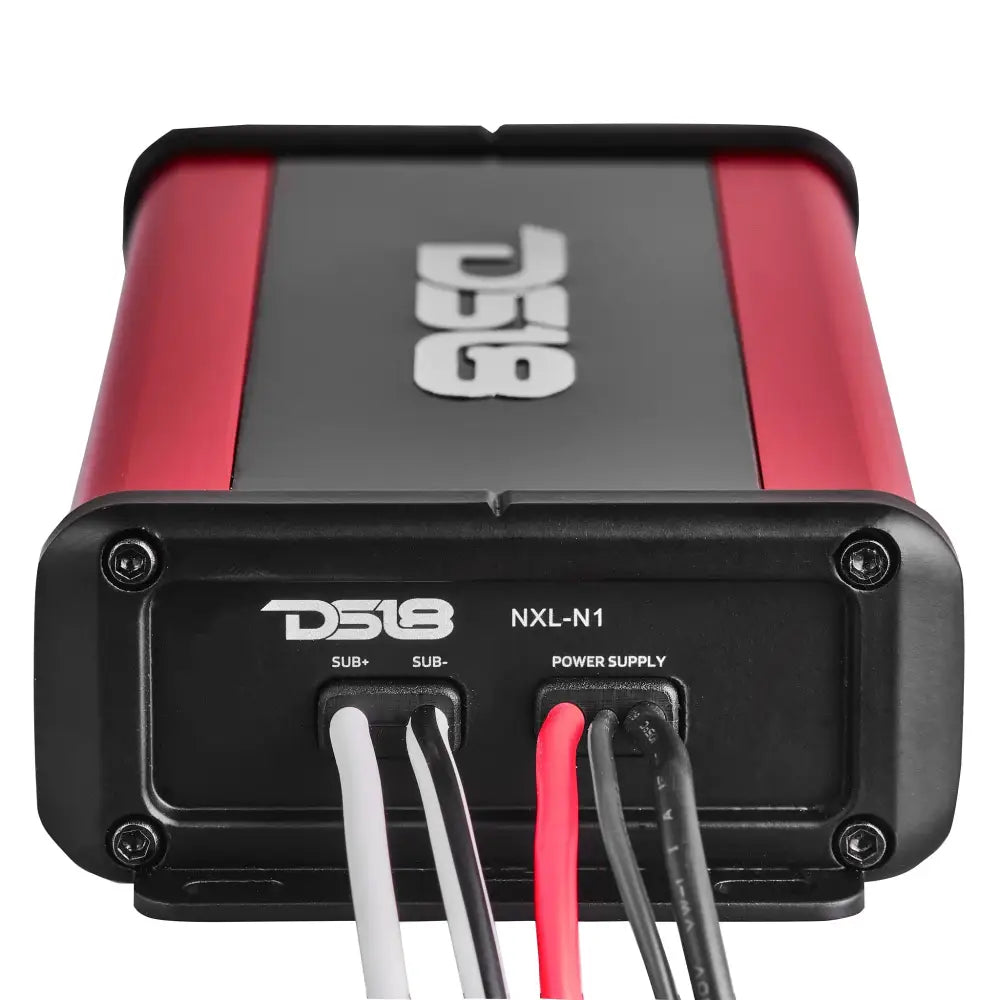

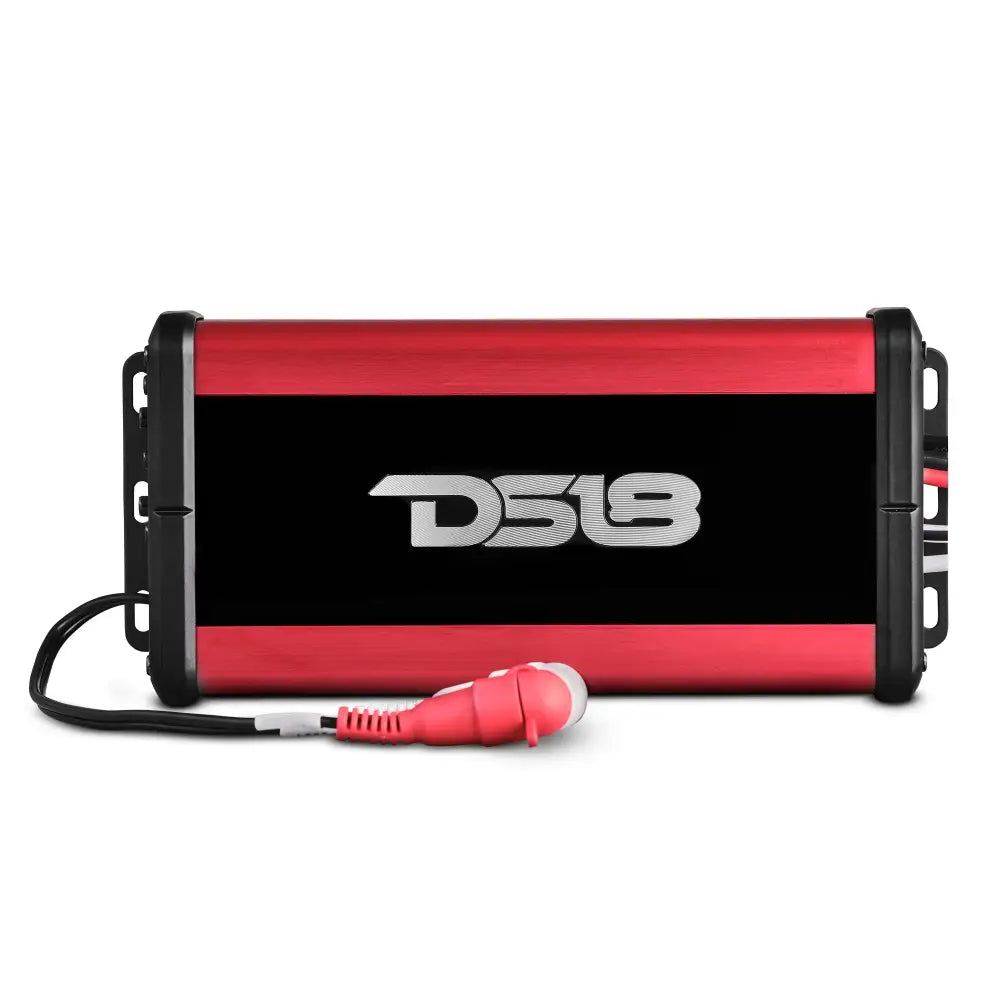

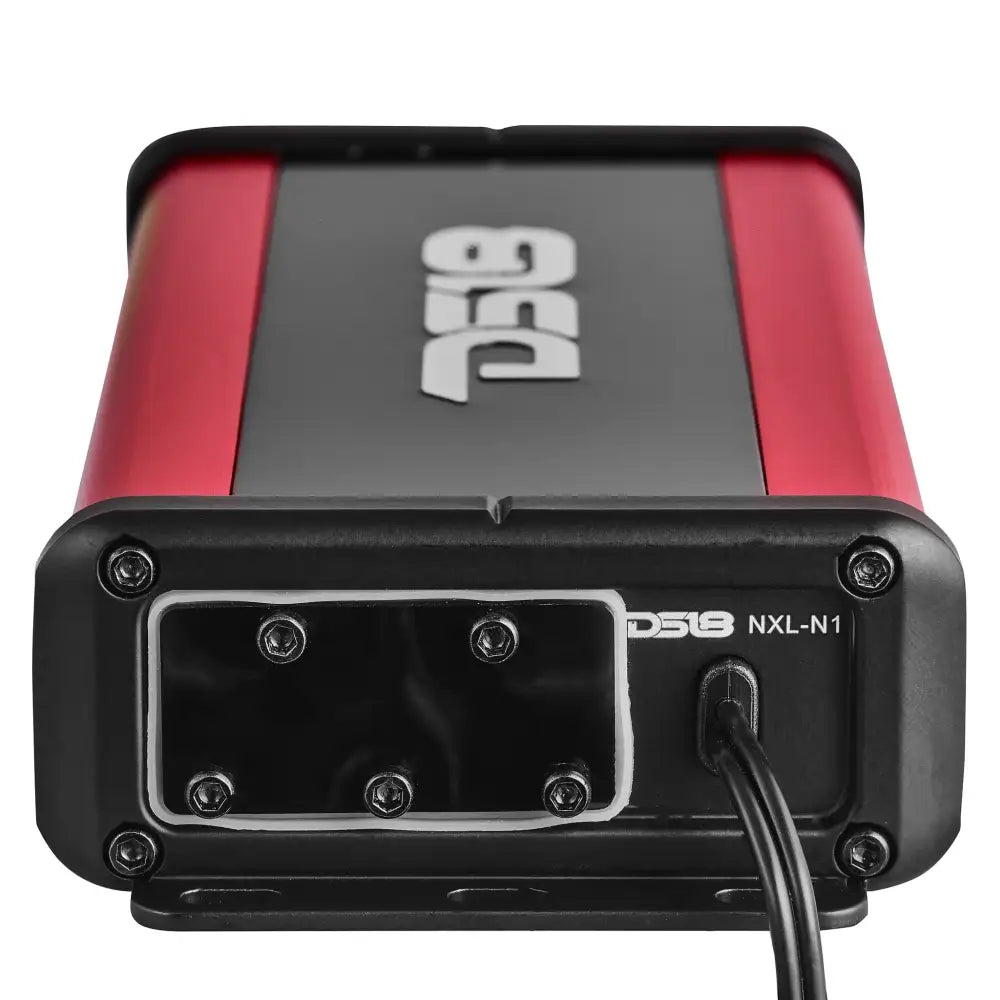

NXL 1-Channel Class D IP67 Marine and Powersports NANO Amplifier 1 x 350 Watts Rms @ 1-Ohm

Nano Digital Marine Monoblock Amplifier 1050W

DS18’s NXL-N1 is the ultimate power solution for audio enthusiasts who like it LOUD on the go! Whether you're hitting the open road on your bike, tearing through rough trails on your side by side, or cruising the open waters, this waterproof rated amp delivers exceptional performance in a compact package.
DS18's NXL-N1 is designed to power your entire system with efficiency and precision. With a 1-channel configuration these amplifiers provide your subwoofers with uninterrupted power for them to get as LOUD as possible!
Built with a stable and reliable 4-layer PCB layout design, the NXL-N4 ensures consistent performance even in challenging conditions. Rated IP67 for powersports applications, they are fully waterproof and ready to withstand the harshest environments. Plus, their ultra-compact size makes installation a breeze, fitting seamlessly into any setup.
Featuring a max power of 1050W, this amplifier delivers rich and immersive sound with 1 x 230W of RMS power at 2 Ohm and 1 x 350W of RMS power at 1 Ohm!
Experience the DS18 difference with DS18’s NXL-N1 1-Channel Monoblock Marine Amplifier.

• Marine Mono Block
• 1 Channel
• 1 X 350 Watts @ 1 Ohm
• Class D
• Micro
• Water Resistant IP67

1 CHANNEL

MONOBLOCK SUBWOOFER

CLASS D

NANO SIZE

IPX67 RATING

LED INDICATOR

TECHNICAL DATA

DOWNLOAD THE USER MANUAL

GENERAL SPECS

SKU
NXL-N1
Total Watts (Peak)
1050W
RMS Power @ 4 ohm
140W
RMS Power @ 2 ohm
230W
RMS Power @ 4 ohm Bridge
350W

AUDIO

Frequency Response
20Hz-20KHz
Signal to Noise Ratio 1W @ 4Ω
90dB
Total Harmonic Distortion (THD)
0.1%

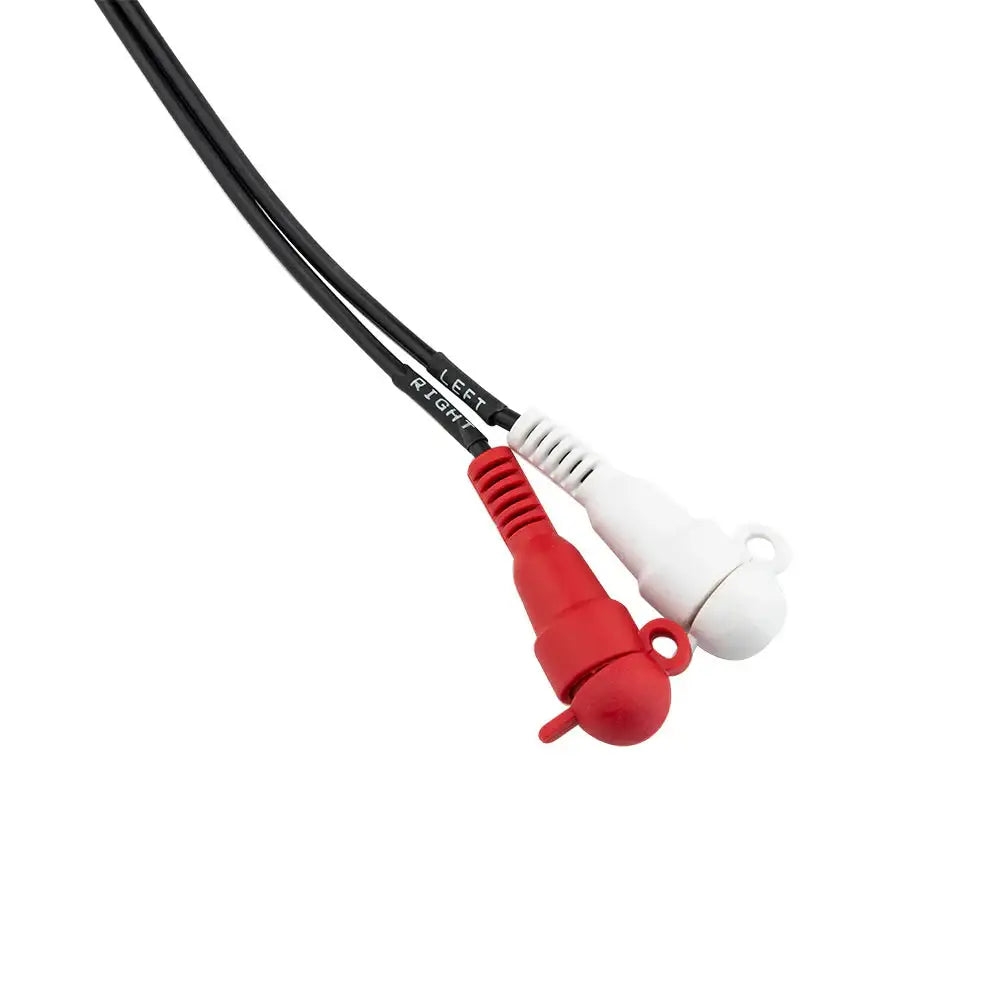

Low Level Input Range
200mV-5V
Selectable X-Over
LPF Fixed
X-Over Filter Range
50-250Hz
Bass Boost Range
0-18dB
Bass Boost Frequency
45Hz
Infrasonic Filter
10-50Hz

FEATURES 1

Amplifier Class
Digital
Amplifier Type
Monoblock Subwoofer
Number of Channels
1
Minimum Impedance
1 Ohm
LED Indicator
Power / Protection

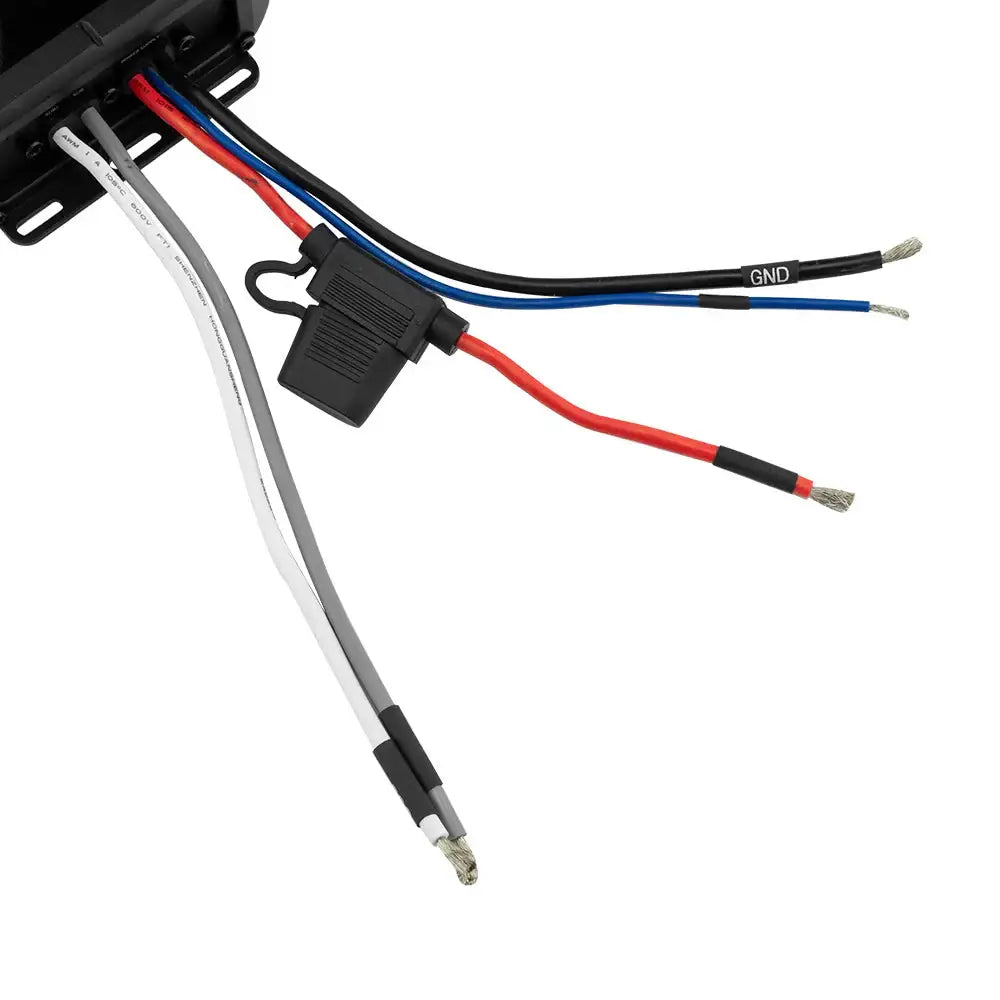

Power Input Size
Wired 10Ga OFC

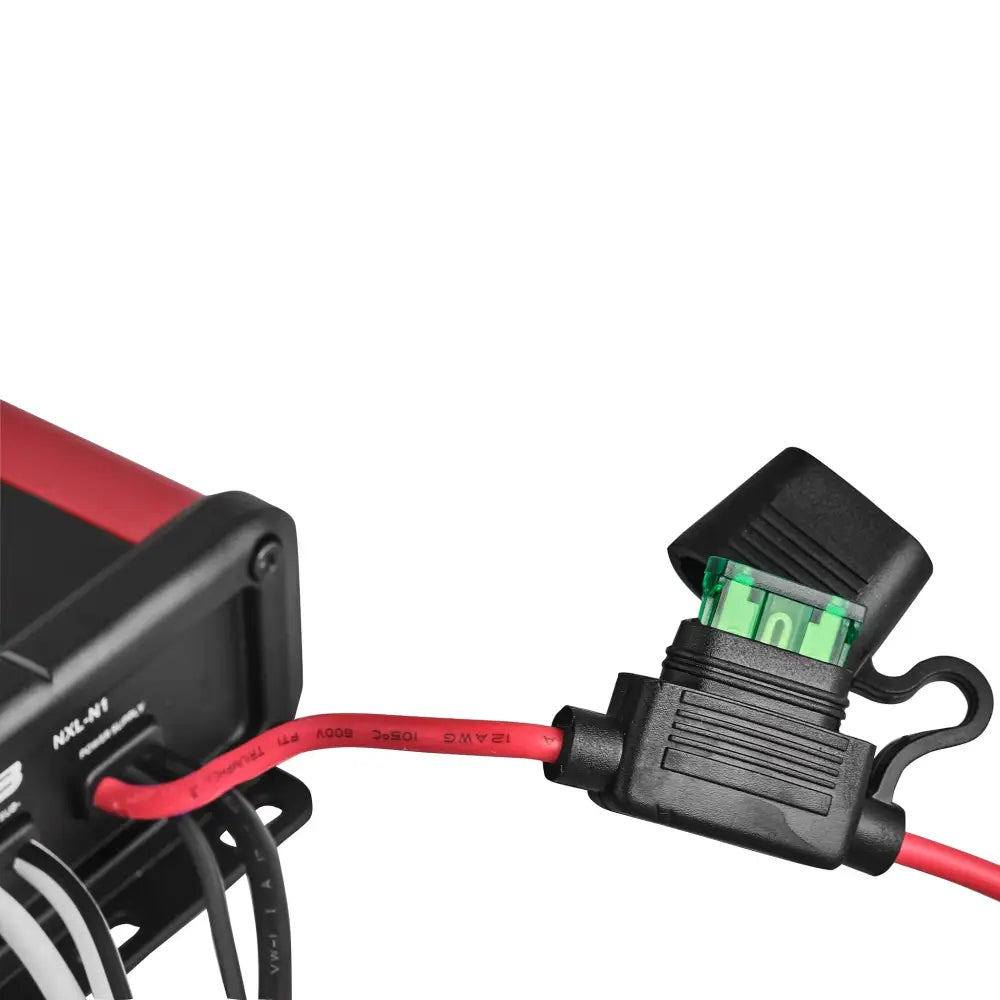

Fuse Size
30A
Thermal Protection
Yes

FEATURES 2

Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes (>15V)
Body Color
Aluminum Black and Red
Waterproof Rating
IPX67
Latest Full Range Digital Design Based on IR Platform
Yes
Ultra Compact Design for Easy Installation
Yes
PCB Design with Stable and Reliable 4-Layer Layout
Yes
Quality Control Verification Using AP Instruments
Yes

MEASUREMENT

Overall Length
7.87" / 200mm
Overall Wide
3.67" / 93.4mm
Overall Height
1.56" / 39.8mm
Heatsink Length
7.16" / 182mm
