NXL 1-Channel Full-Range Class D IP67 Marine and Powersports Amplifier 1 x 1500 Watts Rms @ 1-Ohm

1-Channel Full-Range Class D IP67 Marine and Powersports Amplifier 1 x 1500 W RMS @ 1-Ohm

Elevate your marine sound experience to new heights with DS18's NXL-X1500.1FR. Designed to deliver the best performance for your marine speakers, this digital class amplifier is the ultimate choice for those who refuse to settle for anything less than exceptional.
Featuring an innovative Input Selector, this amplifier allows you to effortlessly choose between multiple signal sources. This flexibility ensures that you can easily customize your audio setup according to your preferences. This amplifier’s Full Range Capabilities also gives users the options of powering either subs, or mids and highs.
Not only does DS18's NXL-X1500.1FR deliver unparalleled performance, but it also boasts an IPX6 Waterproof Rating, providing protection against water intrusion. Additionally, this amplifier is built to withstand harsh marine conditions with its UV, Salt, and Fog protection. It's designed to endure whatever nature throws at it without compromising on sound quality.

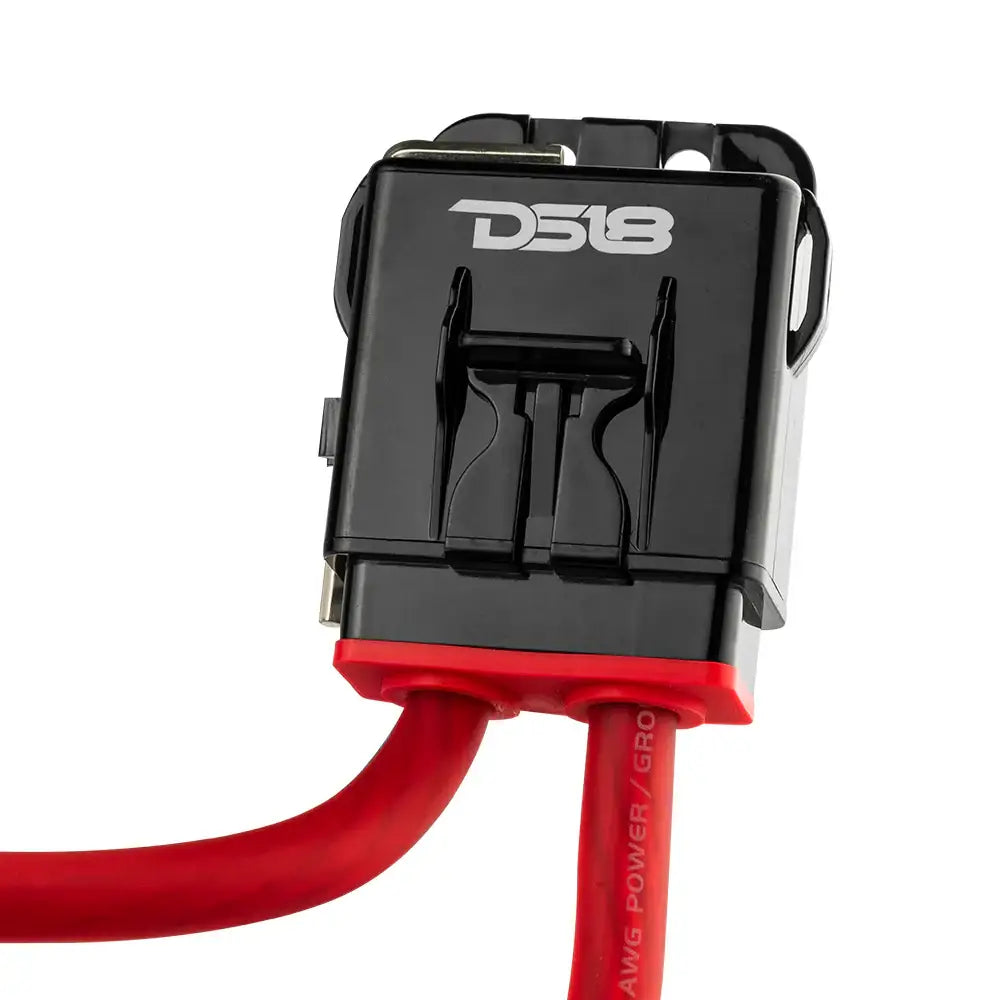

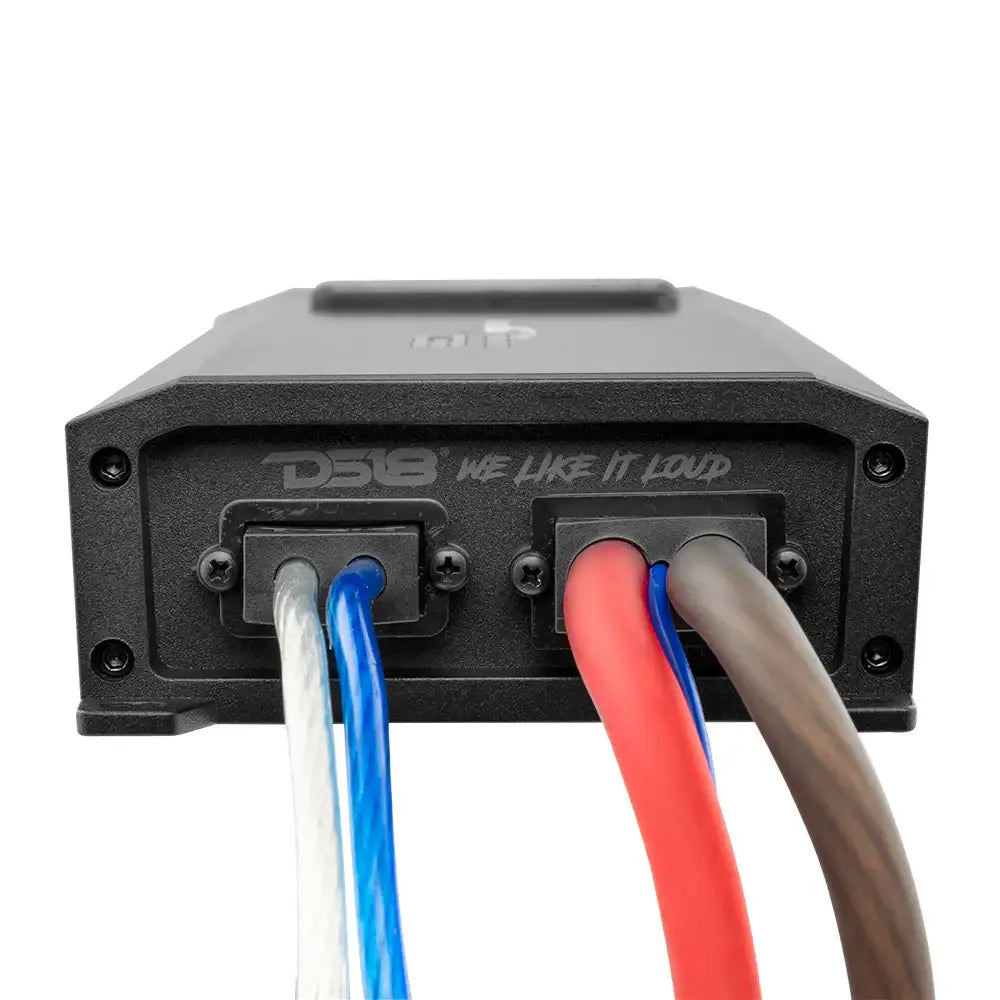

With its Direct Power harness design featuring marine-grade OFC tinned wires, this amplifier ensures optimal power transfer and efficiency. We’ve also included a 150A Fuse to protect you and your boat from almost any electrical short related to the amp's installation. Every detail has been carefully crafted to provide you with a seamless and hassle-free installation process.

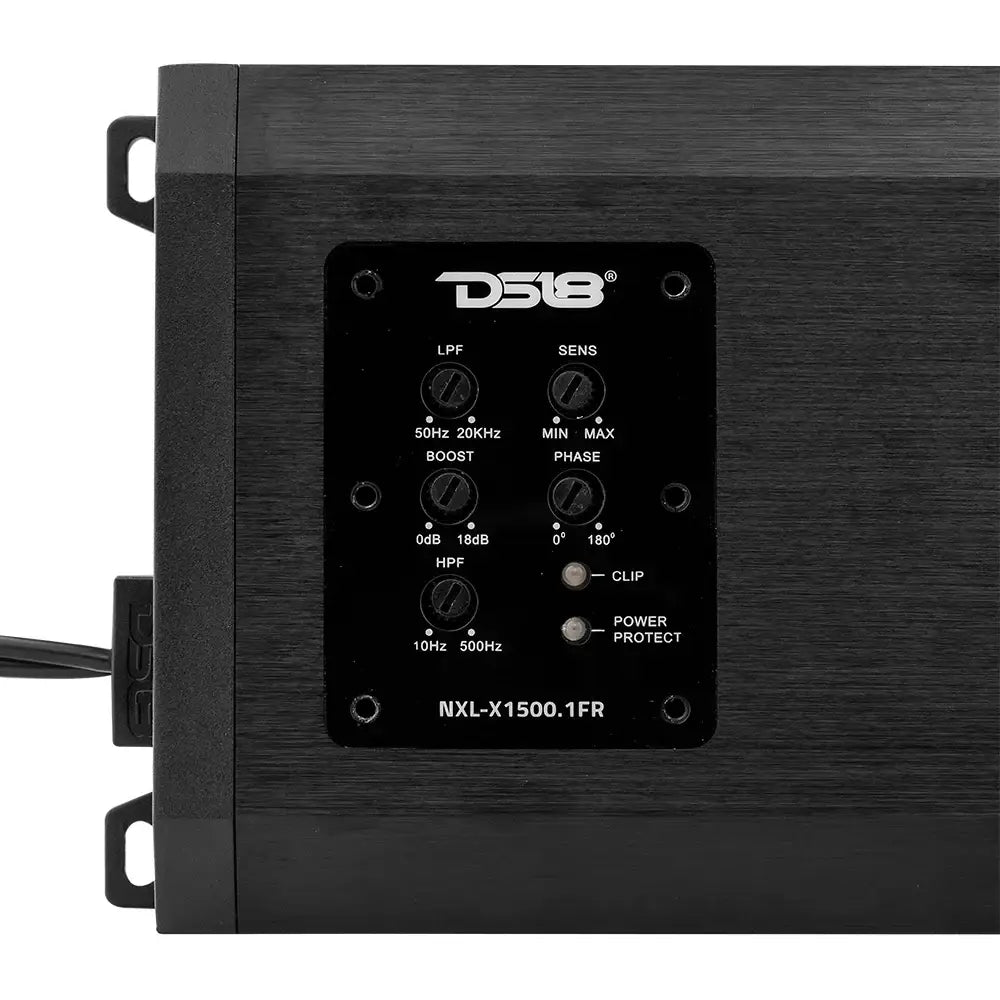

Experience the future of marine amplification with the latest digital amplifier design and SMC technology, including both high pass and low pass filters for the one output channel. This band pass filter system enhances audio clarity and precision, allowing you to enjoy every note with exceptional clarity and detail.
Prepare to be blown away by the NXL-X1500.1FR's staggering performance, delivering 700W RMS at 4-ohms, 1000W RMS at 2-ohms, and 1500W RMS @ 1-ohm. These power settings are guaranteed to supercharge any custom marine build.
Don't settle for mediocre sound on your boat or powersport vehicle. Upgrade to the DS18 NXL-X1500.1FR Marine & Powersports Digital Amplifier and unleash the true potential of your marine speakers.

• Marine Full Range
• 1 Channel
• 1 X 1500 Watts @ 1 Ohm
• Built in Crossover
• Class D
• Water Resistant IP67

1 channel

Full-Range

Class D

Led Indicator

Band-Pass

IP67 Waterproof Rating

TECHNICAL DATA

DOWNLOAD THE USER MANUAL

SPECS

SKU
NXL-X1500.1FR
Total Watts (Peak)
3000W
RMS Power @ 4 ohm
700W
RMS Power @ 2 ohm
1000W
RMS Power @ 1 ohm
1500W

AUDIO

Frequency Response
10Hz-250Hz
Signal to Noise Ratio 1W @ 4?
>81dB
Efficiency @ 4 ohm
92%
Input Impedance
20K OHM
Total Harmonic Distortion (THD)
<0.05%
Low Level Input Range
200mV-5V
Selectable X-Over
Band-Pass
X-Over Filter Range
LPF: 50Hz-20KHz / HPF: 10Hz-500Hz
Bass Boost Range
0-18dB
Bass Boost Frequency
42Hz
Phase Selector
0-180

FEATURES

Amplifier Class
Digital
Amplifier Type
Full Range
Number of Channels
1
Minimum Impedance
1 Ohm
Led Indicator
Power | Protection | Clip
Power Input Size
4GA Tinned OFC
Fuse Size
150A
Thermal Protection
Yes (75C)
Over-Load Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes (7-16V)
Body Color | Finish
Black Brushed Aluminum

EXTRA FEATURES

Waterproof Rating
IP67
UV / Salt Fog Protection
Yes
Direct Power Harness Design
Yes
Quick Connect Plug
Yes
Surface Mount Component Technology
Yes
Marine Grade Fuse Holder
Yes

MEASUREMENTS

Overall Length
13.4" / 341mm
Overall Wide
4.4" / 112mm
Overall Height
1.77" / 45mm
Heatsink Length
11.8" / 301mm
