NXL 10" 2-Way Coaxial Marine Speaker With LED RGB Lights 200 Watts Rms 4-Ohm -White
NXL 10" 2-Way Coaxial Marine Speaker With LED RGB Lights 200 Watts Rms 4-Ohm -White

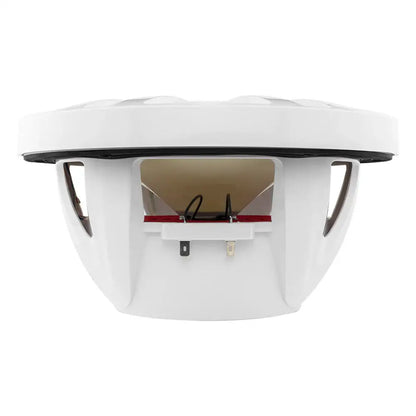

DS18 NXL-10/WH
10" 2-Way Coaxial Marine Speaker With LED RGB Lights 200 Watts Rms 4-Ohm -White
DS18’s NXL-10/WH blows the competition away with innovative design and exceptional performance!
Built to withstand the harshest elements, these speakers are IP65 waterproof rated, ensuring durability in any weather condition. Available in white or black, they seamlessly blend with your vehicle's accents, adding a touch of elegance to your setup.

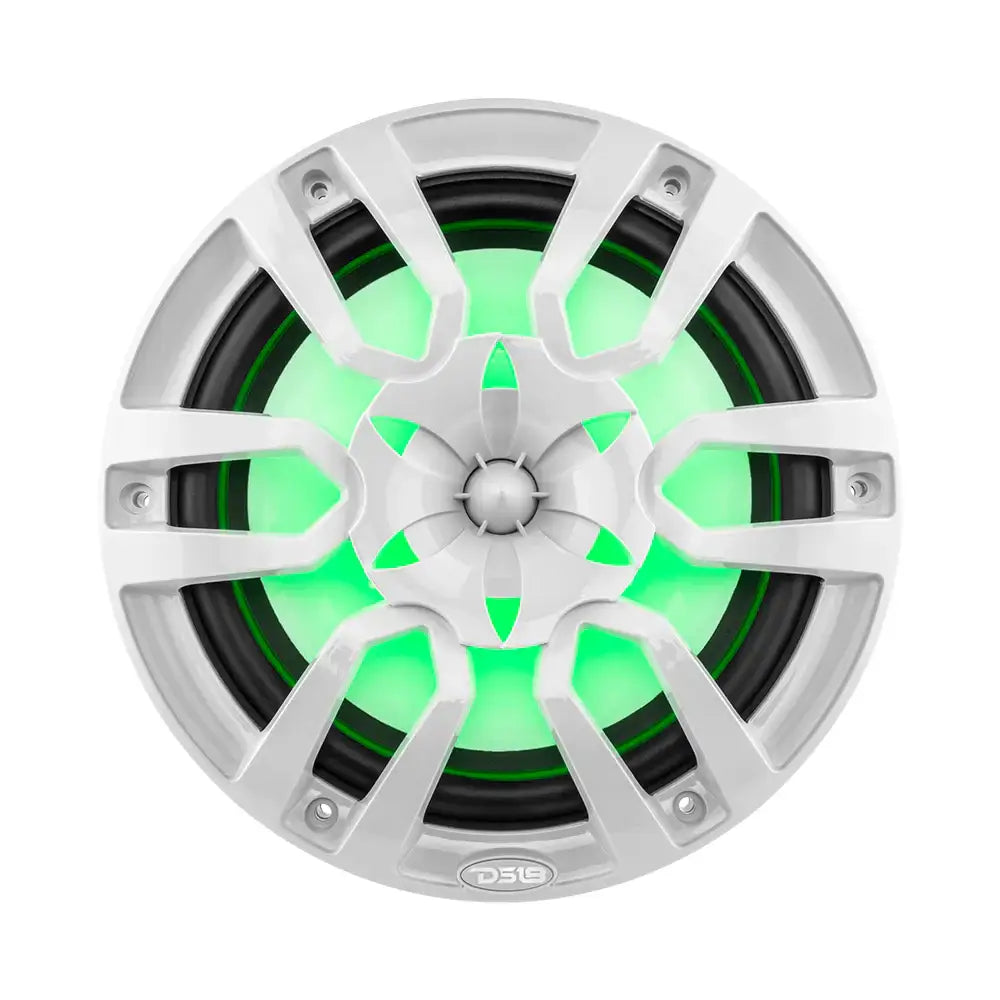

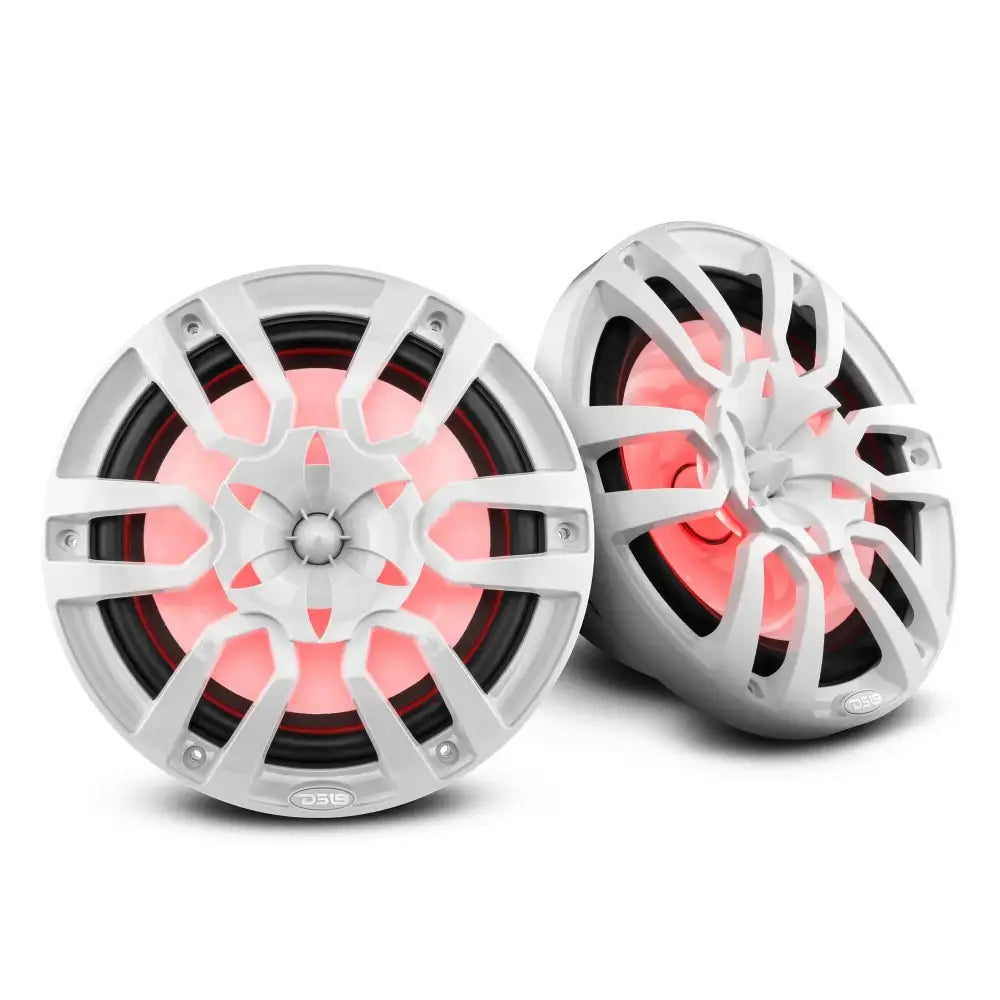

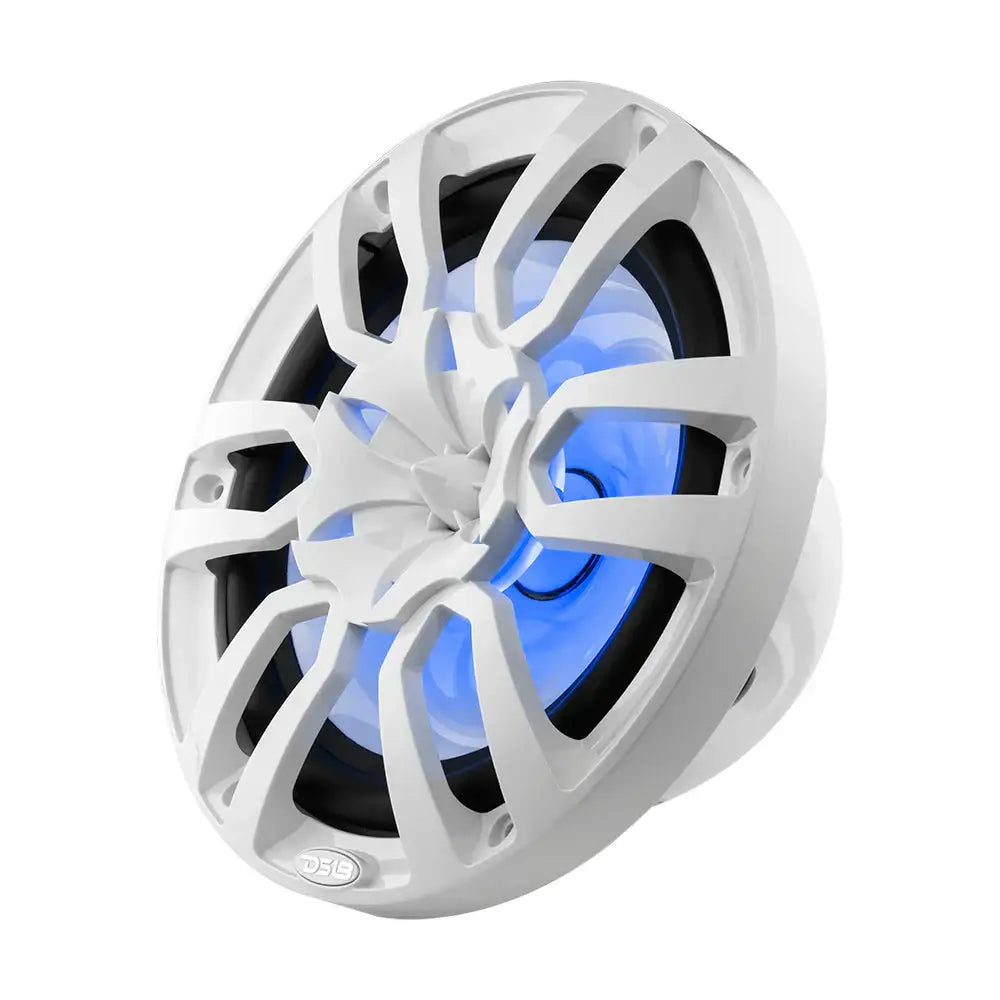

But that's not all – these speakers feature integrated RGB lighting on the grill. The vibrant lights shine down on the waterproof cones, enhancing your color scheme and setting the perfect ambiance for your adventures.
Not only do these speakers look impressive, but they also deliver an unparalleled sound experience. With a combination of an integrated tweeter and mid-range woofer, the NXL-10’s produce frequencies from 55Hz to 22KHz and exceptional sound quality. The result is a full and rich audio performance that will elevate your favorite music to new heights.

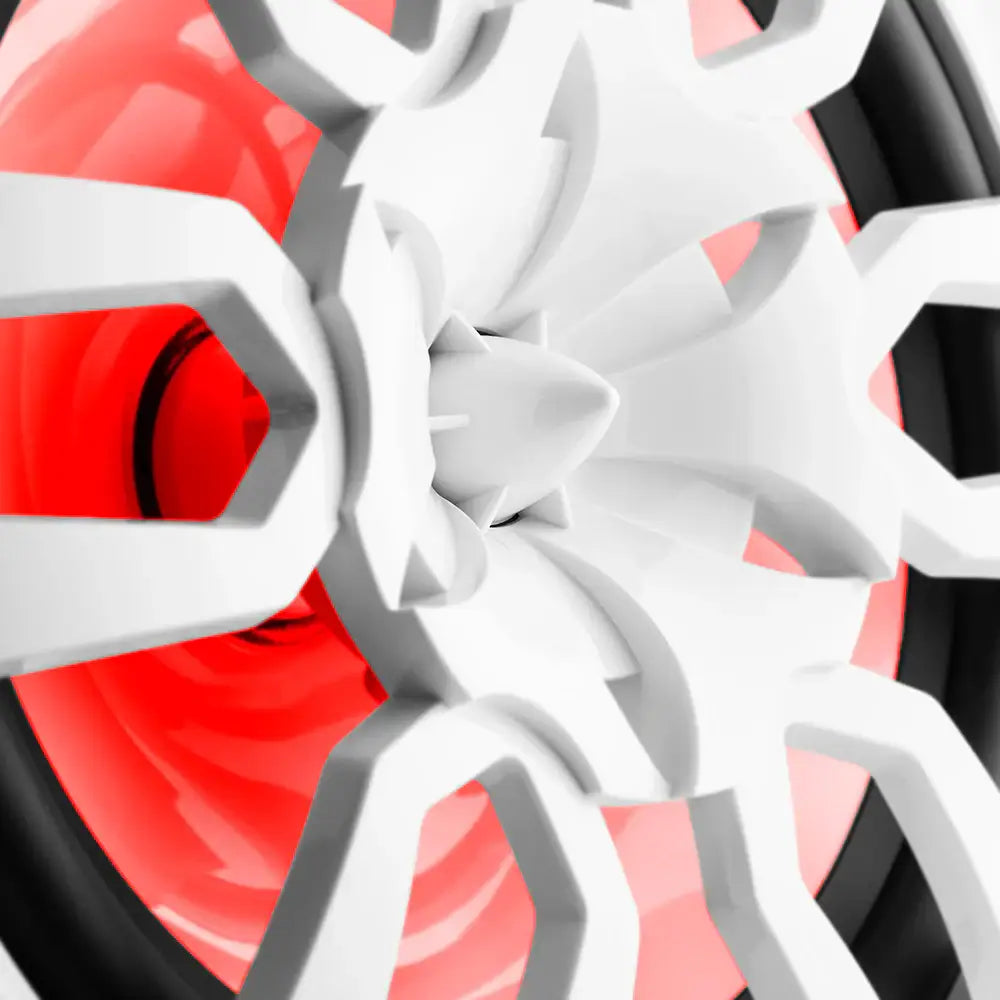

DS18's commitment to excellence is evident in every detail. The exclusive mesh grill design provides optimum protection while maintaining superior audio output.
Build your Boat’s Audio System towards perfection with DS18’s NXL-10!
- 10" 2-Way Marine Speaker
- RMS Power: 200 Watts
- Impedance: 4 Ohm
- Ferrite & Neodymium Magnets
- RGB LED Lights
- Water Resistant IP65
KEY FEATURES
10" DIAMETER
2-WAY COAXIAL
4 OHM
IP65 WATERPROOF RATING
BUILT IN TWEETER
RGB LED LIGHTS
TECHNICAL DATA
DOWNLOAD THE USER MANUAL
SPECS
SKU
NXL-10/WH
Nominal Diameter
10" / 254 mm
Nominal Impedance
4 Ohm
RMS Power Handing
200 Watts
Maximum Power Handing
600 Watts
Sensitivity (1w/1m)
94.3 dB
Frequency Response
35Hz-20KHz
Recommended Hi Pass Crossover
50Hz
SPECS
Voice Coil Diameter
1.5" / 38.6m
Voice Coil Former Material
Kapton
Winding Material
CCAW
Basket Material
High Temp Injection Molded Composite with UV Protection Coating
Magnet Weight
50 OZ + 0.56 OZ
THIELE & SMALL PARAMETERS
Vas
197.13L / 6.96ft3
Xmax
6 mm
Fs
42 Hz
Qms
6.874
Qes
0.838
Qts
0.747
Re
3.2 OHM
MEASUREMENTS
Overall Diameter
10.7" / 274 mm
Front Mount Baffle Cutout
8.75" / 222 mm
Mounting Depth
4.2" / 106.6 mm
Overall Depth
5.7" / 144.7 mm
