NXL 10" Marine Subwoofer With LED RGB Lights 300 Watts Rms SVC 4-Ohm -Black
NXL 10" Marine Subwoofer With LED RGB Lights 300 Watts Rms SVC 4-Ohm -Black
10” Marine Water Resistant Subwoofer With Integrated RGB LED Lights 600W SVC 4-Ohm - Black
Experience the ultimate in powerful and immersive sound with DS18’s NXL-10SUB/BK!
Specially designed for marine and outdoor applications, the NXL-10SUB/BK is built to withstand any weather condition while delivering mind-blowing bass.
With its IP65 waterproof frame, this 10-inch subwoofer is guaranteed to bring the BOOM to your marine audio system. Whether you're on a boat, off-roading, or simply enjoying the great outdoors, this subwoofer will provide exceptional performance that stands up to the elements.
Not only does the NXL-10SUB/BK offer impressive durability, but it also features built-in RGB lights that add a stunning touch to your application's color scheme. Connect it to any RGB 4-wire circuit and create a mesmerizing ambiance that sets you apart from the rest. For optimal control and customization, we recommend using DS18’s LED-BTC (sold separately).
Equipped with a single 4-ohm voice coil and a highly durable 2-inch voice coil former, the NXL-10SUB/BK can handle 300W RMS and 600W MAX power. Its powerful ferrite magnet and UV compliant cone materials ensure sustained and hard-hitting bass that will leave you in awe.
Designed for sealed and ported boxes, DS18’s NXL-10SUB/BK is engineered to deliver the best results. Its UV-compliant, marine-grade construction guarantees stability even in harsh environments.
Enhance your audio experience with DS18’s NXL-10SUB/BK to feel the music like never before.
- 10" Marine Subwoofer
- RMS Power: 300 Watts(600 Watts Peak)
- Impedance: 4 Ohm 2" SVC
- RGB LED Lights
- Ferrite Magnet ~ 89dB
- Water Resistant IP65
KEY FEATURES
marine SUBWOOFER
10" DIAMETER
4 OHM
IP65 WATERPROOF RATING
RGB LIGHTS
GRILL INCLUDED
TECHNICAL DATA
DOWNLOAD THE USER MANUAL
SPECS
SKU
NXL-10SUB/BK
Nominal Diameter
10" / 254mm
Nominal Impedance
4 ohm
RMS Power Handing
300W
Maximum Power Handing
600W
Sensitivity (1w/1m)
89dB
Frequency Response
35-250Hz
Recommended Lo Pass Crossover
100Hz
SPECS
Voice Coil Diameter
2" / 50.8mm
Voice Coil Former Material
Glass Fiber
Winding Material
CCAW
Basket Material
High Temp Injection Molded Composite with UV Protection coating
Magnet Weight
72 oz
THIELE & SMALL PARAMETERS
Vas
26.7L / 0.94ft3
Fs
45Hz
Qms
8.919
Qes
0.805
Qts
0.457
Re
3.65 ohm

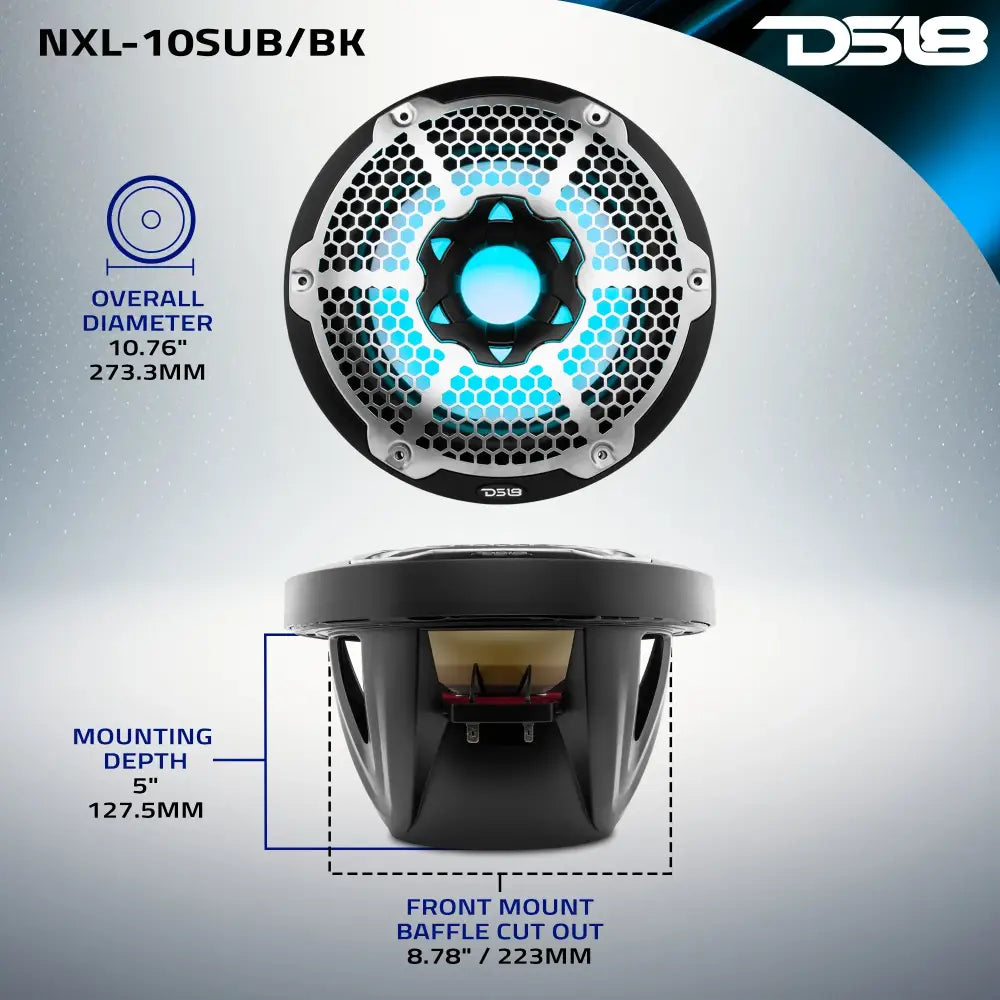

MEASUREMENTS
Overall Diameter
10.76" / 273.3mm
Front Mount Baffle Cutout
8.78" / 223mm
Mounting Depth
5" / 127.5mm
Overall Depth
6.73" / 171mm
