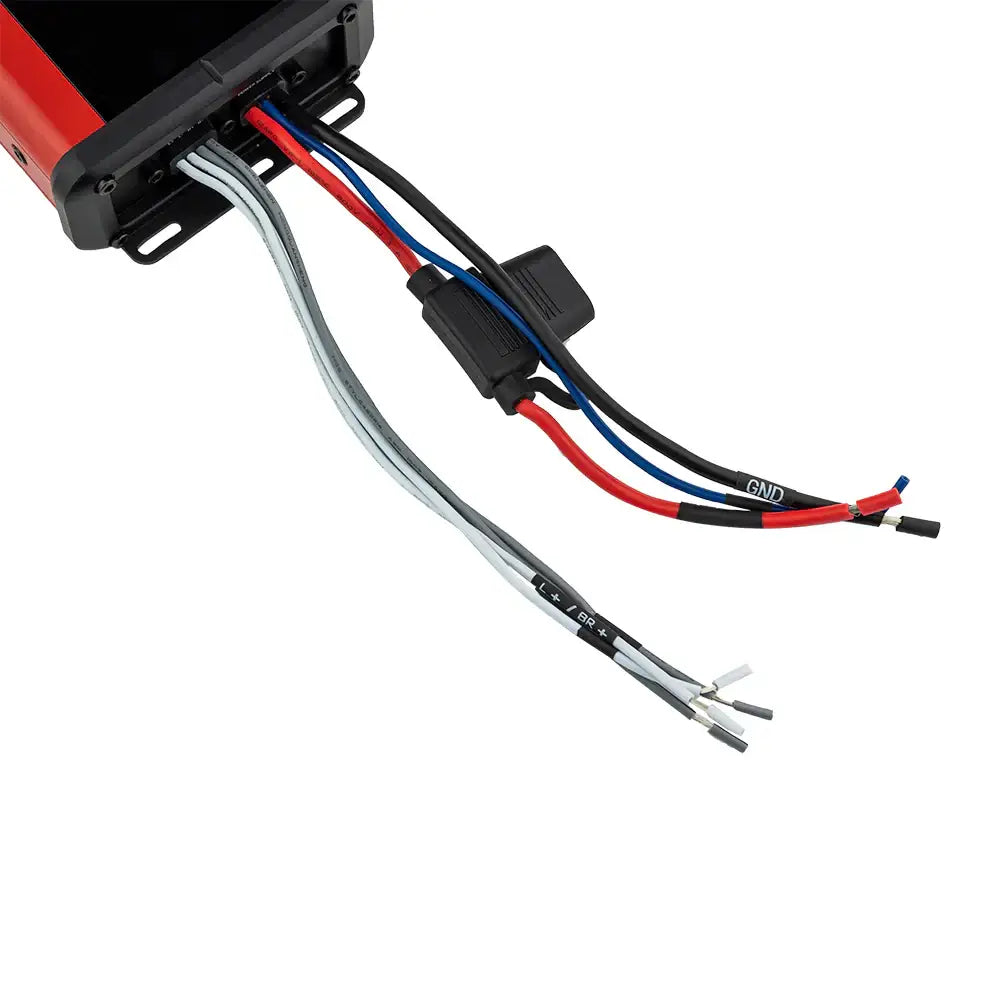

NXL 2-Channel Full-Range Class D IP67 Marine and Powersports NANO Amplifier 2 x 100 Watts Rms @ 4-Ohm 900 Watts Peak

Nano Full-Range Digital Marine 2-Channel Amplifier 2 x 100W @ 4-Ohm RMS

DS18’s NXL-N2 is built for the audio enthusiast who loves hitting the open road on their bike, conquering rough trails in their side by side, or cruising the open waters! This powerful amplifier is designed to enhance your sound experience in any environment.
The NXL-N2 is not only highly efficient and compact but also delivers exceptional power output. This amplifier’s 2-channel allows you to effortlessly power your entire system without searching elsewhere.
Thanks to its full range capability, the NXL-N2 has the power to supercharge any speaker in your setup; whether you prefer subs, mids, or tweeters, these amps can handle it all. DS18’s NXL-N2 is also equipped with selectable X-Over options including LPF (Low Pass Filter), FULL range mode, and HPF (High Pass Filter). This allows you to customize your sound according to your preferences.
Featuring stable and reliable 4-layer PCB layouts, these amps are built to withstand the demands of power sports. With an IPX67 waterproof rating, they can handle any weather condition you throw at them.
With a maximum power output of 900W and RMS powers of 2 x 150W at 2 Ohms and 2 x 100W at 4 Ohms per channel, this amplifier delivers a dynamic and immersive sound experience.
Installation is a breeze with the ultra-compact size of these amps. Their small footprint ensures easy integration into any setup. And rest assured, each unit undergoes rigorous audio precision quality control verification to guarantee top-notch performance.
Don't compromise on quality or performance. Choose the NXL-N2 for all your outdoor adventures.

• Marine Full Range
• 2 Channel
• 2 X 100 Watts @ 4 Ohm
• Class D
• Micro
• Water Resistant IP67

2 CHANNELS

FULL-RANGE

CLASS D

NANO SIZE

IPX67 RATING

LED INDICATOR

TECHNICAL DATA

DOWNLOAD THE USER MANUAL

GENERAL SPECS

SKU
NXL-N2
Total Watts (Peak)
900W
RMS Power @ 4 ohm
2x100W
RMS Power @ 2 ohm
2x150W
RMS Power @ 4 ohm Bridge
1x300W

AUDIO

Frequency Response
20Hz-20KHz
Signal to Noise Ratio 1W @ 4Ω
90dB
Total Harmonic Distortion (THD)
0.1%
Low Level Input Range
200mV-5V
Selectable X-Over
HPF/LPF/FULL
X-Over Filter Range
40-500Hz
Bass Boost Range
No
Infrasonic Filter
No

FEATURES 1

Amplifier Class
Digital
Amplifier Type
Stereo Full Range
Number of Channels
2
Minimum Impedance
2ohm (Stereo) / 4ohm (Bridge)
LED Indicator
Power / Protection
Power Input Size
Wired 10Ga OFC
Fuse Size
25A
Thermal Protection
Yes

FEATURES 2

Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes (>15V)
Body Color
Aluminum Black and Red
Waterproof Rating
IPX67
Latest Full Range Digital Design Based on IR Platform
Yes
Ultra Compact Design for Easy Installation
Yes
PCB Design with Stable and Reliable 4-Layer Layout
Yes
Quality Control Verification Using AP Instruments
Yes

MEASUREMENT

Overall Length
7.87" / 200mm
Overall Wide
3.67" / 93.4mm
Overall Height
1.56" / 39.8mm
Heatsink Length
7.16" / 182mm
