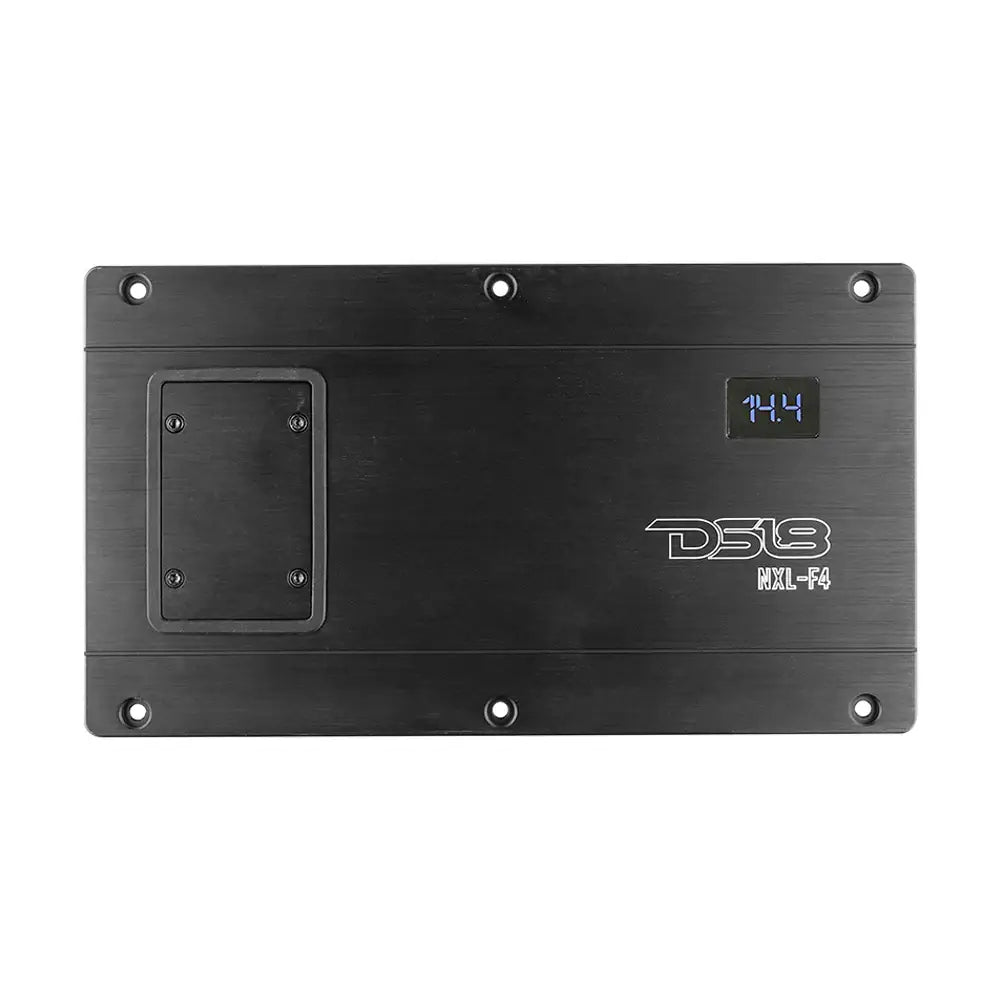

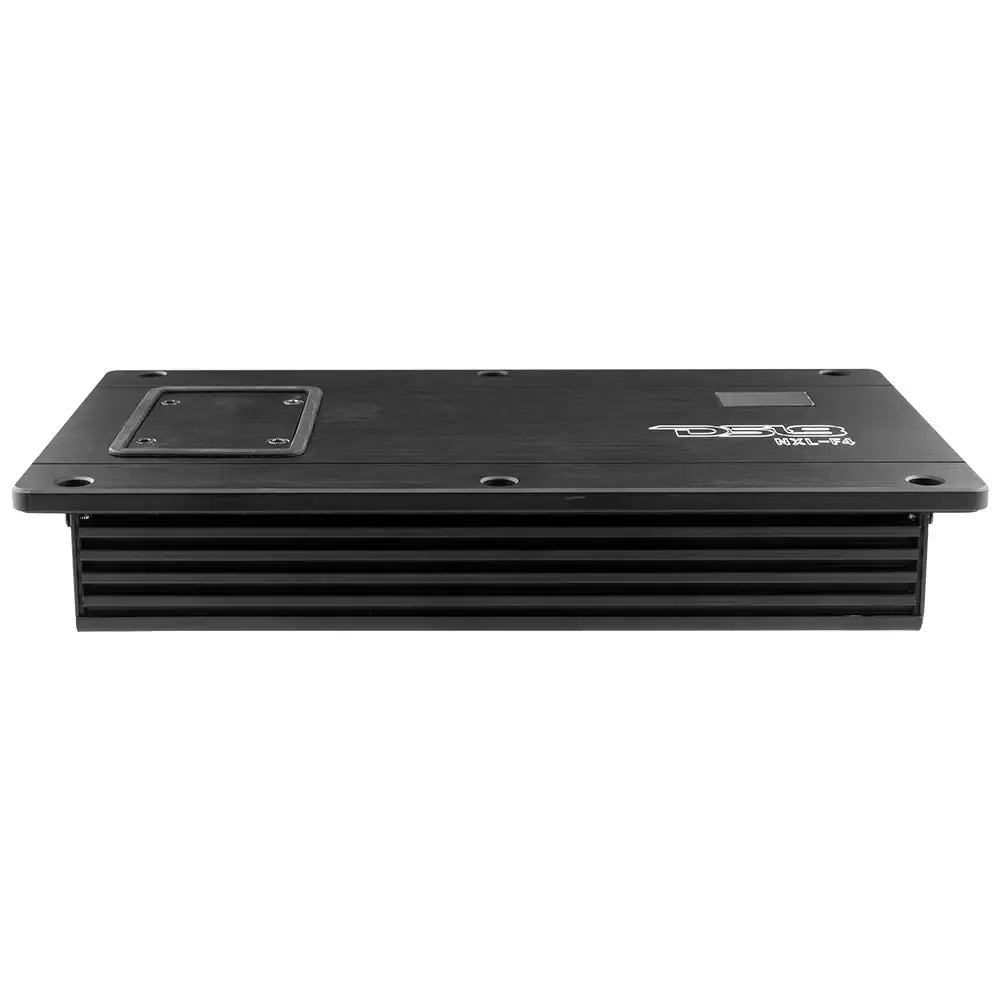

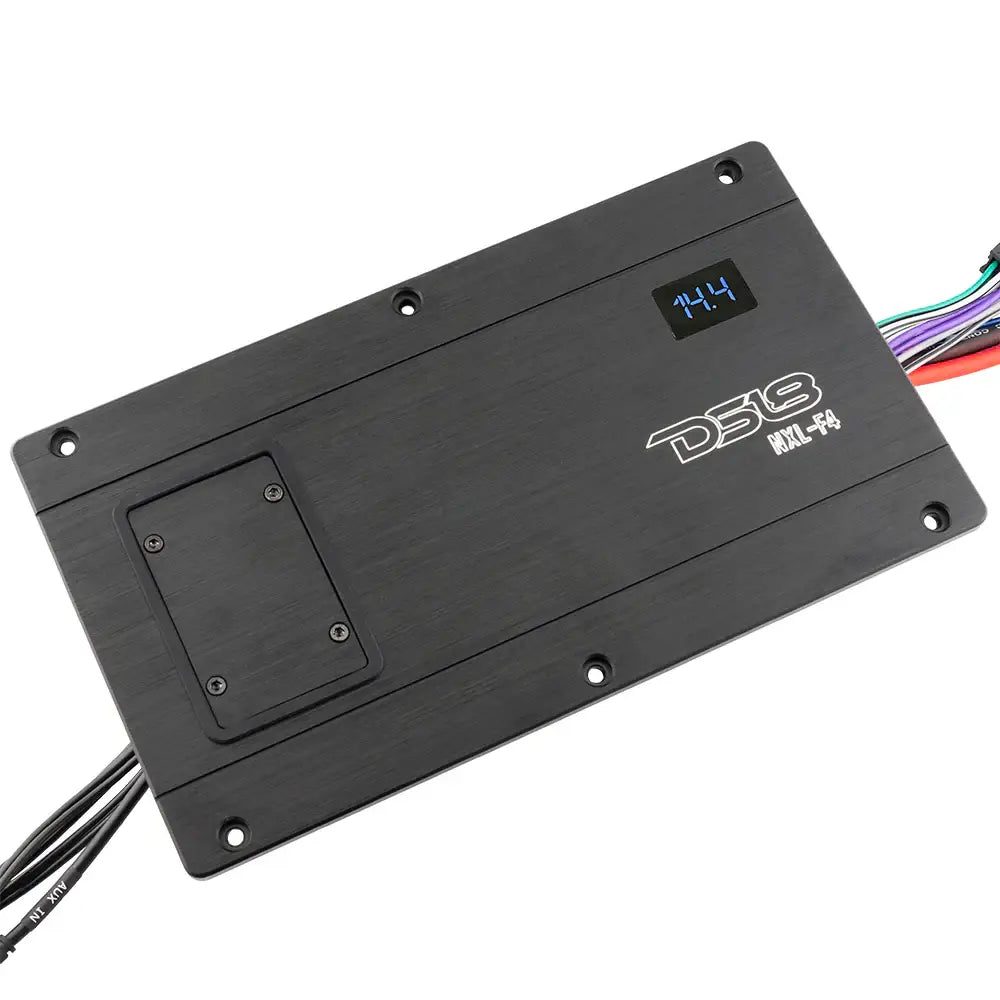

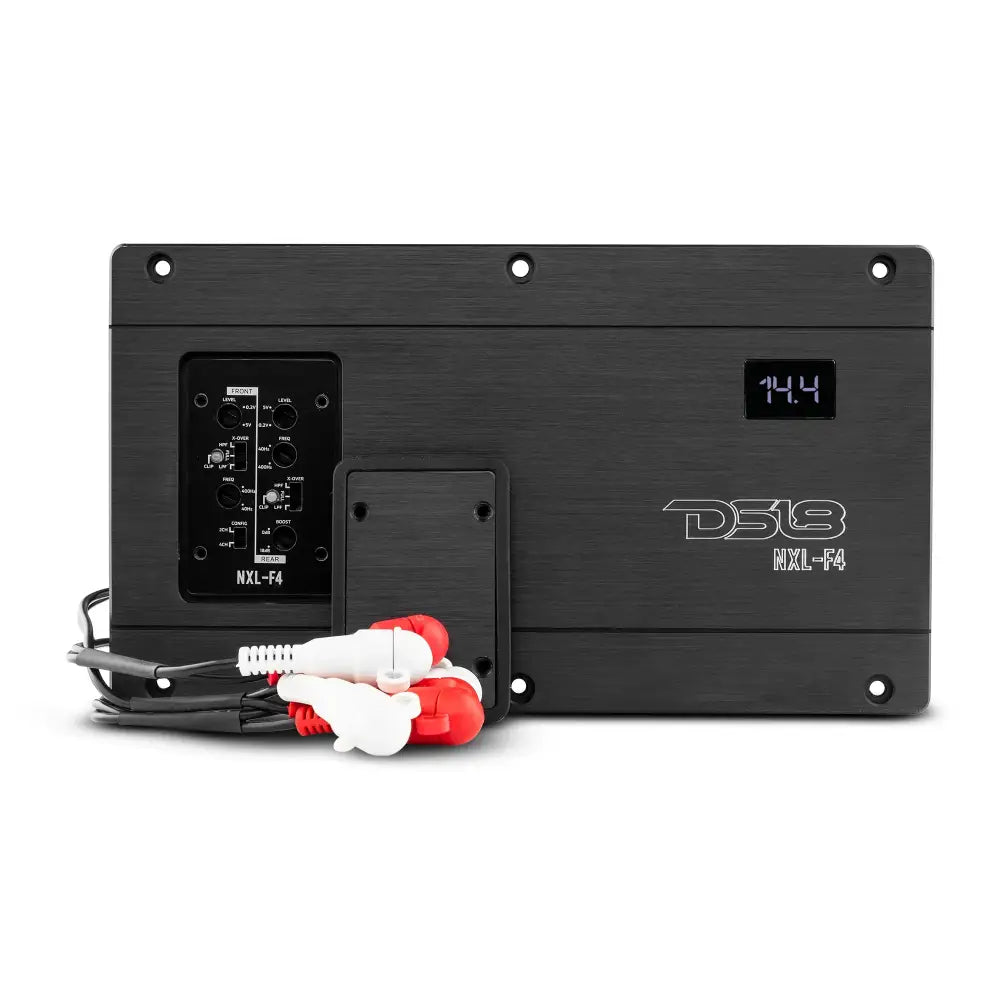

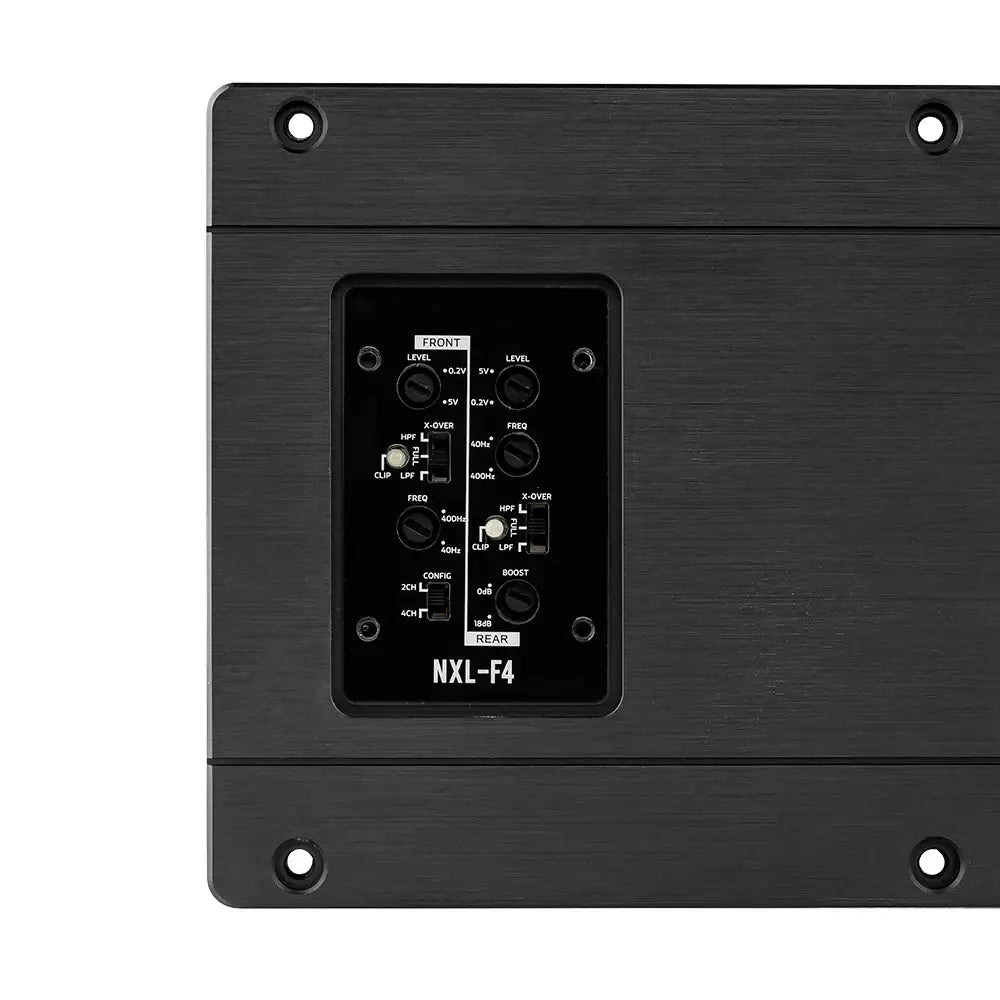

NXL 4-Channel Full-Range Class D IP67 Marine and Powersports Flush Mount Amplifier 4 x 100 Watts Rms @ 4-Ohm

NXL 4-Channel Full-Range Class D IP67 Marine and Powersports Flush Mount Amplifier 4 x 100 Watts Rms @ 4-Ohm

Regular price $527.94 USD
Regular price Sale price $527.94 USD
Sale Sold out

Flush Mount Full-Range Class D Marine 4-Channel Amplifier with Voltmeter 1200W

DS18’s NXL-F4 is the epitome of sleek design and powerful performance, specifically crafted to enhance your marine audio experience.
Designed to perfectly complement DS18 NXL series speakers, this amplifier delivers exceptional loudness and efficiency, making it the ultimate powerhouse for your marine audio system. Equipped with four channels, the NXL-F4 provides versatility by accommodating virtually any speaker within its power recommendations. No matter the size or type of speaker, the NXL-F4 guarantees optimal performance and an immersive sound experience.
Featuring a power output of 160Wx4CH at 2 ohms and 100Wx4CH at 4 ohms, the NXL-F4 offers impressive power capabilities to drive your speakers to their full potential.
The built-in voltmeter adds a convenient feature to monitor your battery's voltage levels directly from the amplifier itself. This allows you to keep track of your power supply and ensure that your audio system is operating at its peak performance.
Its compact dimensions of 238 x 135 x 41mm make it easy to install in tight spaces without sacrificing power or functionality. With its flush mount configuration, the NXL-F4 allows you to maintain a clean and seamless installation.
Elevate your marine audio experience with DS18’s NXL-F4!

  • Marine Full Range
  • 4 Channel
  • 4 x 100 Watts @ 4 Ohm
  • Class D
  • Flush Mount
  • Water Resistant IP67

KEY FEATURES

4 CHANNELS

4 CHANNELS

FULL-RANGE

FULL-RANGE

CLASS D

CLASS D

FLUSH MOUNT

FLUSH MOUNT

IPX67 RATING

IPX67 RATING

BUILT-IN VOLTMETER

BUILT-IN VOLTMETER


GENERAL SPECS

SKU
NXL-F4
POWER OUTPUT 2 Ω
160Wx4CH
POWER OUTPUT 4 Ω
100Wx4CH
BRIDGE POWER OUTPUT AT 4 Ω
320Wx2CH
TOTAL HARMONIC DISTORTION
<0.1%
S/N RATIO REF 1W AT 4 Ω
90dB
GAIN RANGE
0.2-6V


SPECS 2

CROSSOVER RANGE
40-400Hz
FREQUENCY RANGE
20-20KHz
BASS BOOST
0-18dB (REAR CHs)
FORCED COOLING SYSTEM
N/A
BASS REMOTE CONTROL
N/A
TOPOLOGY OPERATION
FULL RANGE DIGITAL


MEASUREMENTS

DIMENSIONS(MM)
238 x 135 x 41
Product Weight
4.5 lbs
Product Dimensions
11.5 x 7.5 x 4.25
M/C Weight
18 lbs
