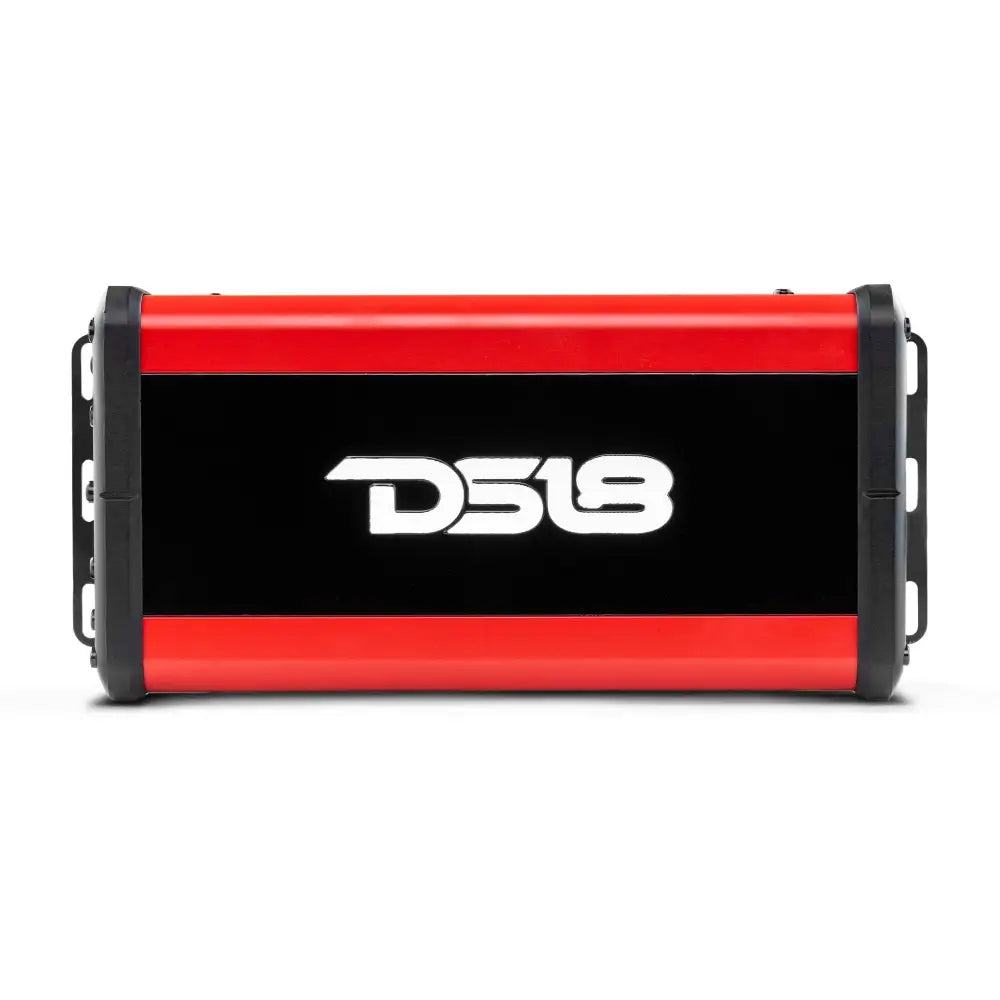

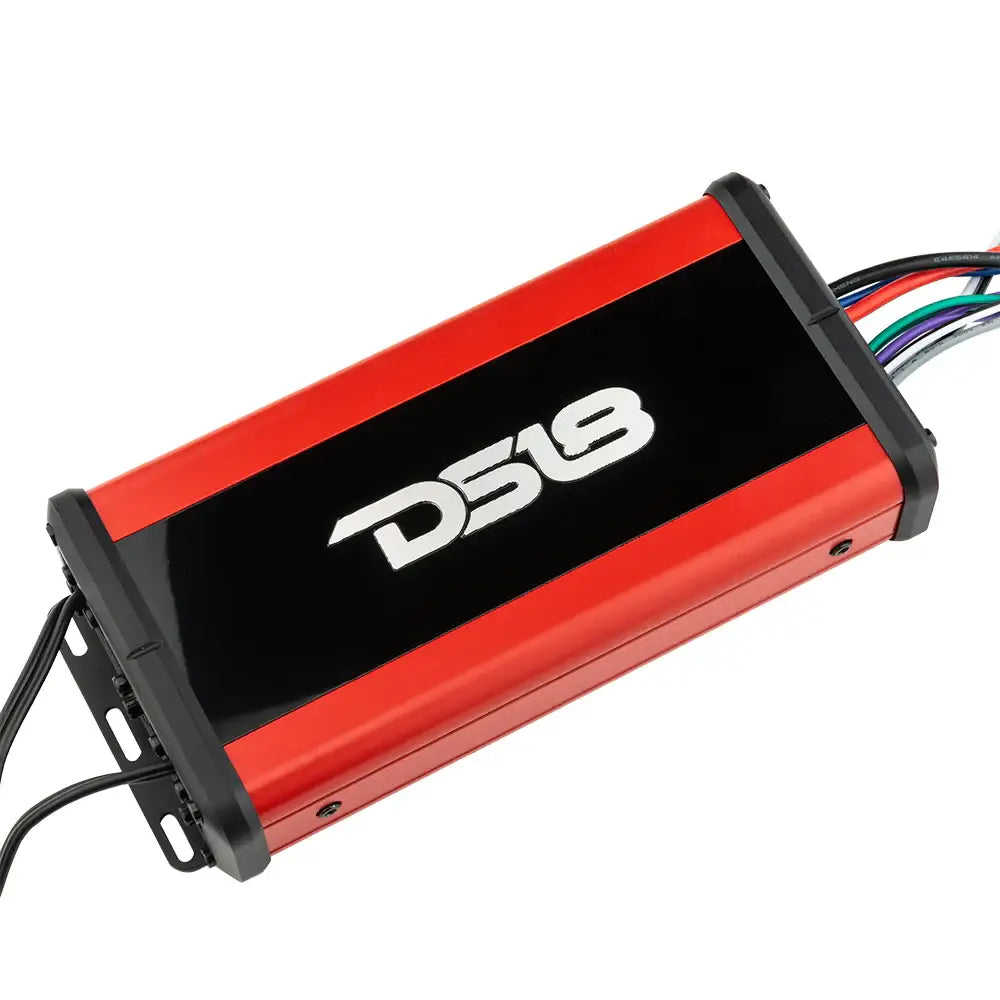

NXL 4-Channel Full-Range Class D IP67 Marine and Powersports NANO Amplifier 4 x 100 Watts Rms @ 4-Ohm 1800 Watts Peak

Nano Full-Range Digital Marine 4-Channel Amplifier 4 x 100W @ 4-Ohm RMS

DS18’s NXL-N4 is the ultimate power solution for audio enthusiasts on the move. Whether you're hitting the open road on your bike, tearing through rough trails on your side by side, or cruising the open waters, this waterproof rated amp delivers exceptional performance in a compact package.
DS18's NXL-N4 is designed to power your entire system with efficiency and precision. With a 4-channel configuration these amplifiers provide versatility for all your speaker setups. Thanks to the full range capability of this amplifier, you can run them on subs, mids, or tweeters.
Built with a stable and reliable 4-layer PCB layout design, the NXL-N4 ensure consistent performance even in challenging conditions. Rated IP67 for powersports applications, they are fully waterproof and ready to withstand the harshest environments. Plus, their ultra-compact size makes installation a breeze, fitting seamlessly into any setup.

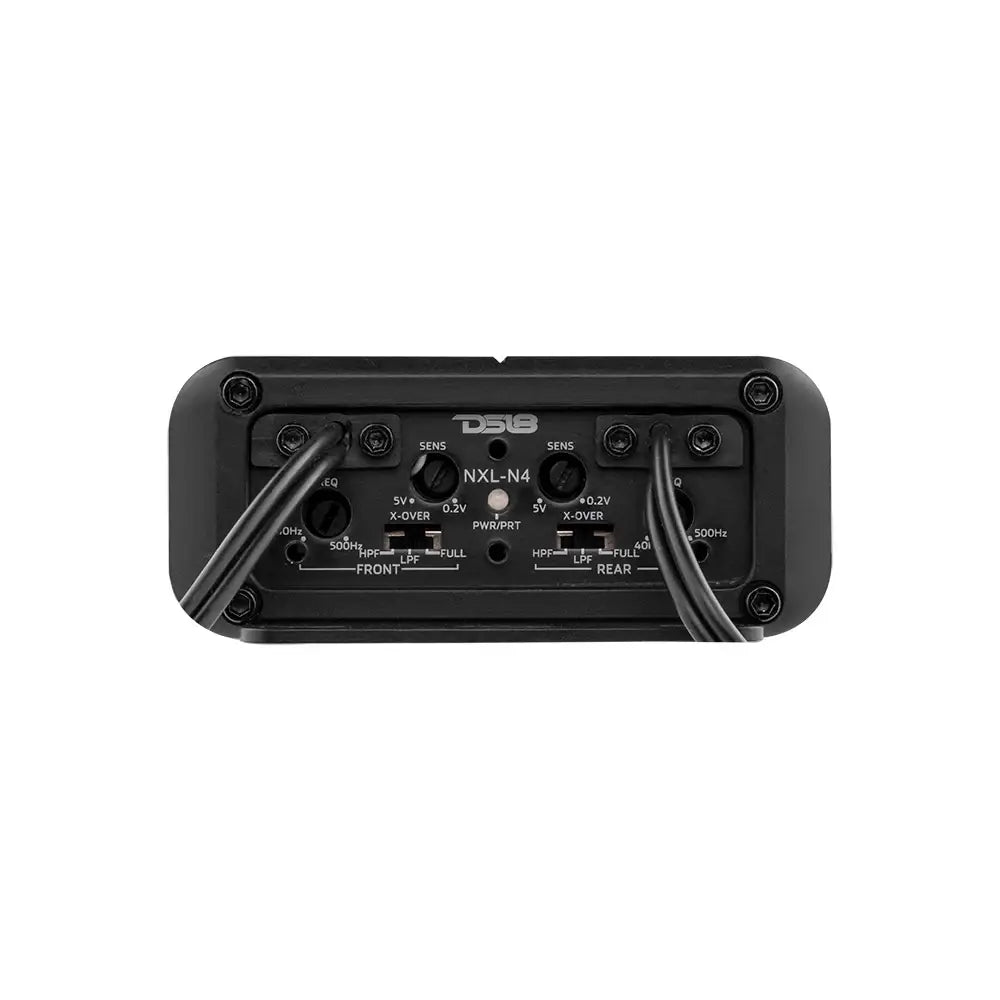

The selectable X-Over feature allows you to customize your audio experience with options like LPF (Low Pass Filter), FULL range, and HPF (High Pass Filter), giving you full control over your sound.
Featuring a max power of 1800W and a frequency response of 20Hz - 20KHz, this amplifier delivers rich and immersive sound across all frequencies. With 4 x 150W of RMS power at 2 Ohms and 4 x 100W of RMS power at 4 Ohms, you can enjoy crystal-clear audio with plenty of volume.
Experience the DS18 difference with DS18’s NXL-N4 Full-Range 4-Channel Marine Amplifier.

• Marine Full Range
• 4 Channel
• 4 X 100 Watts @ 4 Ohm
• Class D
• Micro
• Water Resistant IP67

4 CHANNELS

FULL-RANGE

CLASS D

NANO SIZE

IPX67 RATING

LED INDICATOR

TECHNICAL DATA

DOWNLOAD THE USER MANUAL

GENERAL SPECS

SKU
NXL-N4
Total Watts (Peak)
1800W
RMS Power @ 4 ohm
4x100W
RMS Power @ 2 ohm
4x150W
RMS Power @ 4 ohm Bridge
2x300W

AUDIO

Frequency Response
20Hz-20KHz
Signal to Noise Ratio 1W @ 4Ω
90dB
Total Harmonic Distortion (THD)
0.1%
Low Level Input Range
200mV-5V
Selectable X-Over
HPF/LPF/FULL
X-Over Filter Range
40-500Hz
Bass Boost Range
No
Infrasonic Filter
No

FEATURES 1

Amplifier Class
Digital
Amplifier Type
Stereo Full Range
Number of Channels
4
Minimum Impedance
2ohm (Stereo) / 4ohm (Bridge)
LED Indicator
Power / Protection

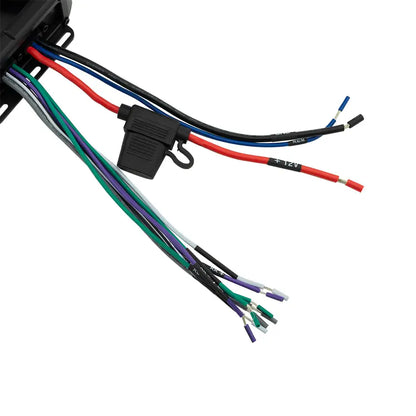

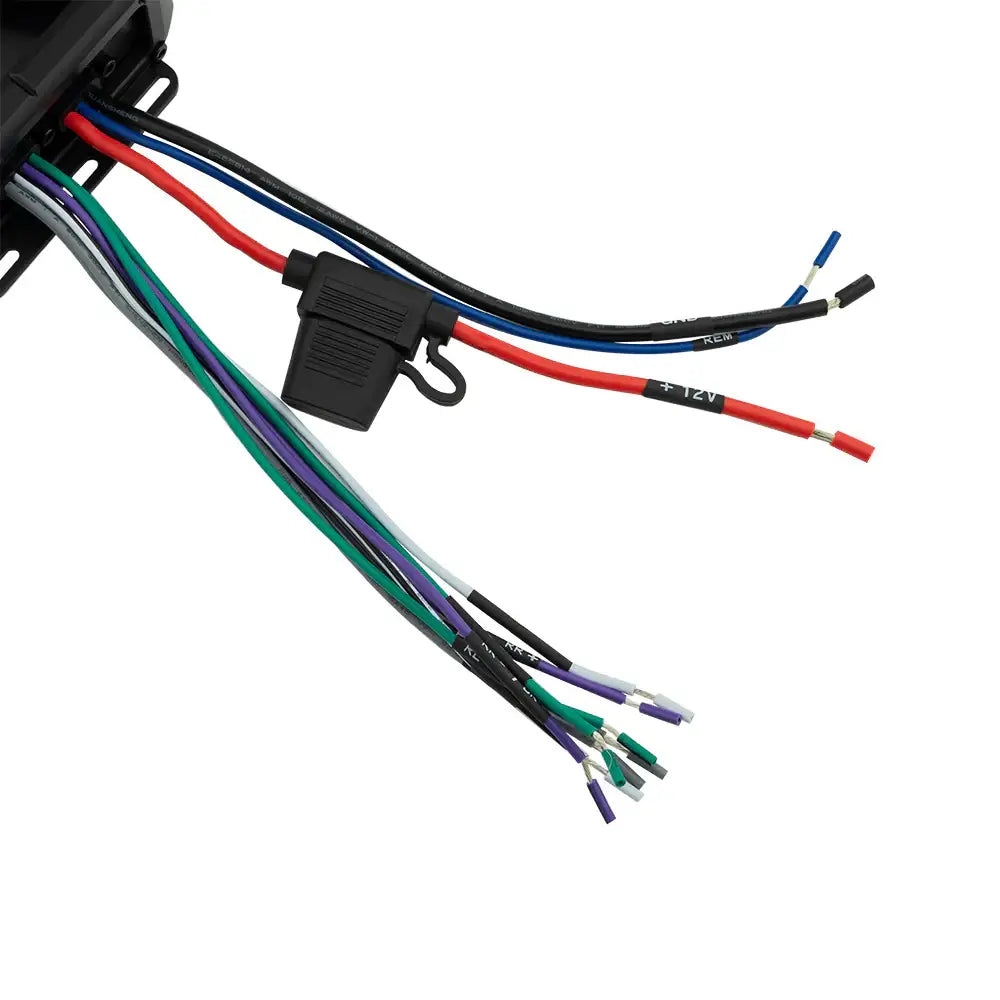

Power Input Size
Wired 10Ga OFC
Fuse Size
25A
Thermal Protection
Yes

FEATURES 2

Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes (>15V)
Body Color
Aluminum Black and Red
Waterproof Rating
IPX67
Latest Full Range Digital Design Based on IR Platform
Yes
Ultra Compact Design for Easy Installation
Yes
PCB Design with Stable and Reliable 4-Layer Layout
Yes
Quality Control Verification Using AP Instruments
Yes

MEASUREMENT

Overall Length
7.87" / 200mm
Overall Wide
3.67" / 93.4mm
Overall Height
1.56" / 39.8mm
Heatsink Length
7.16" / 182mm
