6.5" 2-Way Coaxial Marine Speaker With LED RGB Lights 100 Watts Rms 4-Ohm - White
DS18’s HYDRO NXL-6M/WH will blow you away with the unmatched innovation of DS18’s Marine Speakers.
Engineered with precision, these speakers have a robust IP65 waterproof rating, ensuring they can withstand even the most extreme elements. Available in both white and black, they seamlessly blend with any vehicle's accents for a polished look. DS18 takes pride in their exclusive mesh grill design, providing optimal protection without compromising on style. DS18’s NXL-6M’s are UV stable and constructed with high-temp injection molded composite materials, ensuring long-lasting durability.
Experience exceptional sound quality like never before. DS18’s NXL-6M speakers deliver a rich and full-bodied audio experience that is unparalleled in open-air environments. Equipped with an integrated tweeter and mid-range woofer, these speakers offer an impressive range of frequencies from 45Hz to 23KHz for a truly immersive sound.
But what truly sets these speakers apart is their integrated RGB lighting. Illuminating the waterproof cones, this feature allows you to customize your sound system and create a captivating ambiance. With the optional LED BTC (sold separately), you have complete control over the colors that light up your nights.
Choose DS18’s HYDRO NXL-6M/WH and enjoy the perfect fusion of high-performance sound and unbeatable design!
- 6.5" 2-Way Marine Speaker
- RMS Power: 100 Watts
- Impedance: 4 Ohm
- Ferrite & Neodymium Magnets
- RGB LED Light
- Water Resistant IP65
KEY FEATURES

6.5" DIAMETER

2-WAY COAXIAL

4 OHM

IP65 WATERPROOF RATING

BUILT IN TWEETER

RGB LED LIGHTS
TECHNICAL DATA
DOWNLOAD THE USER MANUAL
SPECS
SKU
NXL-6M/WH
Nominal Diameter
6.5" / 165mm
Nominal Impedance
4 Ohm
RMS Power Handling
100W
MAX Power Handling
300W
Sensitivity (1w/1m)
91dB
Frequency Response
45Hz-23KHz
Recommended HI Pass Crossover
65 Hz
Body / Features
UV Compliant
Yes, 100% Stable
Marine Grade Type
IP65
RGB LED
Yes, RGB integrated
Grill Type
Injection Molded Composite ASA with 316 Stainless Steel mesh
Pair
Yes
Color / Finish
Glossy White
Woofer Specifications
Voice Coil Diameter
1.2" / 30.5mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Injection Molded Polypropylene + UV Compliant
Surround Material
Butyl (Rubber)
Basket Material
High Temp Injection Molded Composite ASA with UV Protection coating
Magnet Material
Ferrite+Neodymium
Magnet Weight
14oz + 0.32oz
Tweeter Specifications
Nominal Diameter
1" / 25.4mm
Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Titanium + PEI Surround
Magnet Material
Neodymium (N38H)
Magnet Weight
0.54oz
Thiele & Small Parameters
Equivalent Volume Vas
20L / 0.708ft3
Excursion (one way) Xmax
8.5 mm
Free Air Resonance Fs
75Hz
Mechanical Factor Qms
7.823
Electrical Factor Qes
1.057
Total Factor Qts
0.931
Moving Mass Mms
4.122g
Compliance Cms
1.081mm/N
Bl Factor Bl
2.41
Voice Coil Inductance Le
0.543mH
Cone Area Sd
114.99cm2
DC Resistance Re
3.14 ohms
Efficiency Bandwidth Product EBP
70.9

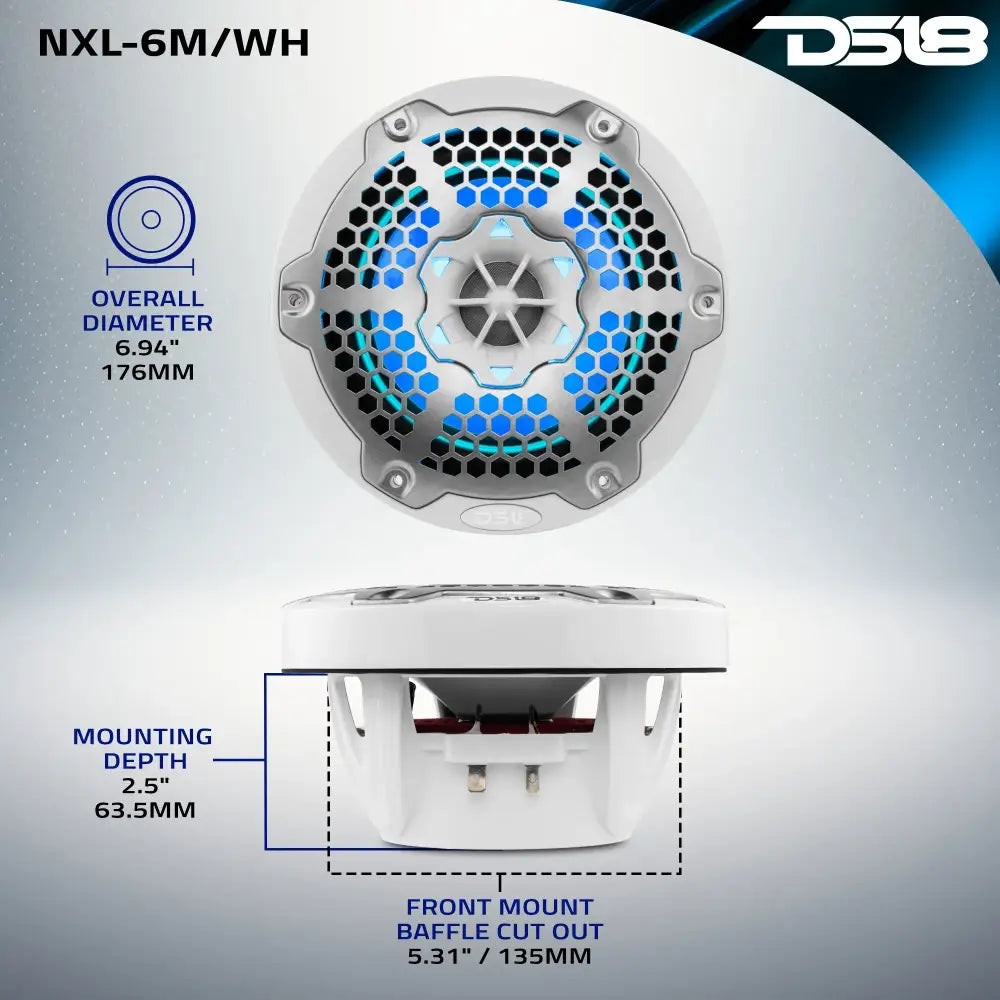

Speaker Measurement
Overall Diameter
6.94" / 176mm
Overall Depth
3.72" / 94.4mm
Front Mount Baffle Cutout
5.31" / 135mm
Mounting Depth
2.5" / 63.5mm
