Polaris RZR Glove Box 10" Subwoofer Enclosure 1200 Watts Carbon Fiber Subwoofer
Polaris RZR Glove Box 10" Subwoofer Enclosure 1200 Watts Carbon Fiber Subwoofer

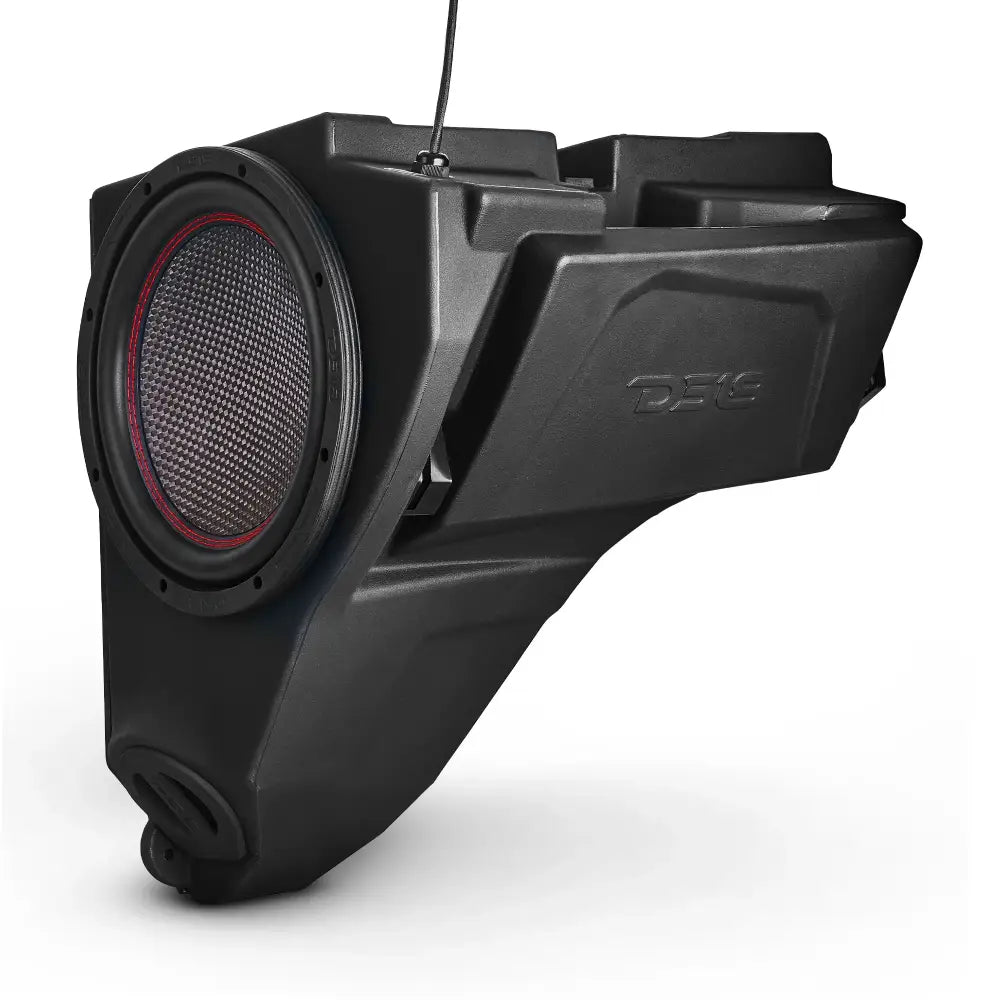

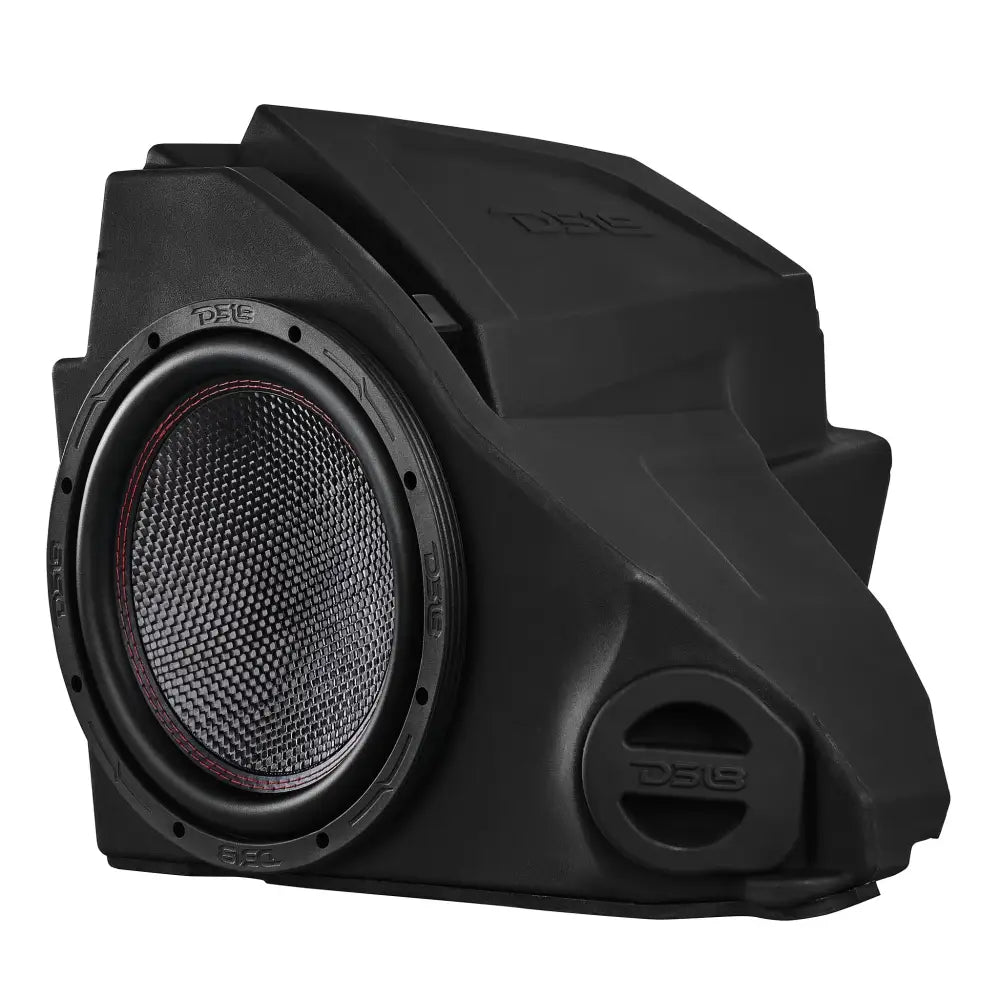

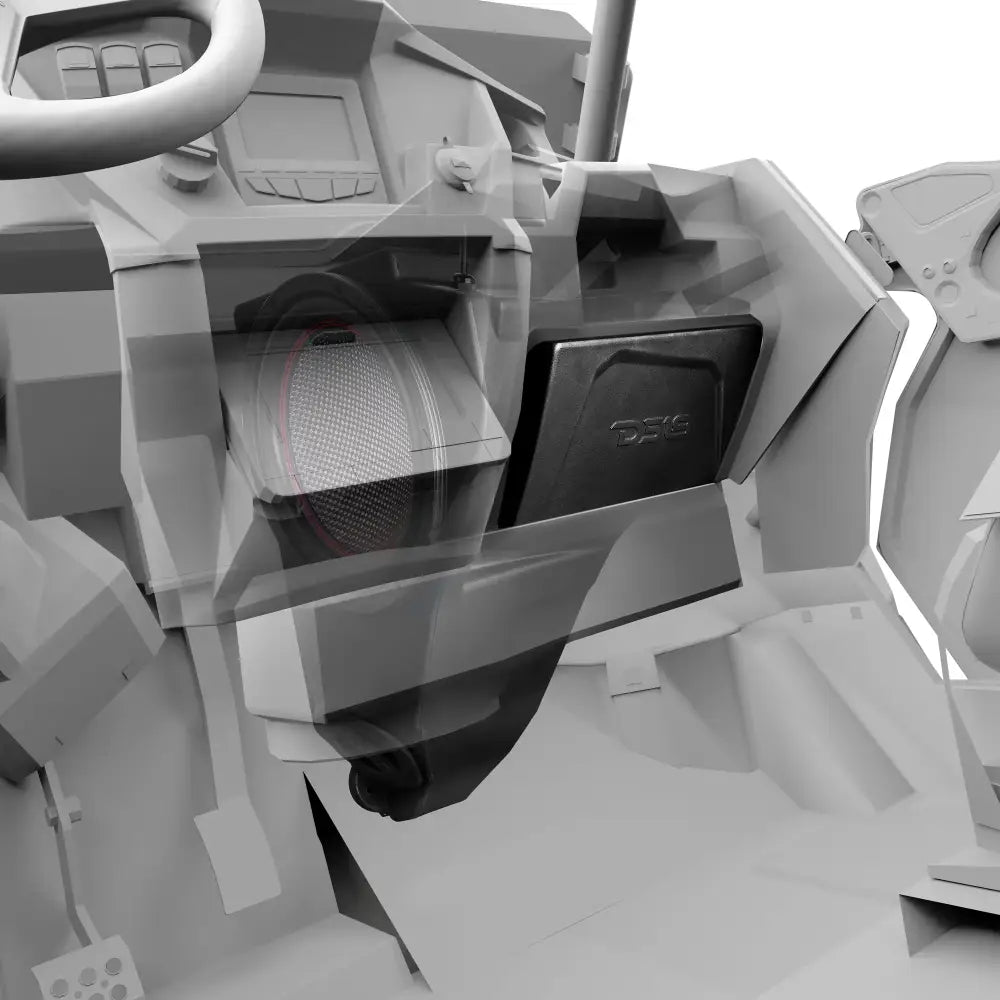

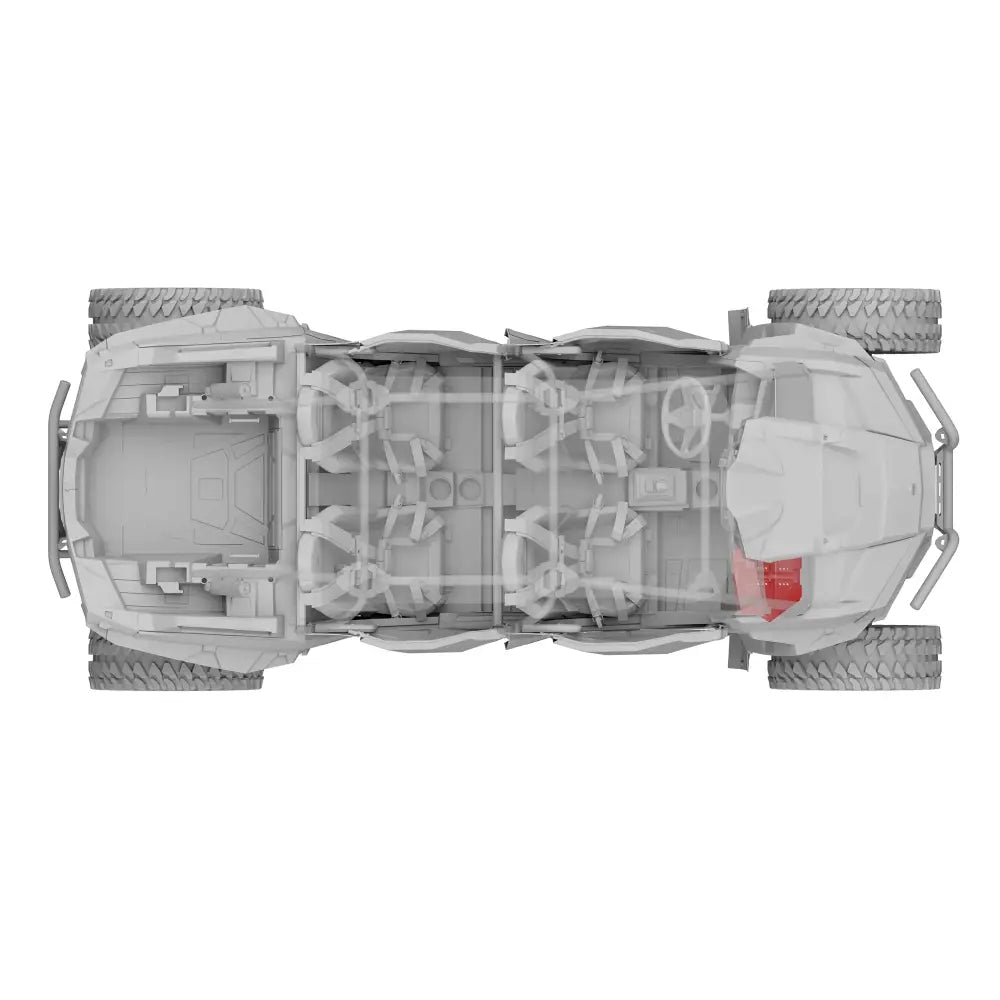

The Polaris RZR just got LOUDER with DS18’s RZR-GBSUB10LD: This 10" Loaded Subwoofer Enclosure fits perfectly in the RZR’s Glove Box and delivers powerful bass in a weather-resistant design. Its direct OEM texture and fit ensure perfect integration into your RZR, so you don’t have to think too hard when thinking outside!

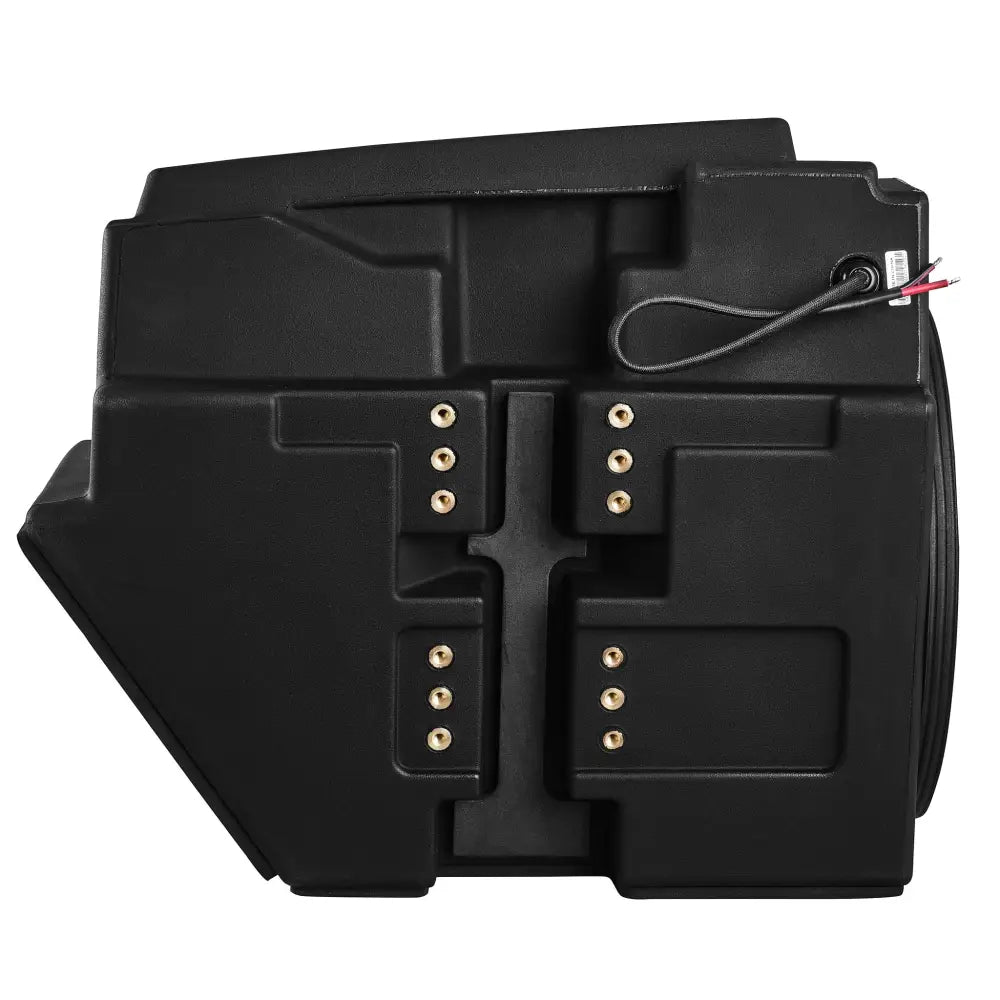

With a 10" 1200W water-resistant subwoofer, this enclosure delivers deep, impactful bass that resonates. The included mounting brackets and screws minimize the mounting depth guaranteeing a hassle-free installation with no cutting or modifications needed.
This subwoofer enclosure has a nominal impedance of 2 ohms and RMS power handling of 600W, allowing it to handle even the most demanding systems. Its sensitivity rating of 92dB allows crystal-clear reproduction, while its frequency response of 25Hz-250Hz captures every drop accurately.

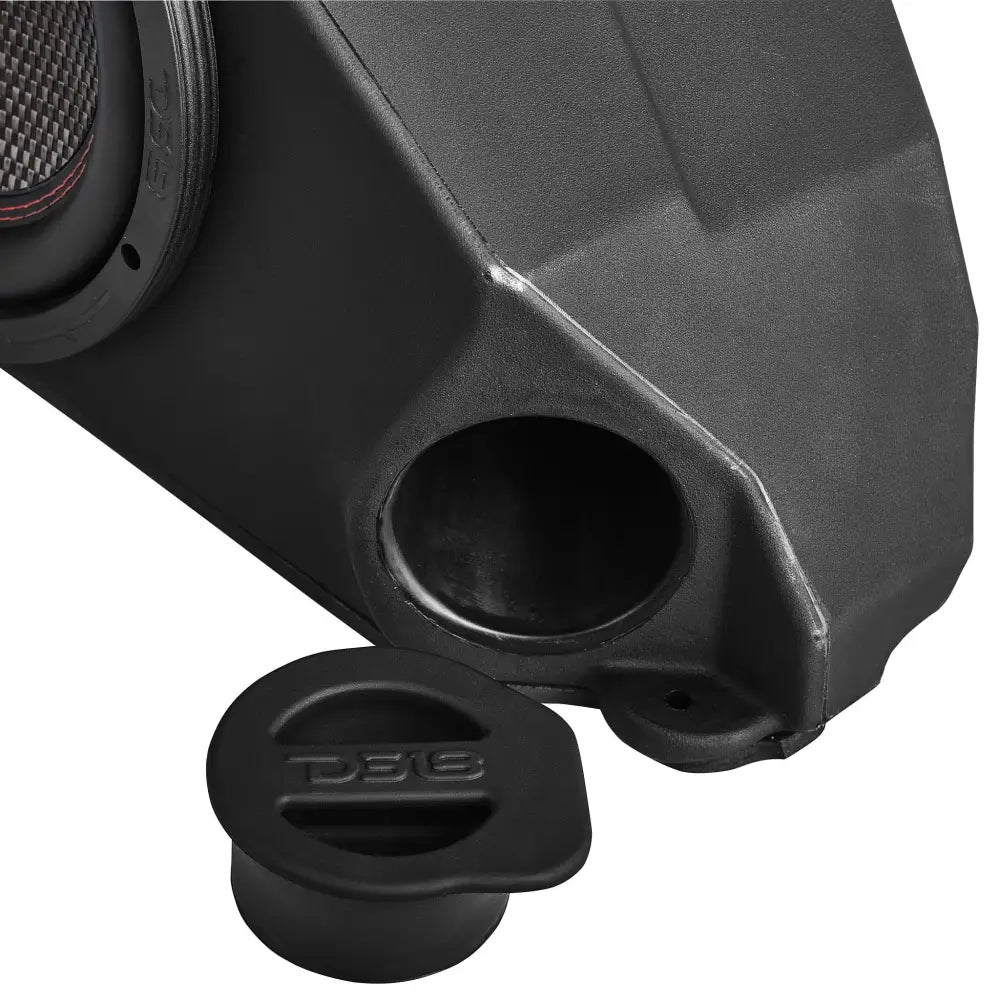

DS18’s RZR-GBSUB10LD has a range of impressive features: like the included port plug cover, adding an extra layer of protection when not in use. Or the enclosure material, also made from durable polyethylene (PE) and marine-grade IP65 rated, providing excellent protection against the elements on any trail!

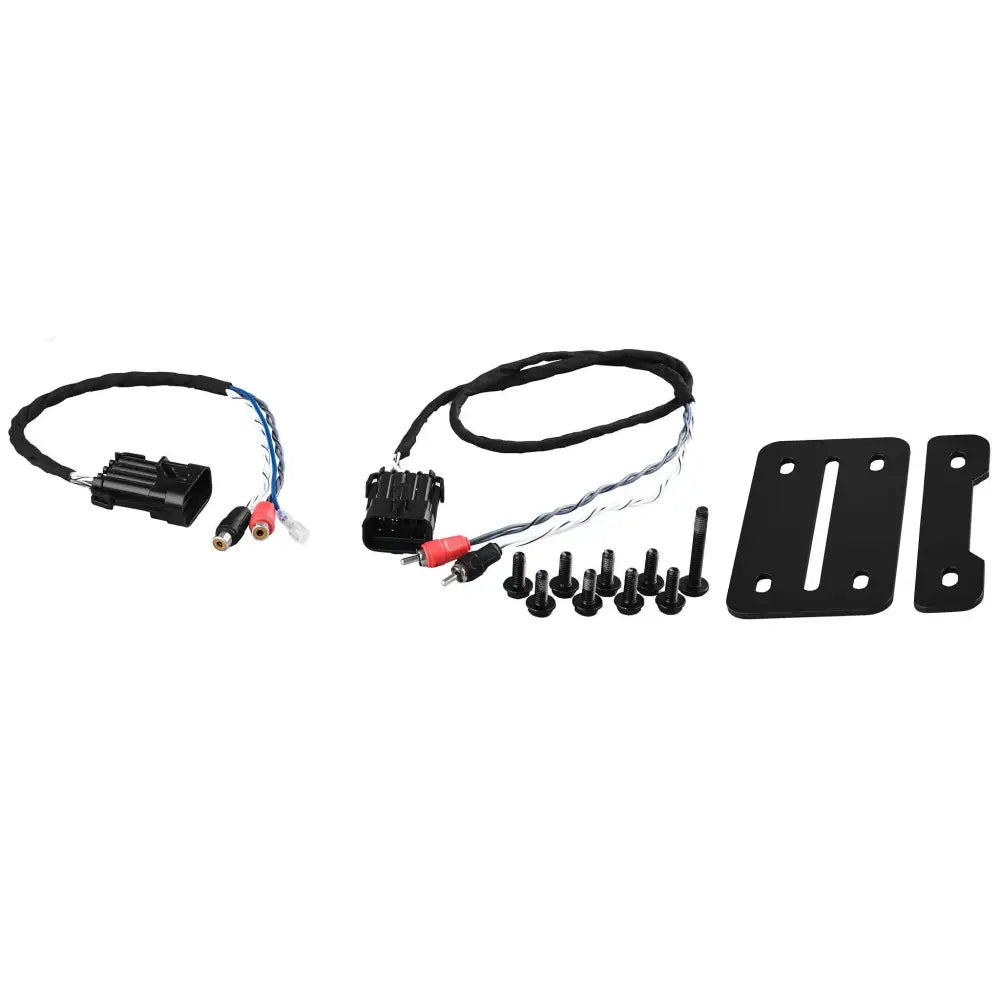

Provided are two Ride Command Harnesses to connect the RZR-GBSUB10LD to your RZR’s Ride Command Center for easy amplifier installation. One comes with a remote and RCA output: this is used for your subwoofer. The other harness is a full range audio output used for audio signal only.
- Loaded Subwoofer Enclosure
- OEM Fit - RZR 2014 - 2023
- Glove Box Compartment Complete Replacement
- 1 X 10" ~ 600 Watts RMS ~ 92dB
- Mounting Hardware & Ride Command Harnesses Included
- Water Resistant IP65
KEY FEATURES
For Polaris RZR
Glove-box 10” loaded subwoofer enclosure
IP65 Rating
10” water resistant subwoofer Included
DIRECT OEM FITMENT
Carbon fiber subwoofer cone
TECHNICAL DATA
DOWNLOAD THE USER MANUAL
SPECS
SKU
RZR-GBSUB10LD
Nominal Diameter
10" / 254mm
Nominal Impedance
2 Ohms
RMS Power Handling
600W
MAX Power Handling
1200W
Sensitivity (1w/1m)
92dB
Frequency Response
25Hz-250Hz
Recommended Low Pass Crossover
120Hz
Body / Features
Enclosure Material
Polyethylene (PE)
Marine Grade Type
IP65
Sold in Pair or Single
Single
Color / Finish
Black
Port Plug Cover
Yes (Rubber)
Direct OEM Fit
Yes
Woofer Specifications
Voice Coil Diameter
2" / 50.8mm
Voice Coil Former Material
Black Aluminum
Winding Material
SV
Cone Material
Non-Pressed Paper
Dust Cap Material
Carbon Fiber
Surround Material
Rubber
Basket Material
Steel
Magnet Material
Ferrite
Magnet Weight
81 Oz
Thiele & Small Parameters
Equivalent Volume VAS
23.67L / 0.835ft3
Excursion (one way) XMAX
21mm
Free Air Resonance FS
37Hz
Mechanical Factor QMS
5.07
Electrical Factor QES
0.76
Total Factor QTS
0.66
Moving Mass MMS
140.16g
Compliance CMS
0.13mm/N
Bl Factor BI
9.26
Voice Coil Inductance LE
0.38mH
Diaphragm Area SD
352.99cm2
DC Resistance RE
2.01 ohms
Box Specifications
Sealed Internal Volume
25.4L / 0.9ft3
Sealed Box Output Response F3
64Hz
Ported Internal Volume
25.4L / 0.9ft3
Port Size *Round (Diameter x Length)
2.75" x 11.8" / 70x300mm
Port Tuning Frequency FB
36Hz
Ported Box Output Response F3
32Hz
Box Measurement
Overall Height
16.9" / 430mm
Overall Depth
14.17" / 360mm
Overall Wide
16.9" / 430mm
