Portal Gear Lift 4'' Maverick X3 MAX - 15% Dual Idler

High Lifter Portal Gear Lift (Each kit includes 4 portal boxes)

15% & 30% Dual Idler Reductions

What does the Dual Idler Gear Lift offer?

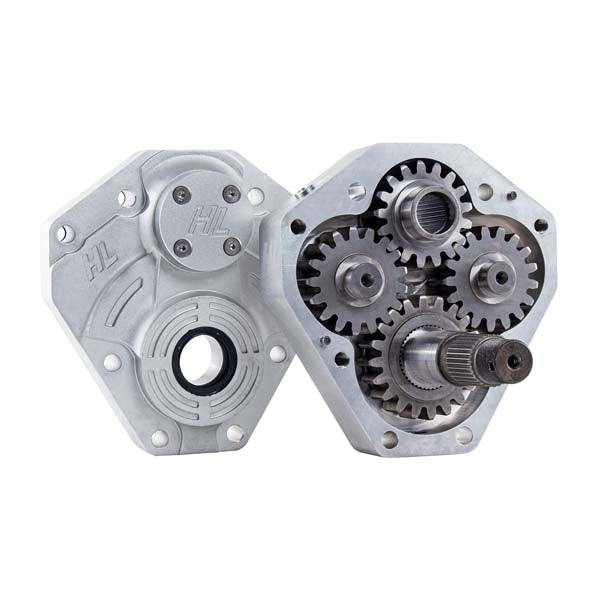

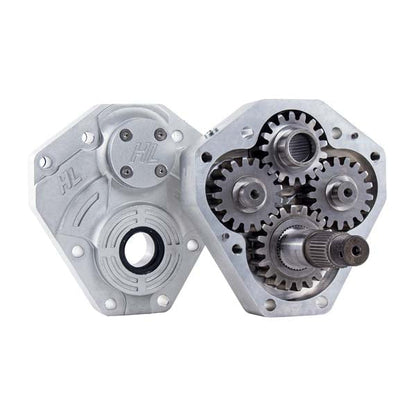

High Lifter improved the portal design by adding a second idler gear in the gear box
The dual idler gears spread the load over twice as many teeth on the gear sets, which doubles the area and reduces stress by half.
You gain more reliable torque transfer
Stop burning up belts and breaking so many axles; differentials; drive shafts; snorkel gears…

Gear reduction extends brake life by needing brakes less often due to greatly improved engine braking
Even though a lower gear ratio will get your speedometer closer to a stock reading, that is still too high a gear to offset the loss of torque caused by the larger tires. If you don’t have a need to run fast, a lower ratio performs better and give you the power you want!
Why is this 4” kit better than our competitor?

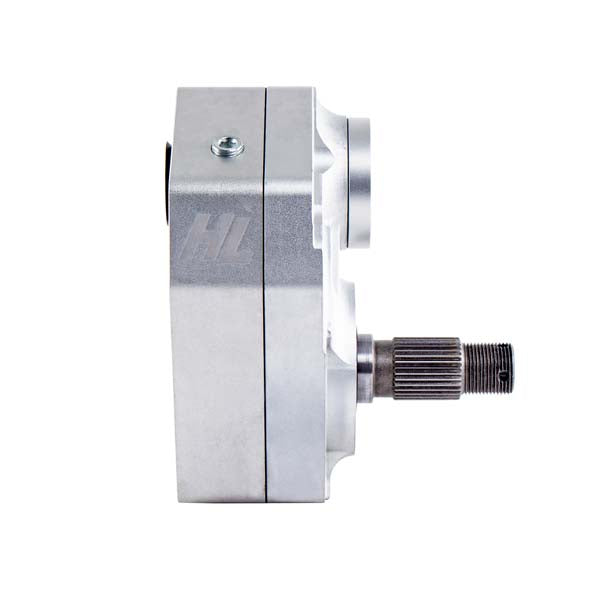

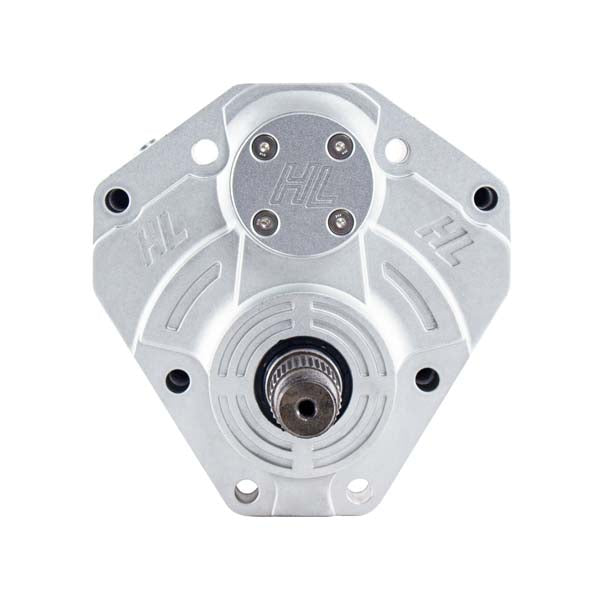

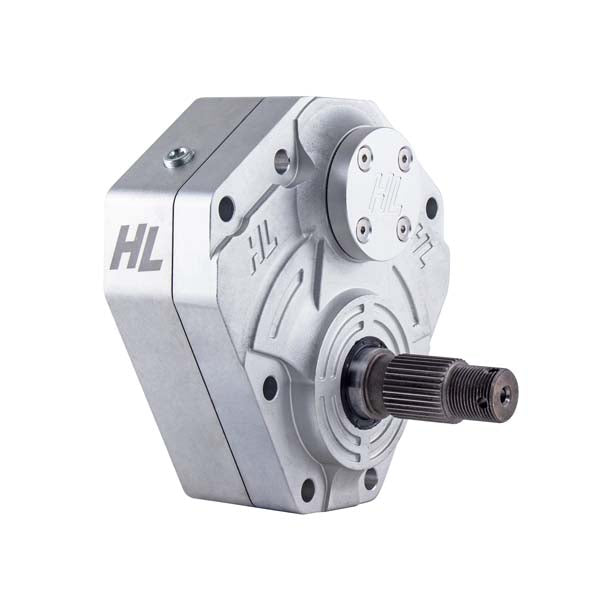

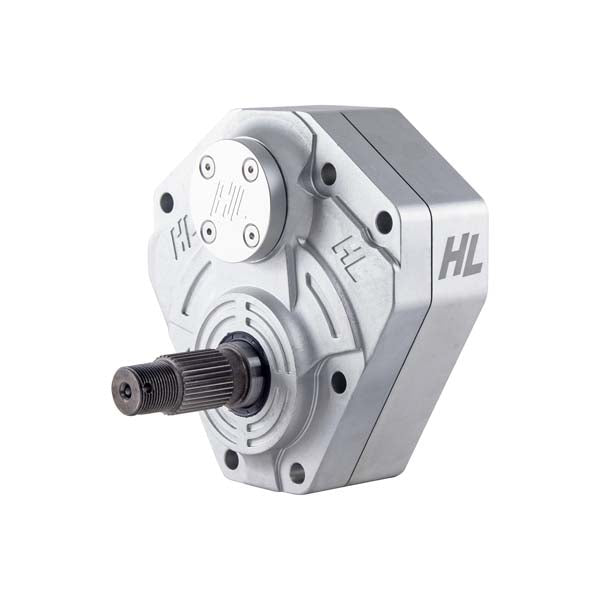

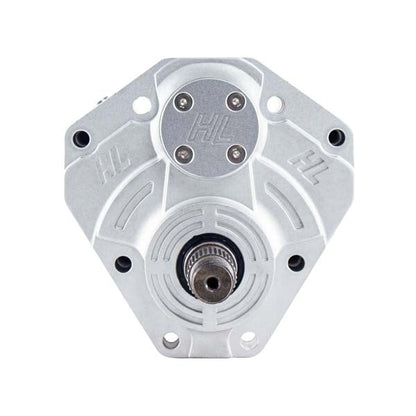

Forged Gear Boxes

Strongest boxes on the market because forging produces a tougher piece of metal
Forging is stronger than both cast and billet aluminum
Competitors use cast aluminum and billet aluminum boxes
These portal boxes are extremely robust and give you more worry-free miles than any other portal
Gear Box Venting

Customers asked for box venting and we give you the option
Our box design offers a plug for venting with an optional easy to install kit that will be available soon
Vent kits allow an advantage of cooling which reduces early deterioration of the gaskets and seals
Gasket Material and Design

High density Kevlar fiber gaskets plus no additional sealant is needed
Gasket material is creep resistant plus oil and coolant resistant

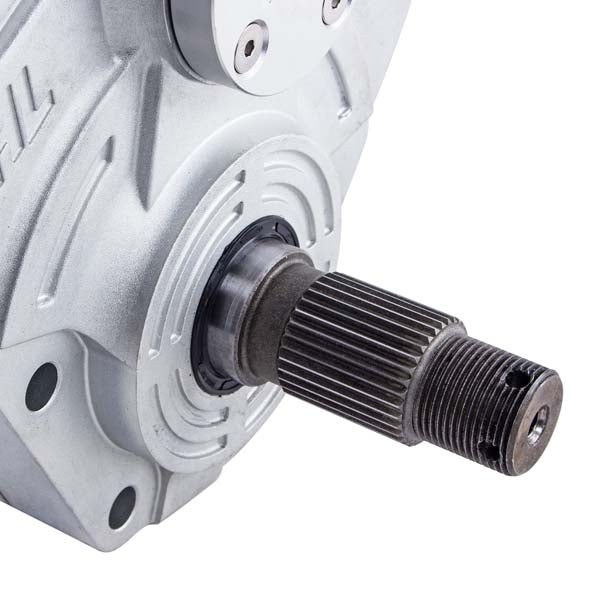

Seals

Two oil seals on the spindle shaft for 100% more sealing area
Dual seals prevent water intrusion and oil leaks
True triple seal on the input shaft which includes a wiper seal that provides a significant extra layer of protection
Backing Plate

These are the strongest backing plates on the market
5/16” steel plate with Bent flanges for strength and durability Okay
Welded gusset brackets and designed to factory off-set
Works with all control arms that are built to factory hub specifications
Rotors

Precision ground stainless steel rotors (this is a big deal for brake performance)
Access holes for ease of assembly and disassembly
Slotted rotor allows for heat dissipation and cooling
Gear Profile

Alloy steel heat treating process increases overall internal and external strength
CNC precision ground machining ensures excellent fitment and increased strength
Controlled gear lapping for ease of installation and a quieter performance

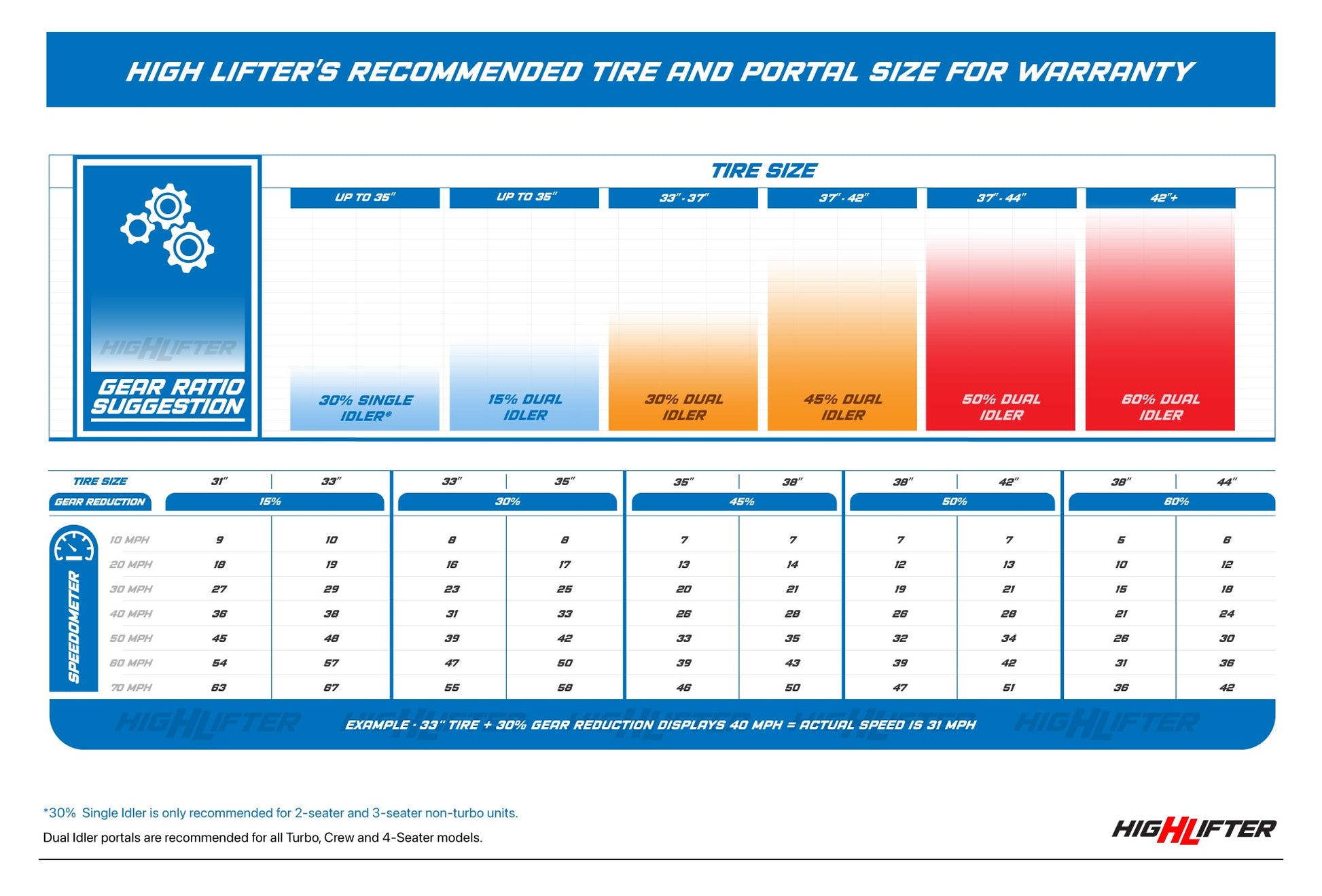

Tire Fitment:
Largest Tire with Portal: 33"
Largest Tire with Forward Arms: 35"
Our stated tire fitment guide is a general fitment and is in no way guaranteed. Tires and lifts vary by manufacture and tire fitment can be affected by other modifications. Always verify your brand of tires, lift, and other modifications prior to making a buying decision.

Wheel Requirements:
14" or larger
14" factory wheels must run 1" spacer
14" & 15" can not exceed 4-1/2" backspacing
16" & larger can not exceed 5" backspacing

Fitment:

2022 Can-Am Maverick X3 MAX XRS Turbo RR Smart Shox
2022 Can-Am Maverick X3 MAX DS Turbo 64
2022 Can-Am Maverick X3 MAX DS Turbo RR 64
2022 Can-Am Maverick X3 MAX XDS Turbo RR 64
2022 Can-Am Maverick X3 MAX RS Turbo RR 72
2022 Can-Am Maverick X3 MAX XRS Turbo RR 72
2022 Can-Am Maverick X3 MAX XMR Turbo RR 72
2023 Can-Am Maverick X3 MAX DS Turbo 64
2023 Can-Am Maverick X3 MAX DS Turbo RR 64
2023 Can-Am Maverick X3 MAX RS Turbo RR 72
2023 Can-Am Maverick X3 MAX XDS Turbo RR 64
2023 Can-Am Maverick X3 MAX XMR Turbo RR 72
2023 Can-Am Maverick X3 MAX XRS Turbo RR 72
2023 Can-Am Maverick X3 MAX XRS Turbo RR Smart Shox
2017 Can-Am Maverick X3 MAX STD
2017 Can-Am Maverick X3 MAX XDS
2017 Can-Am Maverick X3 MAX XRS
2018 Can-Am Maverick X3 Turbo MAX
2018 Can-Am Maverick X3 Turbo R MAX
2018 Can-Am Maverick X3 Turbo R MAX XDS
2018 Can-Am Maverick X3 Turbo R MAX XRS
2019 Can-Am Maverick X3 Turbo MAX
2019 Can-Am Maverick X3 Turbo R MAX
2019 Can-Am Maverick X3 Turbo R MAX XDS
2019 Can-Am Maverick X3 Turbo R MAX XRS
2020 Can-Am Maverick X3 Turbo MAX
2020 Can-Am Maverick X3 Turbo R MAX XDS
2020 Can-Am Maverick X3 Turbo R MAX XRS
2020 Can-Am Maverick X3 Turbo RR MAX XDS
2020 Can-Am Maverick X3 Turbo RR MAX XRS
2020 Can-Am Maverick X3 Turbo RR MAX XMR
2020 Can-Am Maverick X3 Turbo R MAX
2021 Can-Am Maverick X3 Turbo MAX DS
2021 Can-Am Maverick X3 Turbo MAX R DS
2021 Can-Am Maverick X3 Turbo MAX R RS
2021 Can-Am Maverick X3 Turbo MAX RR XDS
2021 Can-Am Maverick X3 Turbo MAX RR XRS
2021 Can-Am Maverick X3 Turbo MAX RR XRS Smart-Shox
2021 Can-Am Maverick X3 Turbo MAX RR XMR
