Portal Gear Lift 6 Inch Maverick Sport, Defender & Commander STD Cab - 60% Dual Idler

What does the 60% Dual Idler Gear Lift offer?

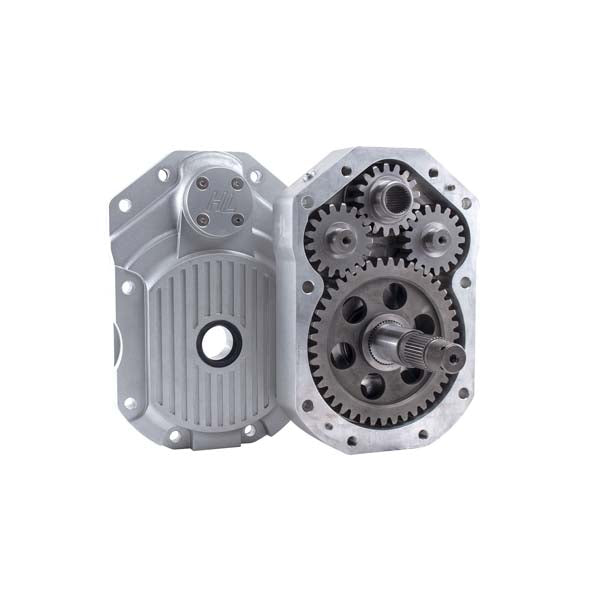

High Lifter improved the portal design by adding a second idler gear in the gear box
The dual idler gears spread the load over twice as many teeth on the gear sets, which doubles the area and reduces stress by half.
You gain more reliable torque transfer

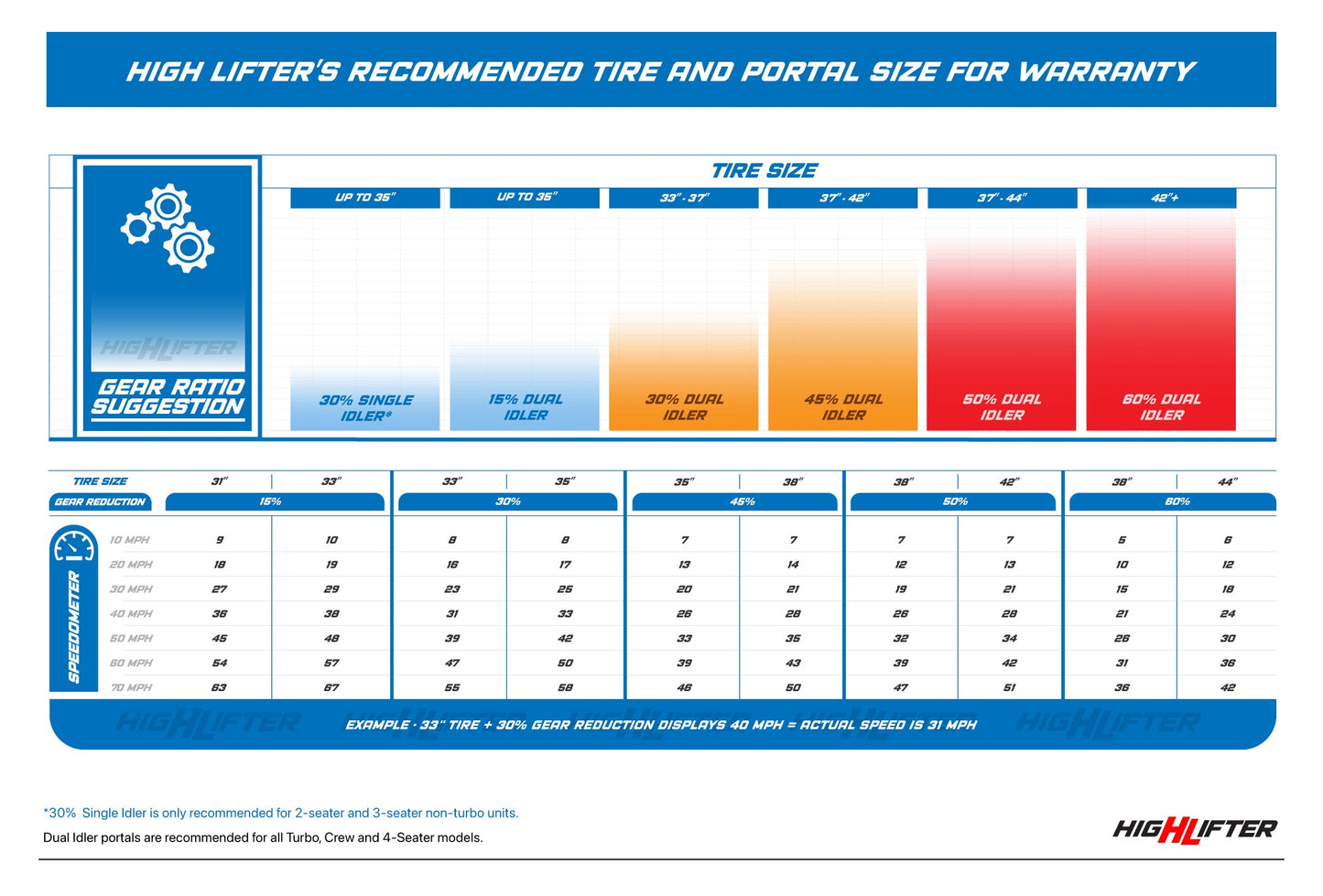

If you run a 40” tire or larger, this is the ideal gear ratio and the dual idler gears are almost a must
Stop burning up belts and breaking so many axles; differentials; drive shafts; snorkel gears…
60% Gearing extends brake life by needing brakes less often due to greatly improved engine braking
Even though a lower gear ratio will get your speedometer closer to a stock reading, that is still too high a gear to offset the loss of torque caused by the larger tires. If you don’t have a need to run fast, a lower ratio performs better and give you the power you want!
Why is this 6” kit better than our competitor?

Forged Gear Boxes

Strongest boxes on the market because forging produces a tougher piece of metal
Forging is stronger than both cast and billet aluminum
Competitors use cast aluminum and billet aluminum boxes
These portal boxes are extremely robust and give you more worry-free miles than any other portal
Gear Box Venting

Customers asked for box venting and we give you the option
Our box design offers a plug for venting with an optional easy to install kit that will be available soon
Vent kits allow an advantage of cooling which reduces early deterioration of the gaskets and seals
Gasket Material and Design

High density Kevlar fiber gaskets plus no additional sealant is needed
Gasket material is creep resistant plus oil and coolant resistant
Seals

Two oil seals on the spindle shaft for 100% more sealing area
Dual seals prevent water intrusion and oil leaks
True triple seal on the input shaft which includes a wiper seal that provides a significant extra layer of protection
Backing Plate

These are the strongest backing plates on the market
5/16” steel plate with Bent flanges for strength and durability
Welded gusset brackets and designed to factory off-set
Works with all control arms that are built to factory hub specifications
13” Rotor

Precision ground stainless steel rotors (this is a big deal for brake performance)
Access holes for ease of assembly and disassembly
Slotted rotor allows for heat dissipation and cooling
Gear Profile

Alloy steel heat treating process increases overall internal and external strength
CNC precision ground machining ensures excellent fitment and increased strength
Controlled gear lapping for ease of installation and a quieter performance 2022 Can-Am Commander 1000R DPS
2022 Can-Am Commander 1000R XT
2022 Can-Am Commander 1000R XT-P
2022 Can-Am Commander 1000R XMR
2022 Can-Am Maverick Sport 1000
2022 Can-Am Maverick Sport 1000R DPS
2022 Can-Am Maverick Sport 1000R XXC
2022 Can-Am Maverick Sport 1000R XMR
2022 Can-Am Maverick Sport 1000R XRC
2022 Can-Am Defender HD7
2022 Can-Am Defender HD9
2022 Can-Am Defender HD7 DPS
2022 Can-Am Defender HD9 DPS
2022 Can-Am Defender HD10 DPS
2022 Can-Am Defender HD9 XT
2022 Can-Am Defender HD10 XT
2022 Can-Am Defender HD9 CAB DPS
2022 Can-Am Defender HD10 Limited
2022 Can-Am Defender HD10 XMR
2023 Can-Am Commander 1000R XMR
2023 Can-Am Commander 1000R XT-P
2023 Can-Am Defender HD10 CAB DPS Limited
2023 Can-Am Defender HD10 XMR
2023 Can-Am Defender HD10 XMR w/Doors
2023 Can-Am Defender HD10 XT
2023 Can-Am Defender HD9
2023 Can-Am Defender HD9 CAB DPS
2023 Can-Am Defender HD9 DPS
2023 Can-Am Maverick Sport 1000R DPS
2023 Can-Am Maverick Sport 1000R XMR
2023 Can-Am Maverick Sport 1000R XRC
2023 Can-Am Maverick Sport 1000R XXC
2023 Can-Am Commander 1000 DPS
2023 Can-Am Commander 1000 XT
2023 Can-Am Defender HD10 Cab XT
2023 Can-Am Defender HD10 DPS
2023 Can-Am Defender HD10 Limited
2023 Can-Am Defender HD9 XT
2024 Can-Am Commander 1000 DPS
2024 Can-Am Commander 1000 XT
2024 Can-Am Commander 1000R XMR
2024 Can-Am Commander 1000R XT-P
2024 Can-Am Commander 700 DPS
2024 Can-Am Commander 700 XT
2024 Can-Am Defender HD10 Limited
2024 Can-Am Defender HD10 XMR
2024 Can-Am Defender HD10 XMR w/Doors
2024 Can-Am Defender HD9
2024 Can-Am Defender HD9 CAB DPS
2024 Can-Am Defender HD9 DPS
2024 Can-Am Defender HD9 XT
2024 Can-Am Defender PRO HD10 DPS
2024 Can-Am Defender PRO HD10 Limited
2024 Can-Am Defender PRO HD10 XT
2024 Can-Am Maverick Sport 1000R DPS
2024 Can-Am Maverick Sport 1000R XMR
2024 Can-Am Maverick Sport 1000R XRC
2024 Can-Am Defender HD10 DPS
2024 Can-Am Defender HD10 XT
2024 Can-Am Defender MAX HD10 DPS
2024 Can-Am Commander MAX 700 DPS
2019 Can-Am Maverick Sport 1000R DPS
2019 Can-Am Maverick Sport 1000 BASE
2019 Can-Am Maverick Sport 1000 DPS
2019 Can-Am Maverick Sport 1000R XRC
2019 Can-Am Maverick Sport 1000R XMR
2020 Can-Am Maverick Sport 1000R DPS
2020 Can-Am Maverick Sport 1000 BASE
2020 Can-Am Maverick Sport 1000 DPS
2020 Can-Am Maverick Sport 1000R XRC
2020 Can-Am Maverick Sport 1000R XXC
2020 Can-Am Maverick Sport 1000R XMR
2021 Can-Am Maverick Sport 1000 BASE
2021 Can-Am Maverick Sport 1000R DPS
2021 Can-Am Maverick Sport 1000R XMR
2021 Can-Am Maverick Sport 1000R XRC
2021 Can-Am Maverick Sport 1000R XXC
2021 Can-Am Commander 1000 XT
2021 Can-Am Commander 1000 DPS
2021 Can-Am Commander 1000 XT-P Warning Warning: This product can expose you to chemicals including Chromium, which is known in the State of California to cause cancer and birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov
