Portal Gear Lift 8 Inch Can-Am Defender - 60% Dual Idler

Why Choose High Lifter 8" Dual Idler Portals?

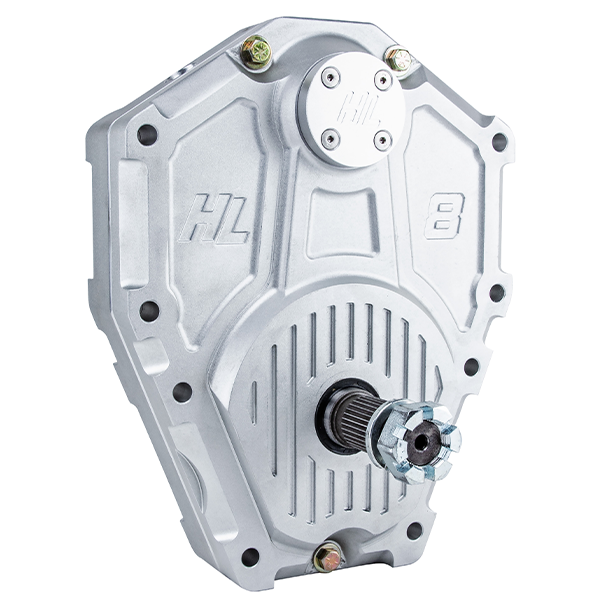

Forged Gear Boxes

The High Lifter Engineers chose forged gear boxed over billet because the process of forging eliminates the occurrence of porosity and cavities that can reduce strength in a part. With 8" portals, you want them to be strong; the tight grain structure in our gear boxes makes them mechanically stronger than the alternative! Take on any terrain because these boxes will handle the impact!

• These portal boxes are extremely robust and give you more worry-free miles than any other portal – a badass portal deserves a badass box!
• Strongest boxes on the market because forging produces a tougher piece of metal – It is what it is!
• Forging is stronger than both cast and billet aluminum which is used by the competitor.

Brake lines

• No need to replace factory brake lines, a brake line extension gives you an easier install and saves a lot of time!
  • Large advantage for Can-Am owners!

Gear Box Venting

• Customers asked for box venting, and we give you the option
• Our box design offers a plug for venting with an optional easy to install kit that will be available soon
• Vent kits allow an advantage of cooling which reduces early deterioration of the gaskets and seals

Gasket Material and Design

• High density Kevlar fiber gaskets plus no additional sealant is needed
• Gasket material is creep resistant plus oil and coolant resistant

Seals

• Two oil seals on the spindle shaft for 100% more sealing area
• Dual seals prevent water intrusion and oil leaks
• True triple seal on the input shaft which includes a wiper seal that provides a significant extra layer of protection

Backing Plate

• These are the strongest backing plates on the market
• 5/16" steel plate with bent flanges for strength and durability
• Welded gusset brackets and designed to factory off-set
• Works with all control arms that are built to factory hub specifications
• Backing plates have an offset or "CLOCKED" forward & rearward design so you can run BIG tires and not interfere with your clearance!

13" Rotor

• Precision ground stainless steel rotors (this is a big deal for brake performance)
• Access holes for ease of assembly and disassembly
• Slotted rotor allows for heat dissipation and cooling

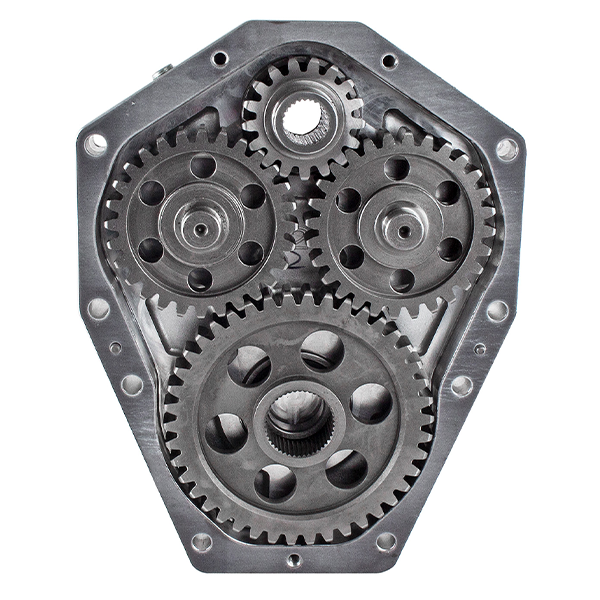

Gear Profile

• Alloy steel heat treating process increases overall internal and external strength
• CNC precision ground machining ensures excellent fitment and increased strength
• Controlled gear lapping for ease of installation and a quieter performance

Notes: Minimum wheel size is 22"; however, we recommend running a 24" wheel when installing 8" portals.

Fits:

2021 Can-Am Defender HD10 Limited
2021 Can-Am Defender MAX HD10 Limited
2021 Can-Am Defender HD10 DPS
2021 Can-Am Defender HD10 XT
2021 Can-Am Defender HD8
2021 Can-Am Defender HD8 CAB DPS
2021 Can-Am Defender HD8 DPS
2021 Can-Am Defender HD8 XT
2021 Can-Am Defender HD5
2021 Can-Am Defender HD5 DPS
2021 Can-Am Defender MAX HD10 DPS
2021 Can-Am Defender MAX HD10 Lone Star
2021 Can-Am Defender Max HD10 X MR
2021 Can-Am Defender MAX HD10 XT
2021 Can-Am Defender MAX HD8
2021 Can-Am Defender MAX HD8 DPS
2021 Can-Am Defender MAX HD8 XT
2021 Can-Am Defender HD10 PRO DPS
2021 Can-Am Defender HD10 PRO XT
2020 Can-Am Defender HD10 DPS
2020 Can-Am Defender HD10 XT
2020 Can-Am Defender HD10 XTP
2020 Can-Am Defender HD10 X mr
2020 Can-Am Defender HD10 XT Cab
2020 Can-Am Defender HD8
2020 Can-Am Defender HD8 DPS
2020 Can-Am Defender HD8 XT
2020 Can-Am Defender HD8 XT Cab
2020 Can-Am Defender HD5
2020 Can-Am Defender HD5 DPS
2020 Can-Am Defender MAX HD10 DPS
2020 Can-Am Defender MAX HD10 XT
2020 Can-Am Defender Max HD10 XT Cab
2020 Can-Am Defender MAX HD10 Lone Star
2020 Can-Am Defender Max HD10 X MR
2020 Can-Am Defender MAX HD8 DPS
2020 Can-Am Defender MAX HD8
2020 Can-Am Defender HD10 Mossy Oak Hunting Edition
2020 Can-Am Defender HD10 PRO XT
2020 Can-Am Defender HD10 PRO DPS
2019 Can-Am Defender HD10 XT Cab
2019 Can-Am Defender HD8 XT Cab
2019 Can-Am Defender HD10 DPS
2019 Can-Am Defender HD10 XT
2019 Can-Am Defender HD10 XTP
2019 Can-Am Defender HD10 X mr
2019 Can-Am Defender HD8
2019 Can-Am Defender HD8 DPS
2019 Can-Am Defender HD8 XT
2019 Can-Am Defender MAX HD10 DPS
2019 Can-Am Defender MAX HD10 XT
2019 Can-Am Defender Max HD10 XT Cab
2019 Can-Am Defender MAX HD10 Lone Star
2019 Can-Am Defender MAX HD8 DPS
2019 Can-Am Defender MAX HD8 XT
2019 Can-Am Defender MAX HD8
2019 Can-Am Defender Max HD10 X MR
2018 Can-Am Defender HD10
2018 Can-Am Defender HD10 DPS
2018 Can-Am Defender HD10 XT
2018 Can-Am Defender HD10 XT Cab
2018 Can-Am Defender HD8
2018 Can-Am Defender HD8 DPS
2018 Can-Am Defender HD8 XT
2018 Can-Am Defender MAX HD10 DPS
2018 Can-Am Defender MAX HD10 XT
2018 Can-Am Defender Max HD10 XT Cab
2018 Can-Am Defender MAX HD8 DPS
2018 Can-Am Defender MAX HD8 XT
2018 Can-Am Defender MAX HD8
2018 Can-Am Defender HD10 X mr
2018 Can-Am Defender HD10 XTP
2018 Can-Am Defender Max HD10 Lone Star
2017 Can-Am Defender HD10 XT Cab
2017 Can-Am Defender HD10
2017 Can-Am Defender HD10 DPS
2017 Can-Am Defender HD10 XT
2017 Can-Am Defender HD8
2017 Can-Am Defender HD8 DPS
2017 Can-Am Defender HD8 XT
2017 Can-Am Defender MAX HD10 DPS
2017 Can-Am Defender MAX HD10 XT
2017 Can-Am Defender MAX HD8 DPS
2017 Can-Am Defender MAX HD8 XT
2016 Can-Am Defender HD8
2016 Can-Am Defender HD10
2016 Can-Am Defender HD8 DPS
2016 Can-Am Defender HD10 DPS
2016 Can-Am Defender HD8 XT
2016 Can-Am Defender HD10 XT
2016 Can-Am Defender HD10 XT Cab

 WARNING: This product can expose you to chemicals including Chromium, which is known in the State of California to cause cancer and birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov
