Portal Gear Lift 8 Inch Can-Am Defender/Maverick Sport/Commander - 50% Dual Idler

Why Choose High Lifter 8" Dual Idler Portals?

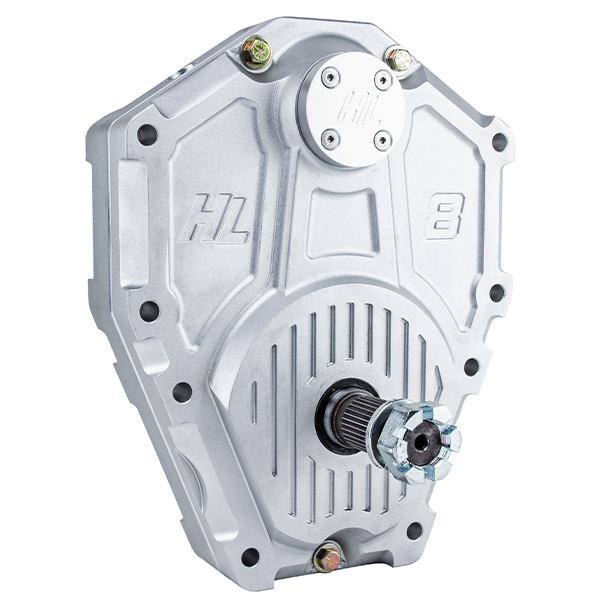

Forged Gear Boxes

The High Lifter Engineers chose forged gear boxed over billet because the process of forging eliminates the occurrence of porosity and cavities that can reduce strength in a part. With 8" portals, you want them to be strong; the tight grain structure in our gear boxes makes them mechanically stronger than the alternative! Take on any terrain because these boxes will handle the impact!

• These portal boxes are extremely robust and give you more worry-free miles than any other portal – a badass portal deserves a badass box!
• Strongest boxes on the market because forging produces a tougher piece of metal – It is what it is!
• Forging is stronger than both cast and billet aluminum which is used by the competitor.

Brake lines

• No need to replace factory brake lines, a brake line extension gives you an easier install and saves a lot of time!
  • Large advantage for Can-Am owners!

Gear Box Venting

• Customers asked for box venting, and we give you the option
• Our box design offers a plug for venting with an optional easy to install kit that will be available soon
• Vent kits allow an advantage of cooling which reduces early deterioration of the gaskets and seals

Gasket Material and Design

• High density Kevlar fiber gaskets plus no additional sealant is needed
• Gasket material is creep resistant plus oil and coolant resistant

Seals

• Two oil seals on the spindle shaft for 100% more sealing area
• Dual seals prevent water intrusion and oil leaks
• True triple seal on the input shaft which includes a wiper seal that provides a significant extra layer of protection

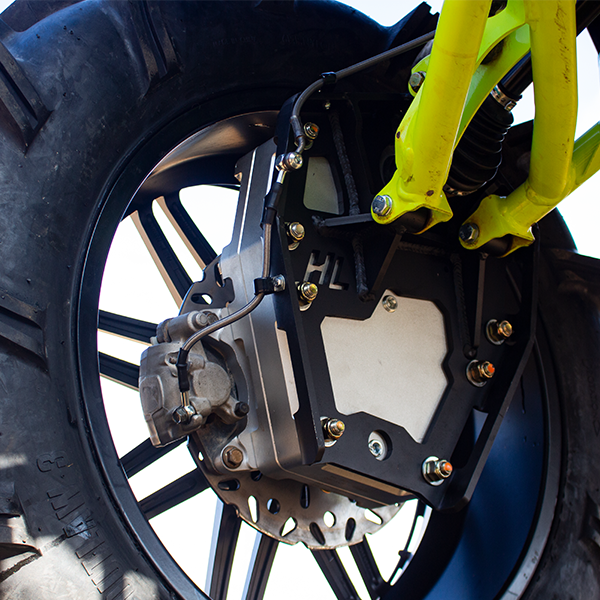

Backing Plate

• These are the strongest backing plates on the market
• 5/16" steel plate with bent flanges for strength and durability
• Welded gusset brackets and designed to factory off-set
• Works with all control arms that are built to factory hub specifications
• Backing plates have an offset or "CLOCKED" forward & rearward design so you can run BIG tires and not interfere with your clearance!

13" Rotor

• Precision ground stainless steel rotors (this is a big deal for brake performance)
• Access holes for ease of assembly and disassembly
• Slotted rotor allows for heat dissipation and cooling

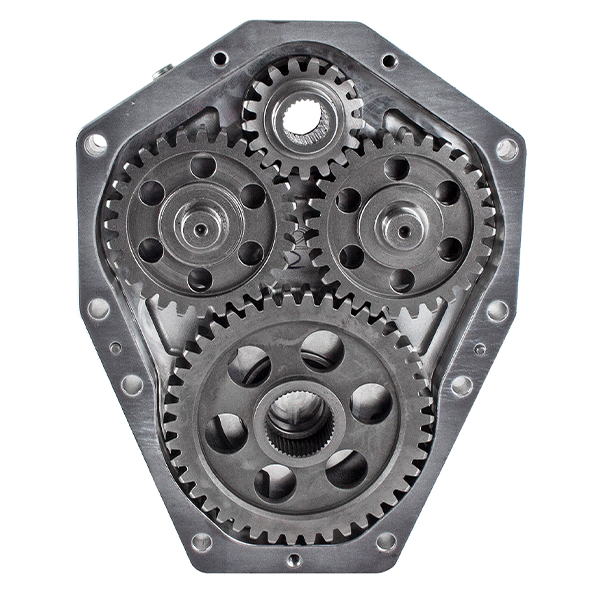

Gear Profile

• Alloy steel heat treating process increases overall internal and external strength
• CNC precision ground machining ensures excellent fitment and increased strength
• Controlled gear lapping for ease of installation and a quieter performance

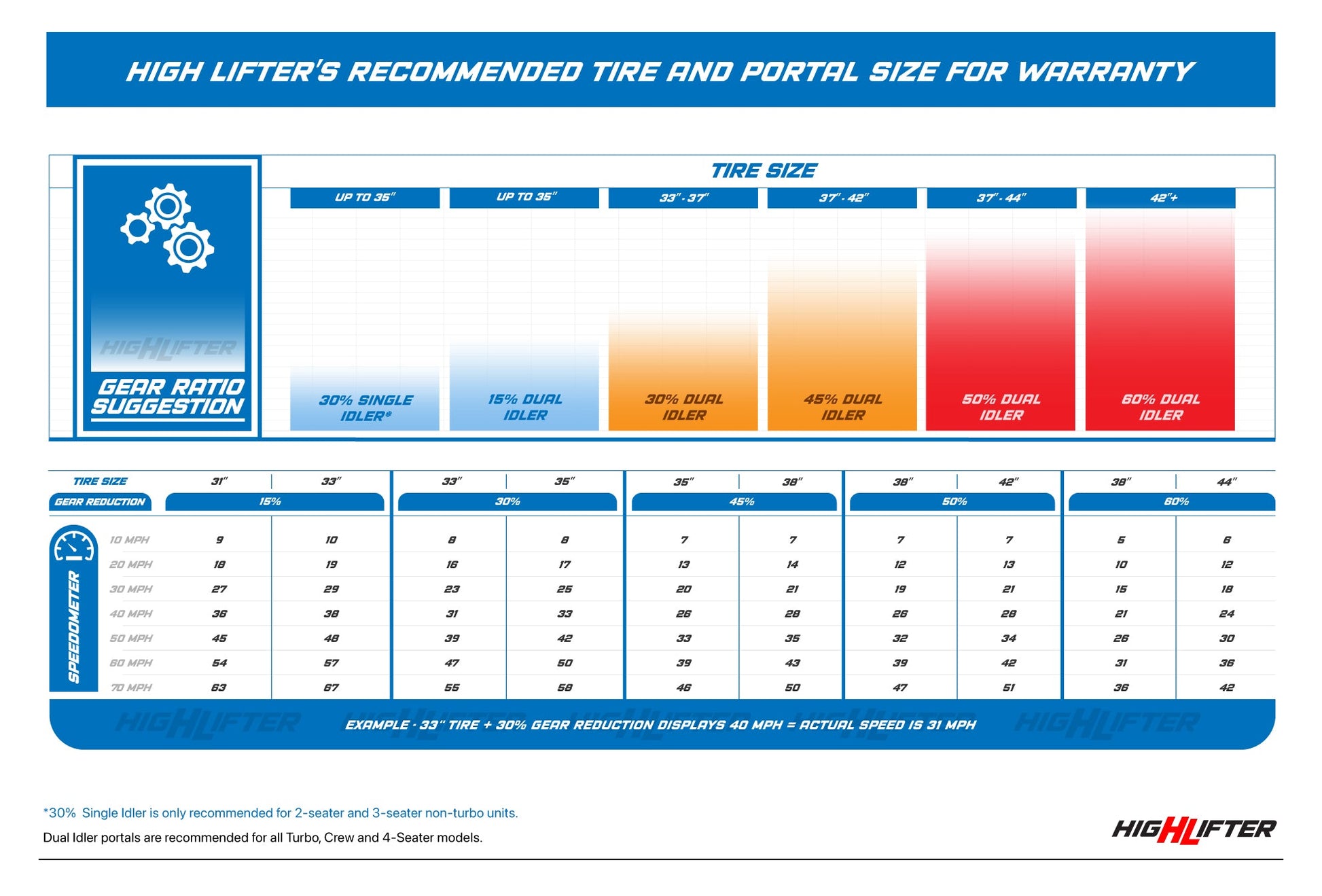

Notes: Minimum wheel size is 22"; however, we recommend running a 24" wheel when installing 8" portals.

Fits:

2025 Can-Am Defender HD9
2025 Can-Am Defender HD9 DPS
2025 Can-Am Defender HD9 XT
2025 Can-Am Defender HD9 DPS Cab
2025 Can-Am Defender MAX HD9
2025 Can-Am Defender MAX HD9 DPS
2025 Can-Am Defender MAX HD9 XT
2024 Can-Am Commander 1000R DPS
2024 Can-Am Commander 1000R XT
2024 Can-Am Commander 1000R X MR
2024 Can-Am Commander 1000R XT-P
2024 Can-Am Commander 700 DPS
2024 Can-Am Commander 700 XT
2024 Can-Am Commander Max 1000R DPS
2024 Can-Am Commander MAX 1000R XT
2024 Can-Am Commander MAX 700 XT
2024 Can-Am Defender HD10 Limited
2024 Can-Am Defender HD10 X mr
2024 Can-Am Defender HD10 X MR with Half Doors
2024 Can-Am Defender HD9
2024 Can-Am Defender HD9 DPS Cab
2024 Can-Am Defender HD9 DPS
2024 Can-Am Defender HD9 XT
2024 Can-Am Defender Max HD10 Limited
2024 Can-Am Defender MAX HD10 Lone Star
2024 Can-Am Defender MAX HD10 Lone Star CAB
2024 Can-Am Defender Max HD10 X MR
2024 Can-Am Defender Max HD10 X MR with Half Doors
2024 Can-Am Defender MAX HD10 XT
2024 Can-Am Defender MAX HD9
2024 Can-Am Defender MAX HD9 DPS
2024 Can-Am Defender MAX HD9 XT
2024 Can-Am Defender HD10 PRO DPS
2024 Can-Am Defender HD10 PRO Limited
2024 Can-Am Defender HD10 PRO XT
2024 Can-Am Maverick Sport 1000R DPS
2024 Can-Am Maverick Sport 1000R X mr
2024 Can-Am Maverick Sport 1000R X RC
2024 Can-Am Maverick Sport Max 1000R DPS
2024 Can-Am Defender HD10 DPS
2024 Can-Am Defender HD10 XT
2024 Can-Am Defender MAX HD10 DPS
2024 Can-Am Commander MAX 700 DPS
2024 Can-Am Commander MAX 1000R XT-P
2024 Can-Am Commander Max 1000R X MR
2023 Can-Am Commander 1000R X MR
2023 Can-Am Commander 1000R XT-P
2023 Can-Am Commander Max 1000R DPS
2023 Can-Am Commander MAX 1000R XT
2023 Can-Am Commander MAX 1000R XT-P
2023 Can-Am Defender HD10 CAB DPS Limited
2023 Can-Am Defender HD10 X mr
2023 Can-Am Defender HD10 X MR with Half Doors
2023 Can-Am Defender HD10 XT
2023 Can-Am Defender HD9
2023 Can-Am Defender HD9 DPS Cab
2023 Can-Am Defender HD9 DPS
2023 Can-Am Defender MAX HD9
2023 Can-Am Defender MAX HD9 DPS
2023 Can-Am Maverick Sport 1000R DPS
2023 Can-Am Maverick Sport 1000R X mr
2023 Can-Am Maverick Sport 1000R X RC
2023 Can-Am Maverick Sport 1000R X xc
2023 Can-Am Maverick Sport Max 1000R DPS
2023 Can-Am Commander 1000R DPS
2023 Can-Am Commander 1000R XT
2023 Can-Am Defender HD10 DPS
2023 Can-Am Defender HD10 Limited
2023 Can-Am Defender HD9 XT
2023 Can-Am Defender MAX HD9 XT
2022 Can-Am Commander 1000R DPS
2022 Can-Am Commander 1000R XT
2022 Can-Am Commander 1000R XT-P
2022 Can-Am Commander 1000R X MR
2022 Can-Am Commander Max 1000R DPS
2022 Can-Am Commander MAX 1000R XT
2022 Can-Am Commander MAX 1000R XT-P
2022 Can-Am Maverick Sport 1000
2022 Can-Am Maverick Sport 1000R DPS
2022 Can-Am Maverick Sport 1000R X xc
2022 Can-Am Maverick Sport 1000R X mr
2022 Can-Am Maverick Sport 1000R X RC
2022 Can-Am Maverick Sport MAX 1000R DPS
2022 Can-Am Defender HD7
2022 Can-Am Defender HD9
2022 Can-Am Defender HD7 DPS
2022 Can-Am Defender HD9 DPS
2022 Can-Am Defender HD10 DPS
2022 Can-Am Defender HD9 XT
2022 Can-Am Defender HD10 XT
2022 Can-Am Defender HD9 DPS Cab
2022 Can-Am Defender HD10 Limited
2022 Can-Am Defender HD10 X mr
2022 Can-Am Defender MAX HD7
2022 Can-Am Defender MAX HD9
2022 Can-Am Defender MAX HD9 DPS
2022 Can-Am Defender MAX HD10 DPS
2022 Can-Am Defender MAX HD9 XT
2022 Can-Am Defender MAX HD10 XT
2022 Can-Am Defender MAX HD10 Lone Star
2022 Can-Am Defender MAX HD10 Limited
2022 Can-Am Defender Max HD10 X MR
2021 Can-Am Maverick Sport 1000R DPS
2021 Can-Am Maverick Sport 1000
2021 Can-Am Maverick Sport 1000 DPS
2021 Can-Am Maverick Sport Max 1000R DPS
2021 Can-Am Maverick Sport 1000R X mr
2021 Can-Am Maverick Sport 1000R X RC
2021 Can-Am Maverick Sport 1000R X xc
2021 Can-Am Commander 1000R XT
2021 Can-Am Commander 1000R DPS
2021 Can-Am Commander 1000R XT-P
2021 Can-Am Commander Max 1000R XT
2021 Can-Am Commander Max 1000R DPS
2020 Can-Am Commander Max 1000R Limited
2020 Can-Am Commander Max 1000R XT
2020 Can-Am Maverick Sport 1000R DPS
2020 Can-Am Maverick Sport 1000
2020 Can-Am Maverick Sport 1000 DPS
2020 Can-Am Maverick Sport 1000R X RC
2020 Can-Am Maverick Sport Max 1000R DPS
2020 Can-Am Maverick Sport 1000R X xc
2020 Can-Am Maverick Sport 1000R X mr
2019 Can-Am Commander Max 1000R Limited
2019 Can-Am Commander Max 1000R XT
2019 Can-Am Maverick Sport 1000R DPS
2019 Can-Am Maverick Sport 1000 BASE
2019 Can-Am Maverick Sport 1000 DPS
2019 Can-Am Maverick Sport 1000R X RC
2019 Can-Am Maverick Sport Max 1000R DPS
2019 Can-Am Maverick Sport 1000R X mr
