Portal Gear Lift 8 Inch Can-Am - Defender/Maverick Sport/Commander - 60% Dual Idler

Why Choose High Lifter 8” Dual Idler Portals?

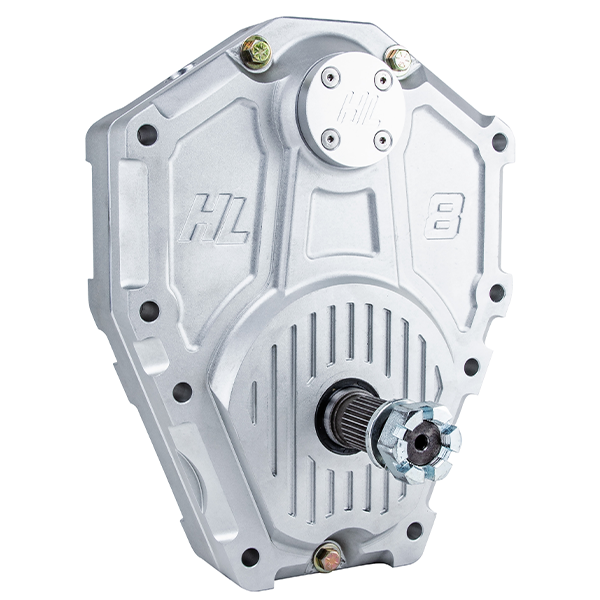

Forged Gear Boxes

The High Lifter Engineers chose forged gear boxed over billet because the process of forging eliminates the occurrence of porosity and cavities that can reduce strength in a part. With 8” portals, you want them to be strong; the tight grain structure in our gear boxes makes them mechanically stronger than the alternative! Take on any terrain because these boxes will handle the impact!

These portal boxes are extremely robust and give you more worry-free miles than any other portal – a badass portal deserves a badass box!
Strongest boxes on the market because forging produces a tougher piece of metal – It is what it is!
Forging is stronger than both cast and billet aluminum which is used by the competitor.
Brake lines

No need to replace factory brake lines, a brake line extension gives you an easier install and saves a lot of time!
Large advantage for Can-Am owners!
Gear Box Venting

Customers asked for box venting, and we give you the option
Our box design offers a plug for venting with an optional easy to install kit that will be available soon
Vent kits allow an advantage of cooling which reduces early deterioration of the gaskets and seals
Gasket Material and Design

High density Kevlar fiber gaskets plus no additional sealant is needed
Gasket material is creep resistant plus oil and coolant resistant
Seals

Two oil seals on the spindle shaft for 100% more sealing area
Dual seals prevent water intrusion and oil leaks
True triple seal on the input shaft which includes a wiper seal that provides a significant extra layer of protection

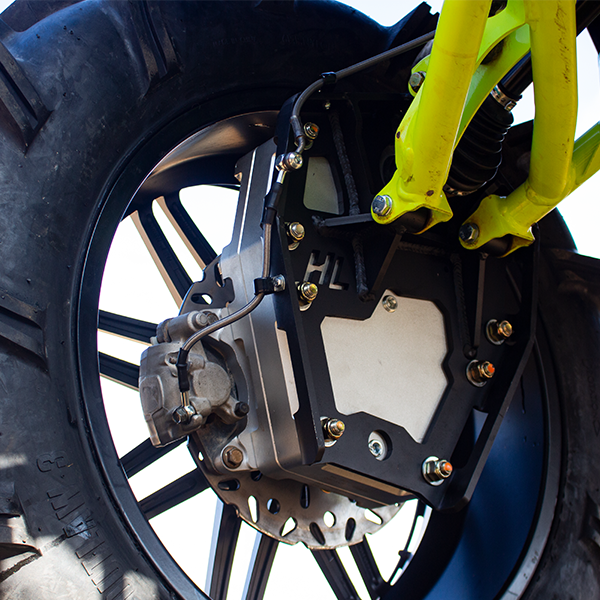

Backing Plate

These are the strongest backing plates on the market
5/16” steel plate with bent flanges for strength and durability
Welded gusset brackets and designed to factory off-set
Works with all control arms that are built to factory hub specifications
Backing plates have an offset or “CLOCKED” forward & rearward design so you can run BIG tires and not interfere with your clearance!
13” Rotor

Precision ground stainless steel rotors (this is a big deal for brake performance)
Access holes for ease of assembly and disassembly
Slotted rotor allows for heat dissipation and cooling

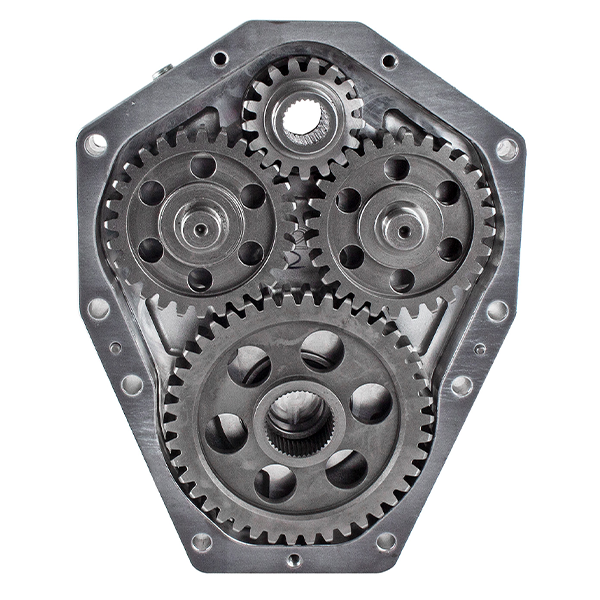

Gear Profile

Alloy steel heat treating process increases overall internal and external strength
CNC precision ground machining ensures excellent fitment and increased strength
Controlled gear lapping for ease of installation and a quieter performance

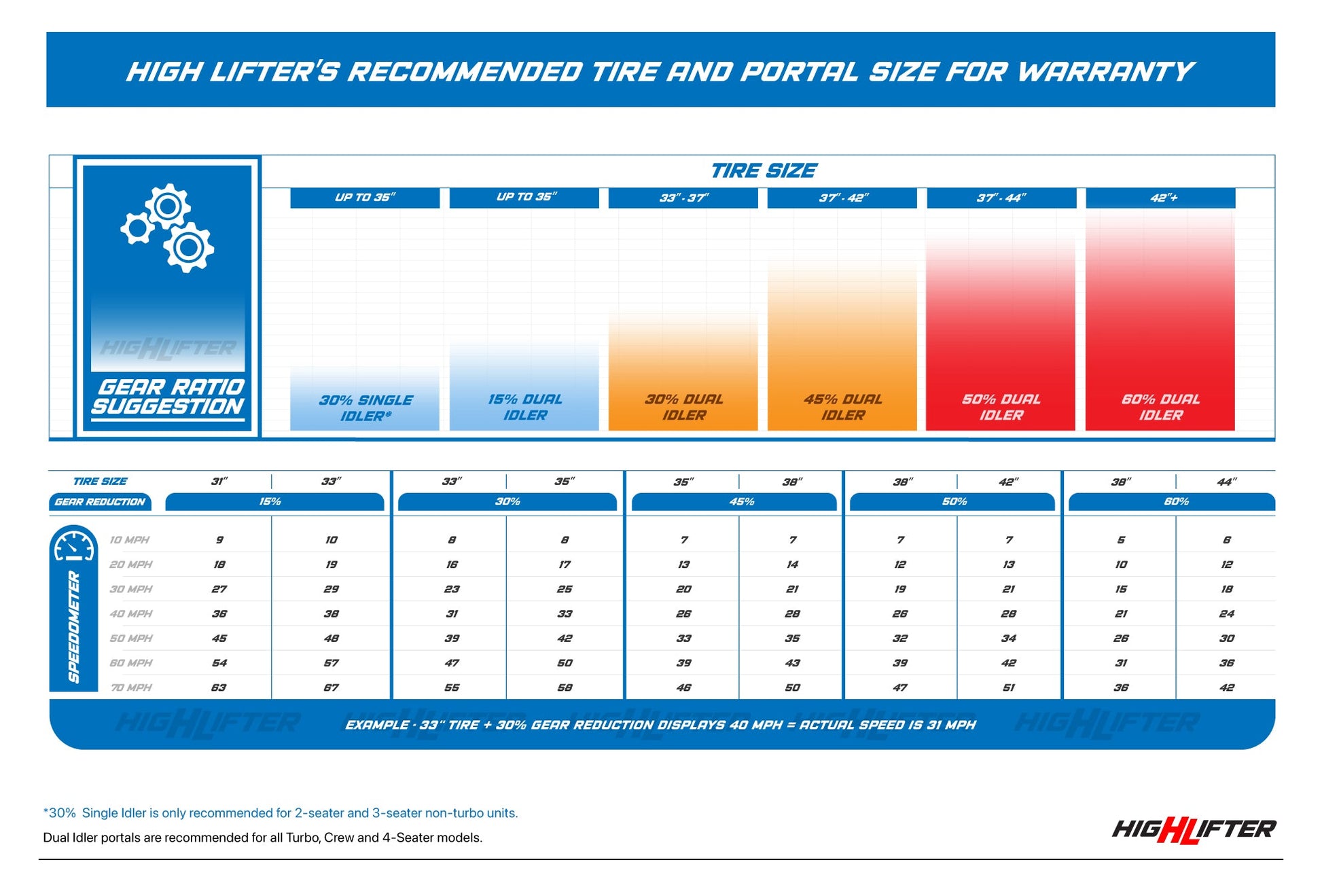

Notes: Minimum wheel size is 22"; however, we recommend running a 24" wheel when installing 8" portals.

2022 Can-Am Commander 1000R DPS
2022 Can-Am Commander 1000R XT
2022 Can-Am Commander 1000R XT-P
2022 Can-Am Commander 1000R XMR
2022 Can-Am Commander MAX 1000R DPS
2022 Can-Am Commander MAX 1000R XT
2022 Can-Am Commander MAX 1000R XT-P
2022 Can-Am Maverick Sport 1000
2022 Can-Am Maverick Sport 1000R DPS
2022 Can-Am Maverick Sport 1000R XXC
2022 Can-Am Maverick Sport 1000R XMR
2022 Can-Am Maverick Sport 1000R XRC
2022 Can-Am Maverick Sport MAX 1000R DPS
2022 Can-Am Defender HD7
2022 Can-Am Defender HD9
2022 Can-Am Defender HD7 DPS
2022 Can-Am Defender HD9 DPS
2022 Can-Am Defender HD10 DPS
2022 Can-Am Defender HD9 XT
2022 Can-Am Defender HD10 XT
2022 Can-Am Defender HD9 CAB DPS
2022 Can-Am Defender HD10 Limited
2022 Can-Am Defender HD10 XMR
2022 Can-Am Defender MAX HD7
2022 Can-Am Defender MAX HD9
2022 Can-Am Defender MAX HD9 DPS
2022 Can-Am Defender MAX HD10 DPS
2022 Can-Am Defender MAX HD9 XT
2022 Can-Am Defender MAX HD10 XT
2022 Can-Am Defender MAX HD10 Lone Star
2022 Can-Am Defender MAX HD10 Limited
2022 Can-Am Defender MAX HD10 XMR
2023 Can-Am Commander 1000R XMR
2023 Can-Am Commander 1000R XT-P
2023 Can-Am Commander MAX 1000R DPS
2023 Can-Am Commander MAX 1000R XT
2023 Can-Am Commander MAX 1000R XT-P
2023 Can-Am Defender HD10 CAB DPS Limited
2023 Can-Am Defender HD10 XMR
2023 Can-Am Defender HD10 XMR w/Doors
2023 Can-Am Defender HD10 XT
2023 Can-Am Defender HD9
2023 Can-Am Defender HD9 CAB DPS
2023 Can-Am Defender HD9 DPS
2023 Can-Am Defender MAX HD9
2023 Can-Am Defender MAX HD9 DPS
2023 Can-Am Maverick Sport 1000R DPS
2023 Can-Am Maverick Sport 1000R XMR
2023 Can-Am Maverick Sport 1000R XRC
2023 Can-Am Maverick Sport 1000R XXC
2023 Can-Am Maverick Sport MAX 1000R DPS
2023 Can-Am Commander 1000 DPS
2023 Can-Am Commander 1000 XT
2023 Can-Am Defender HD10 Cab XT
2023 Can-Am Defender HD10 DPS
2023 Can-Am Defender HD10 Limited
2023 Can-Am Defender HD9 XT
2023 Can-Am Defender MAX HD9 XT
2024 Can-Am Commander 1000 DPS
2024 Can-Am Commander 1000 XT
2024 Can-Am Commander 1000R XMR
2024 Can-Am Commander 1000R XT-P
2024 Can-Am Commander 700 DPS
2024 Can-Am Commander 700 XT
2024 Can-Am Commander MAX 1000R DPS
2024 Can-Am Commander MAX 1000R XT
2024 Can-Am Commander MAX 700 XT
2024 Can-Am Defender HD10 Limited
2024 Can-Am Defender HD10 XMR
2024 Can-Am Defender HD10 XMR w/Doors
2024 Can-Am Defender HD9
2024 Can-Am Defender HD9 CAB DPS
2024 Can-Am Defender HD9 DPS
2024 Can-Am Defender HD9 XT
2024 Can-Am Defender Max HD10 Limited
2024 Can-Am Defender MAX HD10 Lone Star
2024 Can-Am Defender MAX HD10 Lone Star CAB
2024 Can-Am Defender MAX HD10 XMR
2024 Can-Am Defender MAX HD10 XMR w/Doors
2024 Can-Am Defender MAX HD10 XT
2024 Can-Am Defender MAX HD9
2024 Can-Am Defender MAX HD9 DPS
2024 Can-Am Defender MAX HD9 XT
2024 Can-Am Defender PRO HD10 DPS
2024 Can-Am Defender PRO HD10 Limited
2024 Can-Am Defender PRO HD10 XT
2024 Can-Am Maverick Sport 1000R DPS
2024 Can-Am Maverick Sport 1000R XMR
2024 Can-Am Maverick Sport 1000R XRC
2024 Can-Am Maverick Sport MAX 1000R DPS
2024 Can-Am Defender HD10 DPS
2024 Can-Am Defender HD10 XT
2024 Can-Am Defender MAX HD10 DPS
2024 Can-Am Commander MAX 700 DPS
2024 Can-Am Commander MAX 1000R XT-P
2024 Can-Am Commander MAX 1000R XMR
2019 Can-Am Commander MAX 1000 LTD
2019 Can-Am Commander MAX 1000 XT
2019 Can-Am Maverick Sport 1000R DPS
2019 Can-Am Maverick Sport 1000 BASE
2019 Can-Am Maverick Sport 1000 DPS
2019 Can-Am Maverick Sport 1000R XRC
2019 Can-Am Maverick Sport 1000R MAX DPS
2019 Can-Am Maverick Sport 1000R XMR
2020 Can-Am Commander MAX 1000 LTD
2020 Can-Am Commander MAX 1000 XT
2020 Can-Am Maverick Sport 1000R DPS
2020 Can-Am Maverick Sport 1000 BASE
2020 Can-Am Maverick Sport 1000 DPS
2020 Can-Am Maverick Sport 1000R XRC
2020 Can-Am Maverick Sport 1000R MAX DPS
2020 Can-Am Maverick Sport 1000R XXC
2020 Can-Am Maverick Sport 1000R XMR
2021 Can-Am Maverick Sport 1000 BASE
2021 Can-Am Maverick Sport 1000R DPS
2021 Can-Am Maverick Sport 1000R MAX DPS
2021 Can-Am Maverick Sport 1000R XMR
2021 Can-Am Maverick Sport 1000R XRC
2021 Can-Am Maverick Sport 1000R XXC
2021 Can-Am Commander 1000 XT
2021 Can-Am Commander 1000 DPS
2021 Can-Am Commander 1000 XT-P
2021 Can-Am Commander 1000 MAX XT
