Portal Gear Lift 8 Inch Can-Am Maverick X3 - 60% Dual Idler

Why Choose High Lifter 8" Dual Idler Portals?

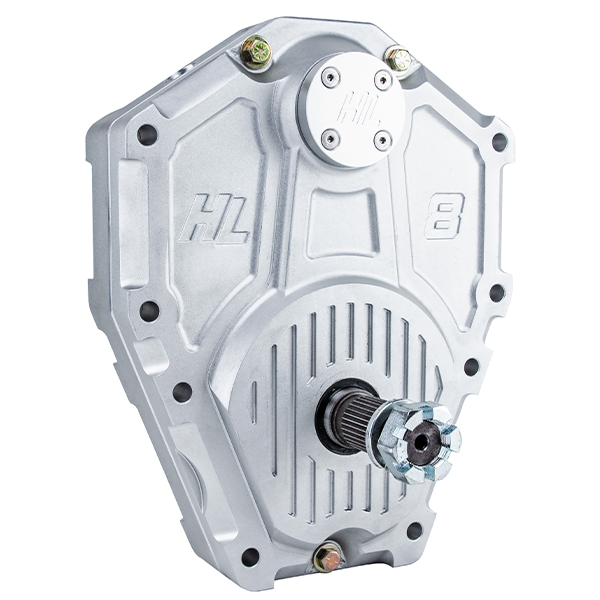

Forged Gear Boxes

The High Lifter Engineers chose forged gear boxed over billet because the process of forging eliminates the occurrence of porosity and cavities that can reduce strength in a part. With 8" portals, you want them to be strong; the tight grain structure in our gear boxes makes them mechanically stronger than the alternative! Take on any terrain because these boxes will handle the impact!

• These portal boxes are extremely robust and give you more worry-free miles than any other portal – a badass portal deserves a badass box!
• Strongest boxes on the market because forging produces a tougher piece of metal – It is what it is!
• Forging is stronger than both cast and billet aluminum which is used by the competitor.

Brake lines

• No need to replace factory brake lines, a brake line extension gives you an easier install and saves a lot of time!
  • Large advantage for Can-Am owners!

Gear Box Venting

• Customers asked for box venting, and we give you the option
• Our box design offers a plug for venting with an optional easy to install kit that will be available soon
• Vent kits allow an advantage of cooling which reduces early deterioration of the gaskets and seals

Gasket Material and Design

• High density Kevlar fiber gaskets plus no additional sealant is needed
• Gasket material is creep resistant plus oil and coolant resistant

Seals

• Two oil seals on the spindle shaft for 100% more sealing area
• Dual seals prevent water intrusion and oil leaks
• True triple seal on the input shaft which includes a wiper seal that provides a significant extra layer of protection

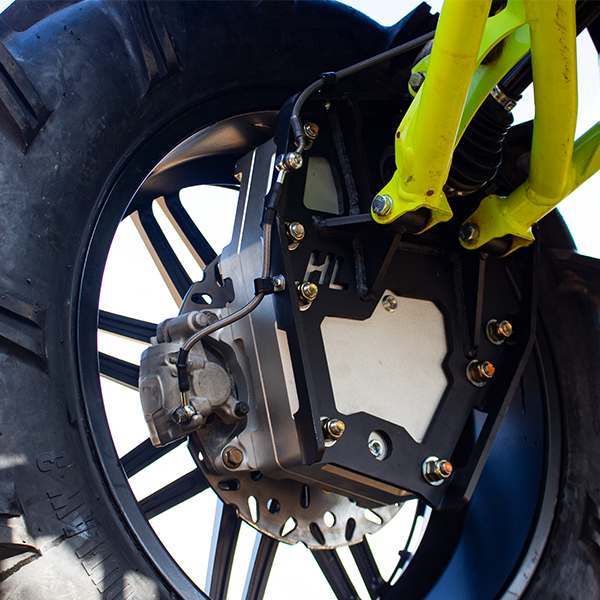

Backing Plate

• These are the strongest backing plates on the market
• 5/16" steel plate with bent flanges for strength and durability
• Welded gusset brackets and designed to factory off-set
• Works with all control arms that are built to factory hub specifications
• Backing plates have an offset or "CLOCKED" forward & rearward design so you can run BIG tires and not interfere with your clearance!

13" Rotor

• Precision ground stainless steel rotors (this is a big deal for brake performance)
• Access holes for ease of assembly and disassembly
• Slotted rotor allows for heat dissipation and cooling

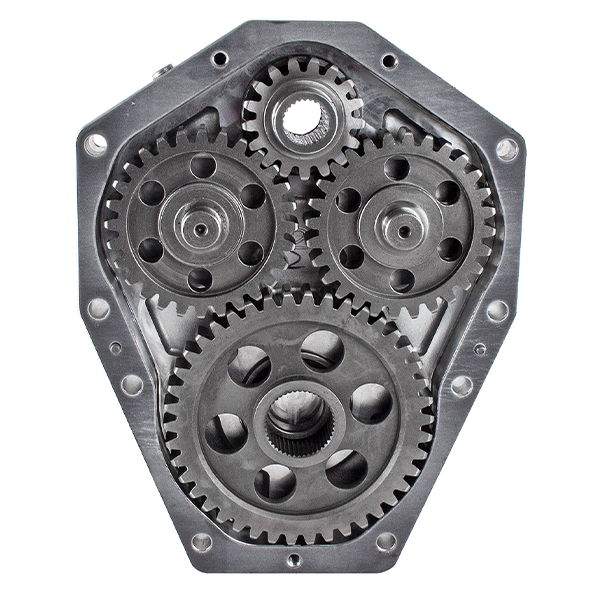

Gear Profile

• Alloy steel heat treating process increases overall internal and external strength
• CNC precision ground machining ensures excellent fitment and increased strength
• Controlled gear lapping for ease of installation and a quieter performance

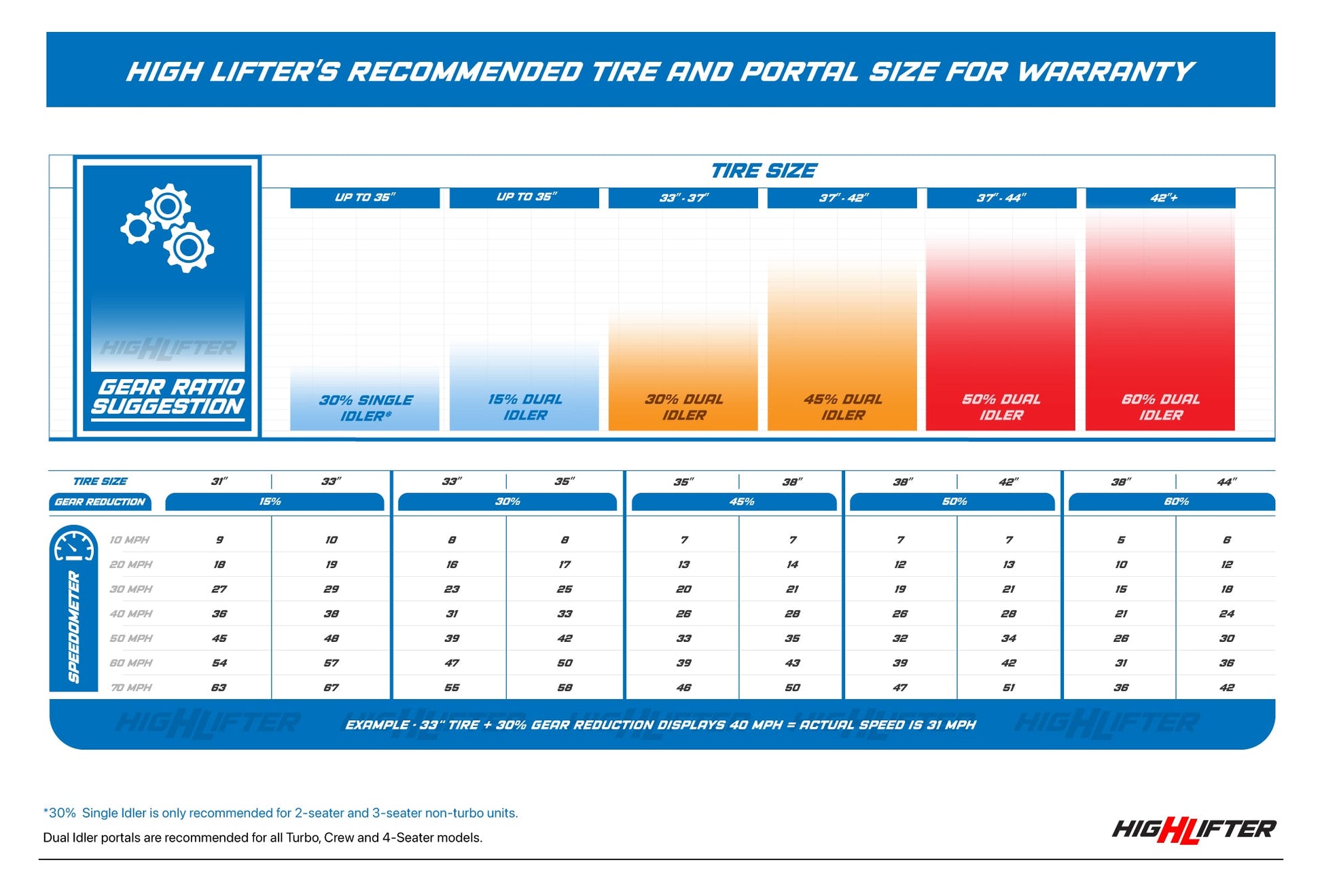

Notes: Minimum wheel size is 22"; however, we recommend running a 24" wheel when installing 8" portals.

Fits:

2024 Can-Am Maverick X3 ds Turbo 64
2024 Can-Am Maverick X3 ds Turbo RR 64
2024 Can-Am Maverick X3 rs Turbo 64
2024 Can-Am Maverick X3 rs Turbo 72
2024 Can-Am Maverick X3 rs Turbo RR 72
2024 Can-Am Maverick X3 X ds Turbo RR 64
2024 Can-Am Maverick X3 X mr Turbo RR 64
2024 Can-Am Maverick X3 X mr Turbo RR 72
2024 Can-Am Maverick X3 X rc Turbo RR 64
2024 Can-Am Maverick X3 X rc Turbo RR 72
2024 Can-Am Maverick X3 X rs Turbo RR 72
2023 Can-Am Maverick X3 ds Turbo 64
2023 Can-Am Maverick X3 ds Turbo RR 64
2023 Can-Am Maverick X3 Max ds Turbo 64
2023 Can-Am Maverick X3 Max ds Turbo RR 64
2023 Can-Am Maverick X3 Max rs Turbo RR 72
2023 Can-Am Maverick X3 Max X ds Turbo RR 64
2023 Can-Am Maverick X3 Max X mr Turbo RR 72
2023 Can-Am Maverick X3 Max X rs Turbo RR 72
2023 Can-Am Maverick X3 Max X rs Turbo RR Smart-Shox
2023 Can-Am Maverick X3 rs Turbo RR 72
2023 Can-Am Maverick X3 X ds Turbo RR 64
2023 Can-Am Maverick X3 X mr Turbo RR 64
2023 Can-Am Maverick X3 X mr Turbo RR 72
2023 Can-Am Maverick X3 X rc Turbo RR 64
2023 Can-Am Maverick X3 X rc Turbo RR 72
2023 Can-Am Maverick X3 X rs Turbo RR 72
2023 Can-Am Maverick X3 X rs Turbo RR Smart-Shox 72
2022 Can-Am Maverick X3 X rs Turbo RR Smart-Shox 72
2022 Can-Am Maverick X3 Max X rs Turbo RR Smart-Shox
2022 Can-Am Maverick X3 ds Turbo 64
2022 Can-Am Maverick X3 ds Turbo RR 64
2022 Can-Am Maverick X3 X ds Turbo RR 64
2022 Can-Am Maverick X3 rs Turbo RR 72
2022 Can-Am Maverick X3 X rs Turbo RR 72
2022 Can-Am Maverick X3 X rc Turbo RR 64
2022 Can-Am Maverick X3 X rc Turbo RR 72
2022 Can-Am Maverick X3 X mr Turbo RR 64
2022 Can-Am Maverick X3 X mr Turbo RR 72
2022 Can-Am Maverick X3 Max ds Turbo 64
2022 Can-Am Maverick X3 Max ds Turbo RR 64
2022 Can-Am Maverick X3 Max X ds Turbo RR 64
2022 Can-Am Maverick X3 Max rs Turbo RR 72
2022 Can-Am Maverick X3 Max X rs Turbo RR 72
2022 Can-Am Maverick X3 Max X mr Turbo RR 72
2021 Can-Am Maverick X3 ds Turbo
2021 Can-Am Maverick X3 X rc Turbo
2021 Can-Am Maverick X3 X mr Turbo
2021 Can-Am Maverick X3 ds Turbo R
2021 Can-Am Maverick X3 rs Turbo R
2021 Can-Am Maverick X3 X ds Turbo RR
2021 Can-Am Maverick X3 X rs Turbo RR
2021 Can-Am Maverick X3 X rs Turbo RR Smart-Shox
2021 Can-Am Maverick X3 X mr Turbo RR
2021 Can-Am Maverick X3 X rc Turbo RR
2021 Can-Am Maverick X3 Max ds Turbo
2021 Can-Am Maverick X3 Max ds Turbo R
2021 Can-Am Maverick X3 Max rs Turbo R
2021 Can-Am Maverick X3 Max X ds Turbo RR
2021 Can-Am Maverick X3 Max X rs Turbo RR
2021 Can-Am Maverick X3 Max X rs Turbo RR Smart-Shox
2021 Can-Am Maverick X3 Max X mr Turbo RR
2020 Can-Am Maverick X3 Turbo
2020 Can-Am Maverick X3 X rc Turbo
2020 Can-Am Maverick X3 X mr Turbo
2020 Can-Am Maverick X3 Max Turbo
2020 Can-Am Maverick X3 X ds Turbo R
2020 Can-Am Maverick X3 X rs Turbo R
2020 Can-Am Maverick X3 Max X ds Turbo R
2020 Can-Am Maverick X3 Max X rs Turbo R
2020 Can-Am Maverick X3 X ds Turbo RR
2020 Can-Am Maverick X3 X rs Turbo RR
2020 Can-Am Maverick X3 X rc Turbo RR
2020 Can-Am Maverick X3 X mr Turbo RR
2020 Can-Am Maverick X3 Max X ds Turbo RR
2020 Can-Am Maverick X3 Max X rs Turbo RR
2020 Can-Am Maverick X3 Max X mr Turbo RR
2019 Can-Am Commander Max 1000R Limited
2019 Can-Am Commander Max 1000R XT
2019 Can-Am Maverick Sport 1000R DPS
2019 Can-Am Maverick Sport 1000 BASE
2019 Can-Am Maverick X3 Turbo
2019 Can-Am Maverick X3 X rc Turbo
2019 Can-Am Maverick X3 X mr Turbo
2019 Can-Am Maverick X3 Max Turbo
2019 Can-Am Maverick X3 Turbo R
2019 Can-Am Maverick X3 X ds Turbo R
2019 Can-Am Maverick X3 X mr Turbo R
2019 Can-Am Maverick X3 X rc Turbo R
2019 Can-Am Maverick X3 X rs Turbo R
2019 Can-Am Maverick X3 Max Turbo R
2019 Can-Am Maverick X3 Max X ds Turbo R
2019 Can-Am Maverick X3 Max X rs Turbo R
2019 Can-Am Maverick Sport 1000 DPS
2019 Can-Am Maverick Sport 1000R X RC
2019 Can-Am Maverick Sport Max 1000R DPS
2019 Can-Am Maverick Sport 1000R X mr
2018 Can-Am Maverick X3 Turbo
2018 Can-Am Maverick X3 Turbo R
2018 Can-Am Maverick X3 X rs Turbo R
2018 Can-Am Maverick X3 Max Turbo
2018 Can-Am Maverick X3 Max Turbo R
2018 Can-Am Maverick X3 Max X ds Turbo R
2018 Can-Am Maverick X3 Max X rs Turbo R
2018 Can-Am Maverick X3 X rc Turbo R
2018 Can-Am Maverick X3 X rc Turbo
2018 Can-Am Maverick X3 X mr Turbo
2018 Can-Am Maverick X3 X mr Turbo R
2018 Can-Am Maverick X3 900 HO
2017 Can-Am Maverick X3 Turbo R
2017 Can-Am Maverick X3 X ds Turbo R
2017 Can-Am Maverick X3 X rs Turbo R
2017 Can-Am Maverick X3 Max Turbo R
2017 Can-Am Maverick X3 Max X ds Turbo R
2017 Can-Am Maverick X3 Max X rs Turbo R

 Warning: This product can expose you to chemicals including Chromium, which is known in the State of California to cause cancer and birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov
