Portal Gear Lift 8 Inch Polaris RZR Turbo - 50% Dual Idler

Why Choose High Lifter 8” Dual Idler Portals?

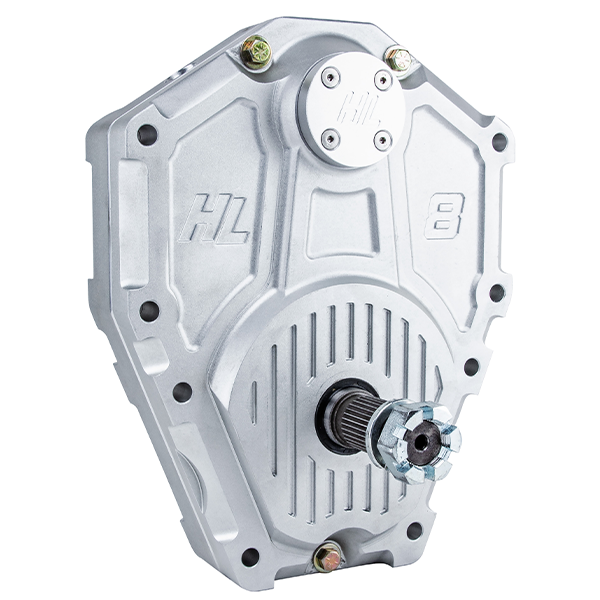

Forged Gear Boxes

The High Lifter Engineers chose forged gear boxed over billet because the process of forging eliminates the occurrence of porosity and cavities that can reduce strength in a part. With 8” portals, you want them to be strong; the tight grain structure in our gear boxes makes them mechanically stronger than the alternative! Take on any terrain because these boxes will handle the impact!

These portal boxes are extremely robust and give you more worry-free miles than any other portal – a badass portal deserves a badass box!
Strongest boxes on the market because forging produces a tougher piece of metal – It is what it is!
Forging is stronger than both cast and billet aluminum which is used by the competitor.
Brake lines

No need to replace factory brake lines, a brake line extension gives you an easier install and saves a lot of time!
Large advantage for Can-Am owners!
Gear Box Venting

Customers asked for box venting, and we give you the option
Our box design offers a plug for venting with an optional easy to install kit that will be available soon
Vent kits allow an advantage of cooling which reduces early deterioration of the gaskets and seals
Gasket Material and Design

High density Kevlar fiber gaskets plus no additional sealant is needed
Gasket material is creep resistant plus oil and coolant resistant
Seals

Two oil seals on the spindle shaft for 100% more sealing area
Dual seals prevent water intrusion and oil leaks
True triple seal on the input shaft which includes a wiper seal that provides a significant extra layer of protection
Backing Plate

These are the strongest backing plates on the market
5/16” steel plate with bent flanges for strength and durability
Welded gusset brackets and designed to factory off-set
Works with all control arms that are built to factory hub specifications
Backing plates have an offset or “CLOCKED” forward & rearward design so you can run BIG tires and not interfere with your clearance!
13” Rotor

Precision ground stainless steel rotors (this is a big deal for brake performance)
Access holes for ease of assembly and disassembly
Slotted rotor allows for heat dissipation and cooling

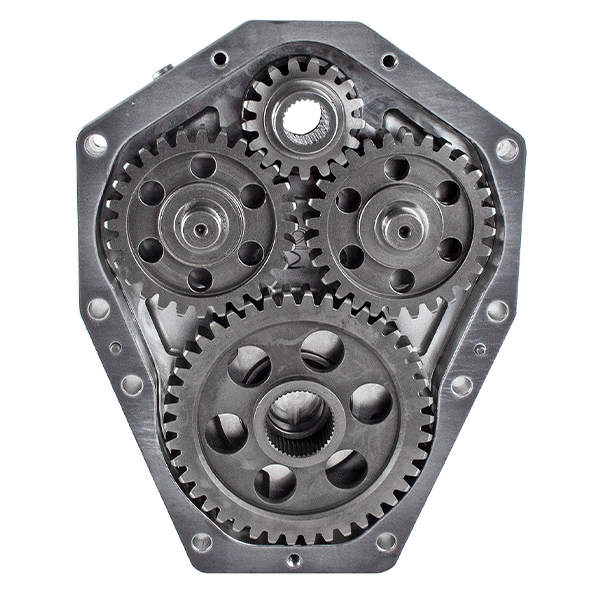

Gear Profile

Alloy steel heat treating process increases overall internal and external strength
CNC precision ground machining ensures excellent fitment and increased strength
Controlled gear lapping for ease of installation and a quieter performance

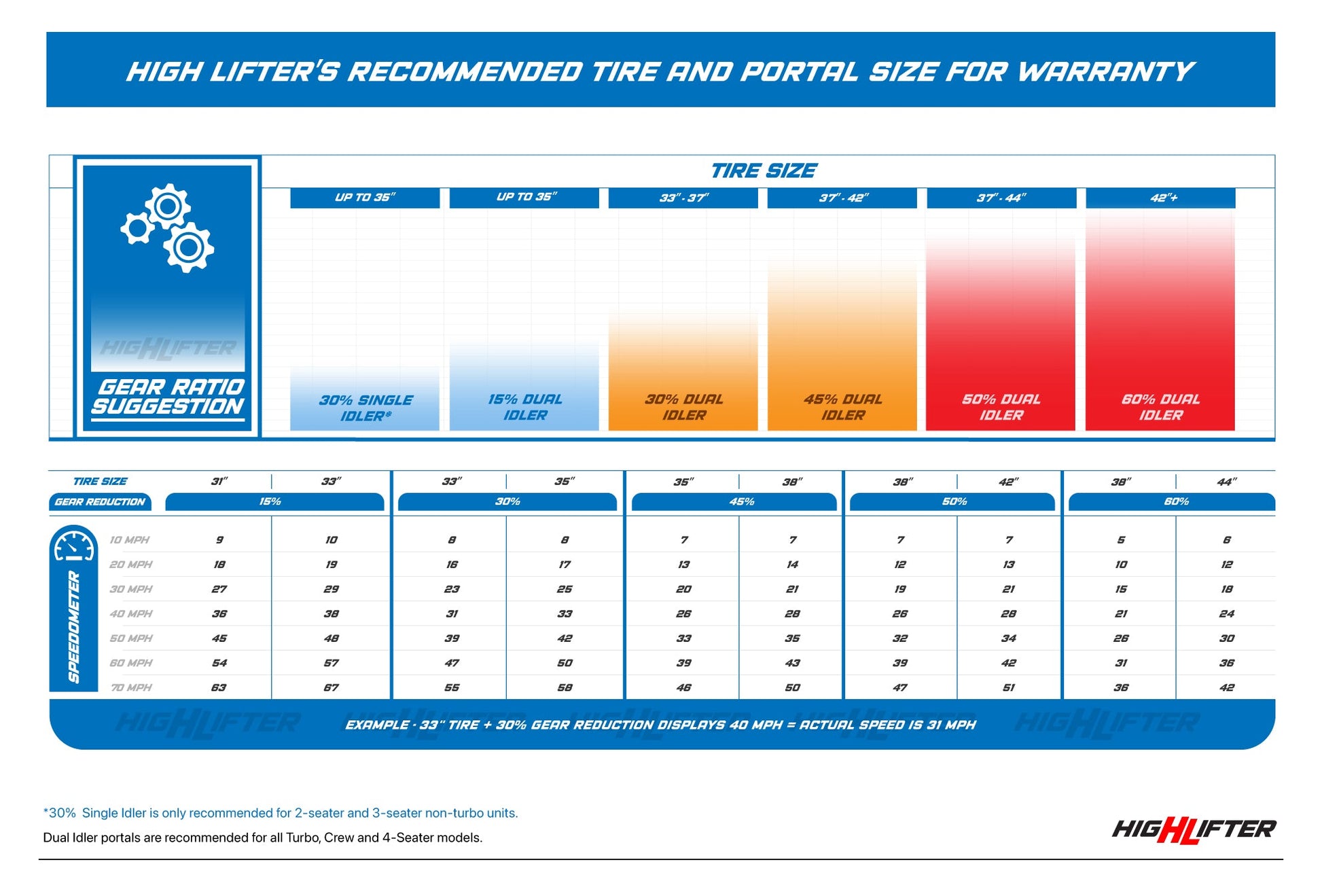

Notes: Minimum wheel size is 22"; however, we recommend running a 24" wheel when installing 8" portals. 2016 Polaris RZR TURBO XP EPS
2016 Polaris RZR TURBO 4 XP EPS
2017 Polaris RZR TURBO XP EPS
2017 Polaris RZR TURBO 4 XP EPS
2018 Polaris RZR TURBO XP DYNAMIX Edition
2018 Polaris RZR TURBO XP EPS
2018 Polaris RZR TURBO XP 4 EPS
2018 Polaris RZR TURBO XP FOX Edition
2018 Polaris RZR TURBO XP 4 FOX Edition
2019 Polaris RZR TURBO XP EPS
2019 Polaris RZR TURBO XP LE
2019 Polaris RZR TURBO XP DYNAMIX Edition
2019 Polaris RZR TURBO XP 4 EPS
2019 Polaris RZR TURBO XP 4 LE
2019 Polaris RZR TURBO XP 4 DYNAMIX Edition
2020 Polaris RZR TURBO XP
2020 Polaris RZR TURBO XP 4
2021 Polaris RZR Turbo XP
2021 Polaris RZR Turbo XP 4 Warning Warning: This product can expose you to chemicals including Chromium, which is known in the State of California to cause cancer and birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov
